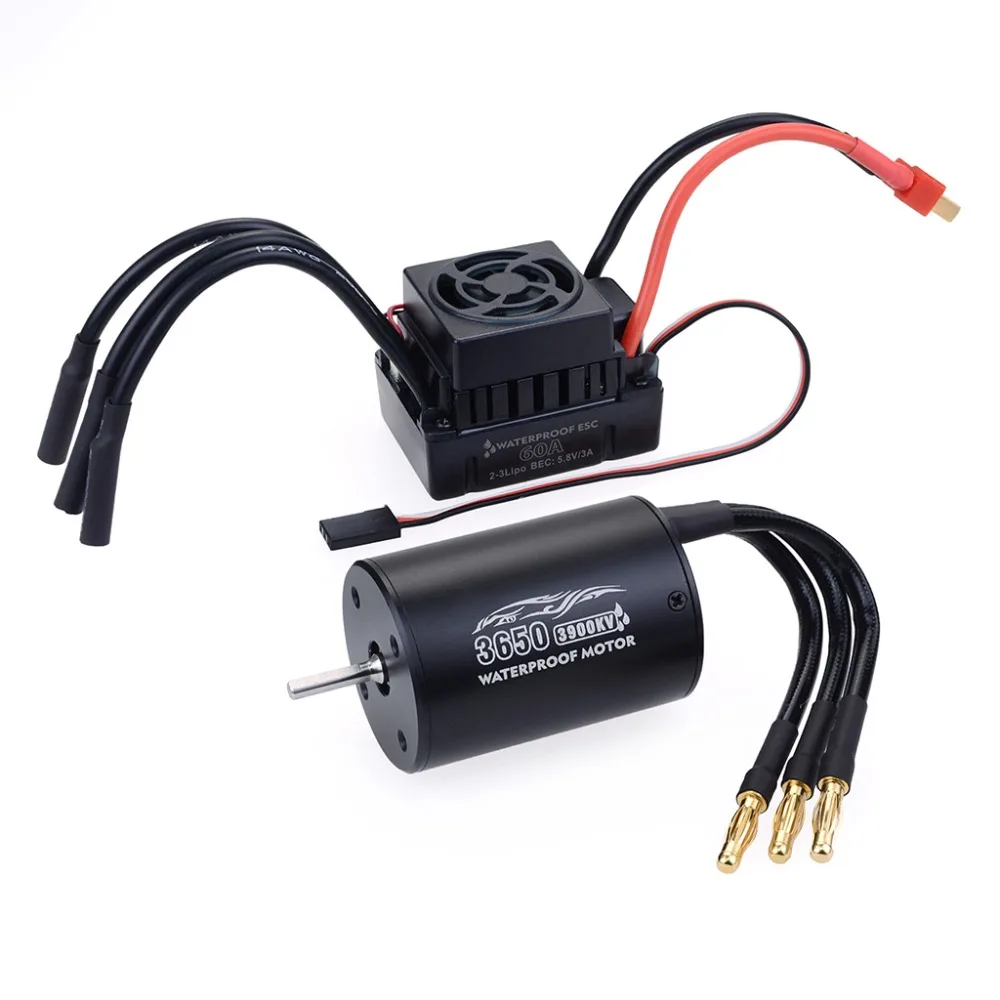

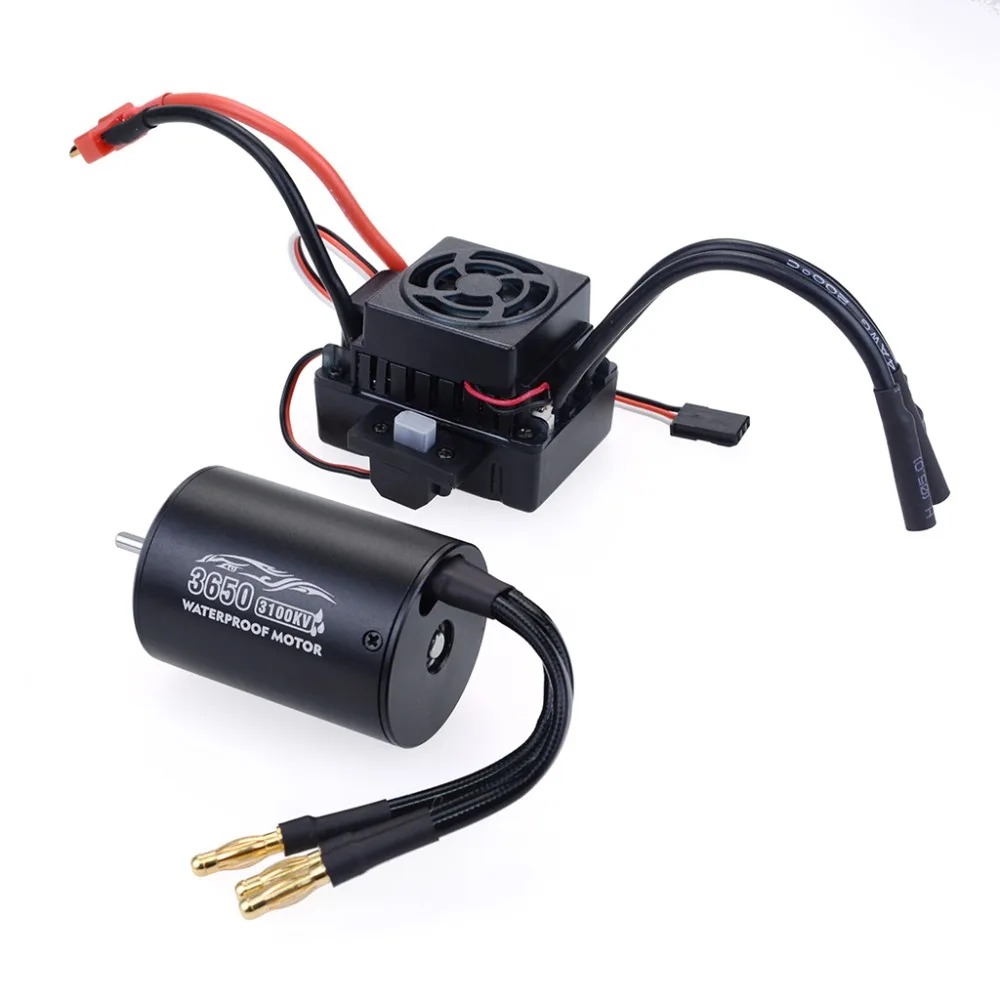

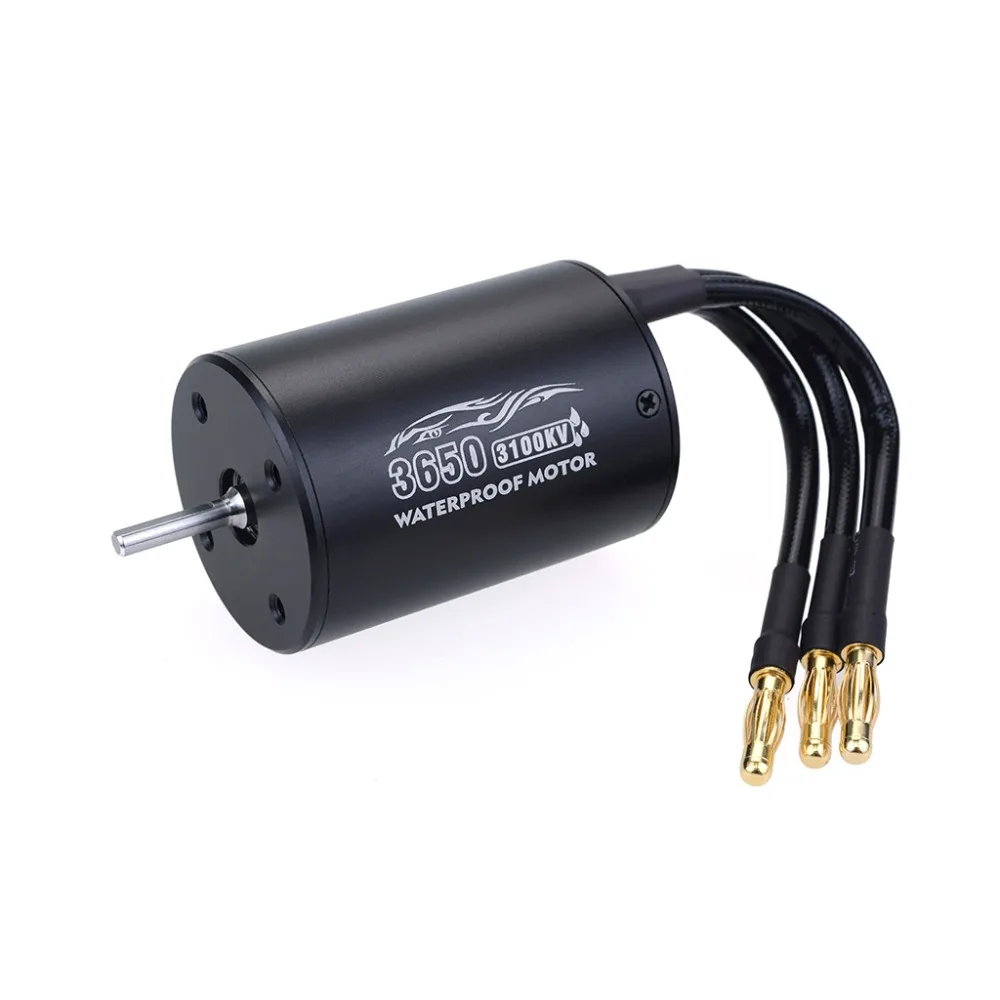

Surpass Hobby Waterproof 3650 Brushless Motor (2300Kv/3100Kv/3900Kv) + 60A ESC & Programming Card Kit for 1/10 RC Cars and Trucks

Description

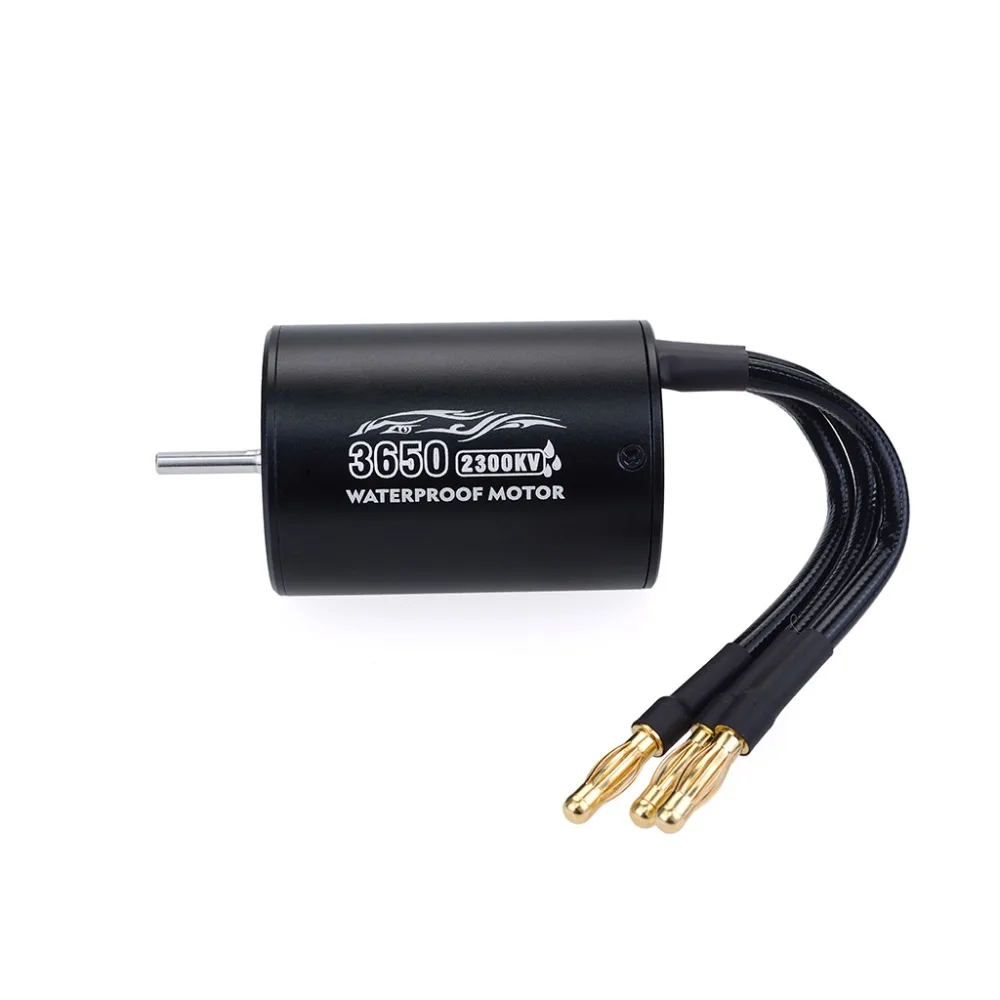

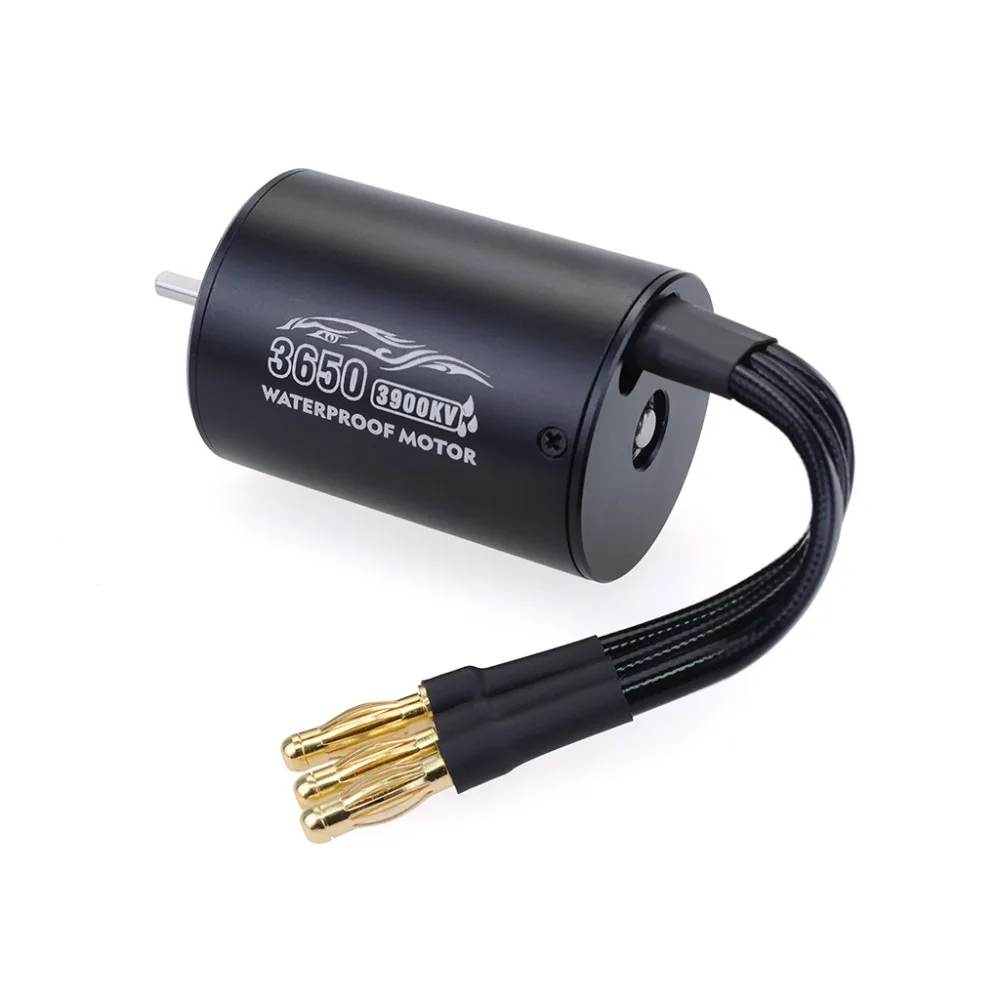

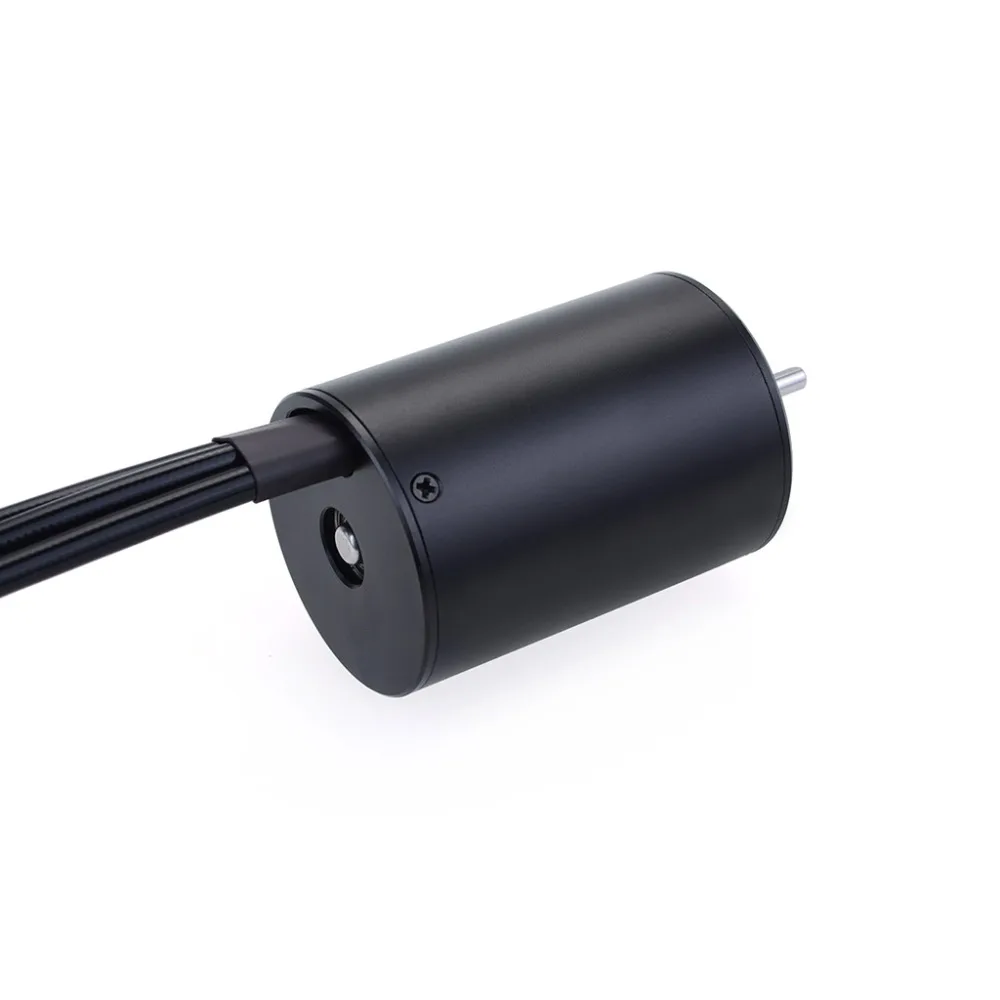

4 Pole 12 Slot Hi-torque Motor Design  CNC Machined 6061 T6 Billet Aluminum Heatsink Can  High Purity Copper Windings Maximizes Efficiency  High RPM ABEC5 Oversized Bearings  Universal fit,fits all 1/10 brushless cars-multi-mounting system for M3 screws  Precision balanced rotor,smoothness for best reliability and maximum RPM  Stator – Super Thin (0.35mm) Laminations  Removable/Replaceable Rotor  Precision Engineered for Maximum Energy Conversion    Motor Specifications： 3650 2300KV Motor Watts: 900W Max voltage: <22V Max Amps: 41A KV(RPM/Volt): 2300KV Max RPM: 50000 Diameter: 36mm Length: 50mm Shaft length: 15mm Shaft diameter: 3.175mm Plug type: 4mm golden banana plug   3650 3100KV Motor Watts: 900W Max voltage: <16V Max Amps: 56A KV(RPM/Volt): 3100KV Max RPM: 50000 Diameter: 36mm Length: 50mm Shaft length: 15mm Shaft diameter: 3.175mm Plug type: 4mm golden banana plug   3650 3900KV Motor Watts: 900W Max voltage: <13V Max Amps: 69A KV(RPM/Volt): 3900KV Max RPM: 50000 Diameter: 36mm Length: 50mm Shaft length: 15mm Shaft diameter: 3.175mm Plug type: 4mm golden banana plug   60A ESC Specifications: Item name: waterproof ESC Continue current: 60A Burst current: 360A Battery: 2-3S Li-Po / 4-9S Ni-Mh Ni-Cd BEC output: 5.8V / 3A Power supply plugs: T plug male Motor plugs: 4mm banana plug female Dimension: 51.5 * 38.5 * 38.5mm (without cables)
