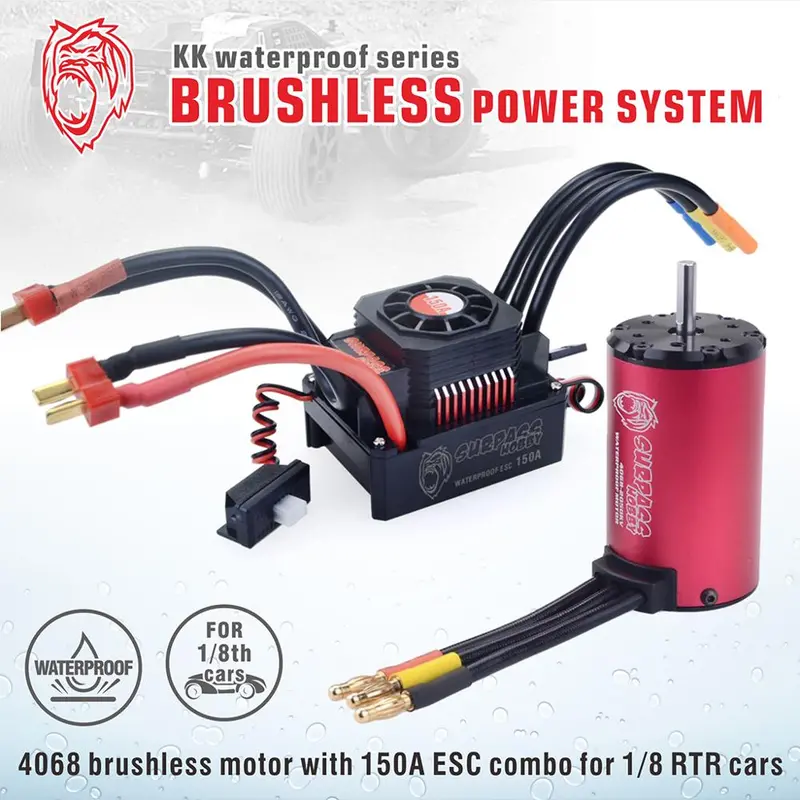

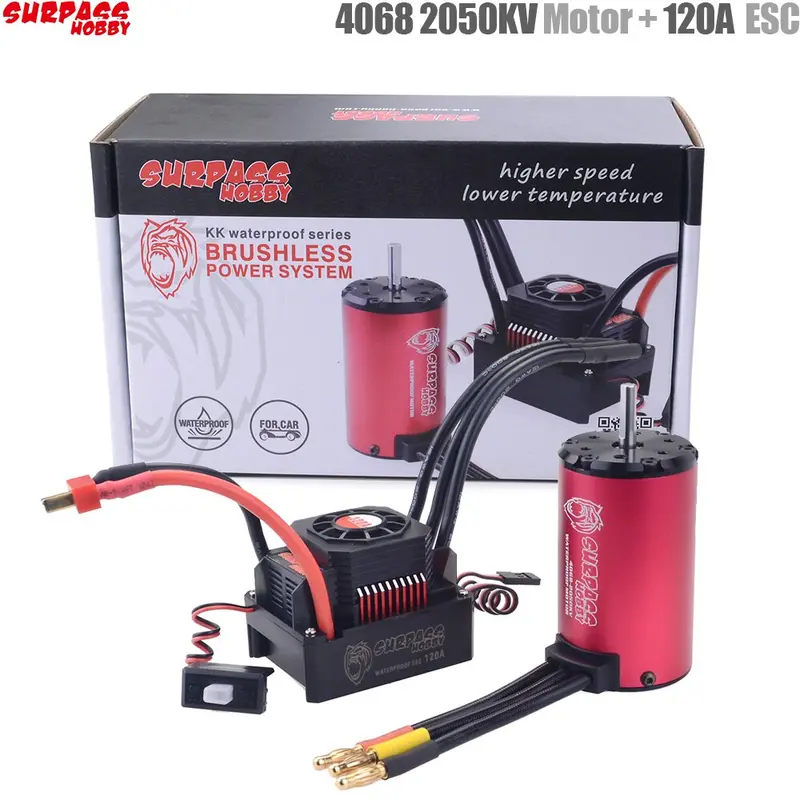

Surpass Hobby KK Waterproof Brushless Motor & ESC Combo – 4068 Motor (2050/2650KV) + 120A/150A ESC for 1/8 Scale RC Drift Cars

Description

4 Pole 12 Slot Hi-torque Motor Design High Quality: CNC Machined 6061 T6 Billet Aluminum Heatsink Can, High Purity Copper Windings Maximizes Efficiency, High RPM ABEC5 Oversized Bearings Universal fit, for all 1:8 2S, 3S, 4S RC car Precision balanced rotor,smoothness for best reliability and maximum RPM Stator – Super Thin (0.35mm) Laminations   Specifications: Brand: SURPASSHOBBY Series: KK Name: 4068 RC Motor KV(RPM/Volt): 1400KV 1700KV 1900KV 2050KV 2650KV Optional Watt: 2200 Max RPM: 50000 Max voltage: <21V Max amps: 105A Rotor poles: 4 Diameter: 39.5mm Length: 68mm Shaft: 5.0mm Shaft length: 18mm Connector: 4.0mm gold Weight:310g   ESC DECLARATION: This is Electronic Speed Controller (ESC) for car. High power system for RC model is very dangerous, so please read this manual carefully.  Since we can’t control over the correct use, installation, application, or maintenance of our products, we’veno liability shall be assumed nor accepted for any damages,  losses or costs resulting from the use of the product. Any claimsarising from the operating, failure of malfunctioning etc. will be denied.  We assume no liability for personal injury,consequential damages resulting from our product or our workmanship.   ESC Features: 1. Water- proof and dust-proof for all-weather races; (Note: please uninstall the cooling fan before using this ESC in water;Clean and dry it soon after the use for avoiding the connectors get rusty.) 2. Specially designed for RC car with excellent start-up, acceleration and linearity features. 3. Compatible with sensorless brushless motor. 4. The strong resistant current capability, excellent heat dissipation. 5. Multiple protection features: Low voltage cut-off protection for litium or nickel battery /Over-heat protectionThrote signal loss protection / Motor blocked protection/ 6. Easily programmed and compatible with pocket-sized program card.   ESC Specification: Brand: SURPASSHOBBY  Name: KK 120A ESC Cont.Current/Burst Current: 120A/600A Motor Type: Sensorless Brushless Motor for 4S Lipo or 12 cells NiMH :                     1. on-road: 40XX-Size or smaller motor with the KV<3000KV                     2. off-road/Buggy/Monster: 40XX-size or smaller motor with the KV <2500KV for 6S Lipo or 18 cells NiMH :                     1. on-road: 40XX-Size or smaller motor with the KV<2500KV                     2. off-road/Buggy/Monster: 40XX-size or smaller motor with the KV <2000KV   Resistance: 0.00035ohm Battery: 3-6S Lipo/9-18Cells NiMH BEC Output: 6.1V/3A (Switch mode) Dimensions/Weight: 160x100x62mm/135g
