Description
Description: Features:

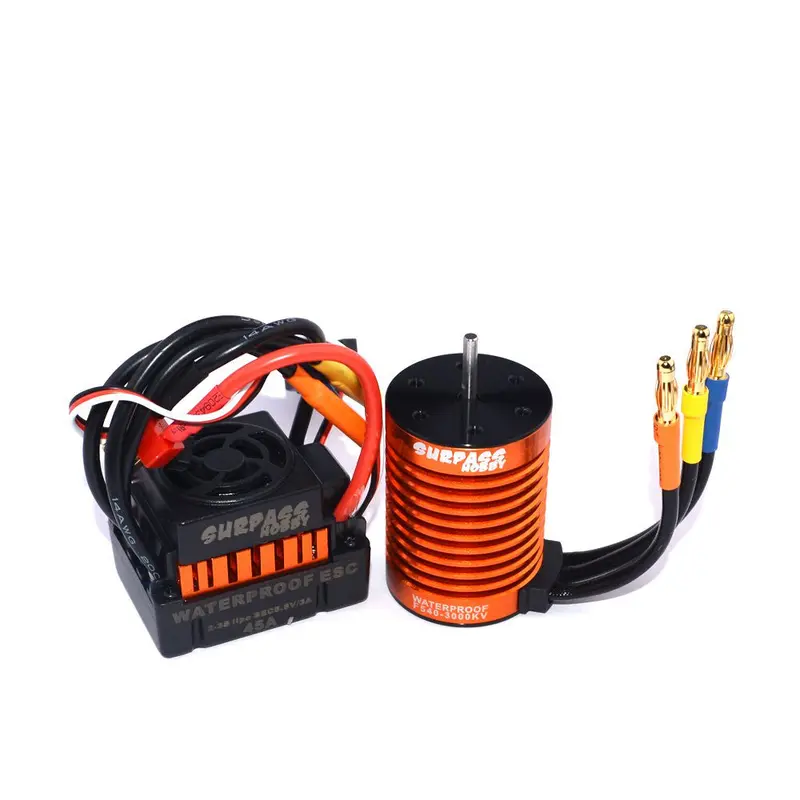

4 pole 12 slot hi-torque motor design CNC Machinced 6061 Billet Aluminum Heatsink Can High purity copper windings maximizes efficiency High RPM ABEC5 Oversized Bearings Universal fit,fits all 1/10 brushless cars-multi-mounting system for M3 screws Precision balanced rotor,smoothness for best reliability and maximum RPM Stator -Super Thin(0.35mm) Laminations Removable/Replaceable Rotor Precision engineered for maximum energy conversion Motor Specifications: Material: Metal Main Color: Gold Recommend Model: RC Model 1/10 Car KV(RPM/Volt): 3000KV Max RPM: 50000 Watts: 820W Max voltage: <18V Max Amps:45A Diameters: 36mm with fins Length: 50mm Length of extend shaft:15mm Shaft diameter: 3.175mm ESC Specifications: Material: ABS Main Color: Black Suitable car:1/12.1/10 car Continue current: 45A Burst current: 180A Resistance:0.0014ohm Battery:2~3 cells Lipo/4~9 cells NiMH BEC output:5.8V/3A(switch mode) Dimension: 50*36*36mm
For the esc manual,please click here
Package included:
1x Brushless Motor 1x ESC Speed Controller 1x English Manual
