Description
Super_S F3 Flytower Omnibus F3 Flight Controller Built In Betaflight OSD Dshot 6A 4 In 1 ESC BLHeli_S BB2

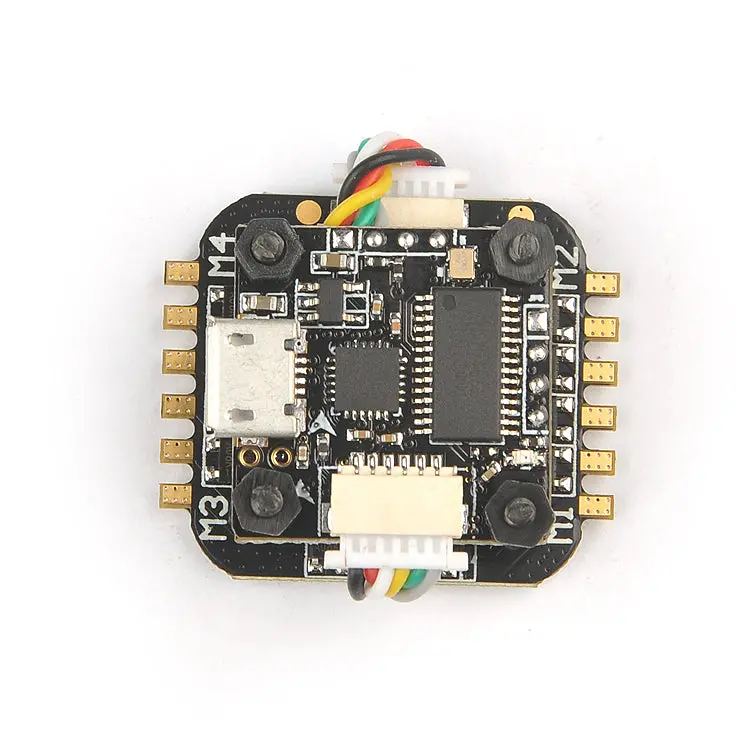

Description: Omnibus F3 flight controller: Item name: Super_s F3 flight controller board Size: 20*20mm Mounting hole: 16*16mm Diameter: 2mm Weight: 1.9g Processor: STM32F303CCT6 (72MHZ, 256K FLASH) Sensor: MPU-6000 (connected by SPI) Firmware version: betaflight_3.1.0_OMNIBUS Built-in ESC: 5V/0.5A Receiver: PPM, Spektrum 1024/2048, SBUS, IBUS, XBUS, SumD SumH RX etc. Power supply: 2S lipo battery ( 6.5V-8.4V) Suitable for 60mm-80mm mini brushless FPV Quadcopter frame 4 In 1 6A BLHeli_S ESC: Item name: Super_s 4 In 1 6A BLHeli_S ESC Size: 25x29mm (includes solder pad) Mounting holes: 16x16mm, φ2mm Weight: 3g Input voltage: 2S lipo Con. current: 6A Peak current: 10A (5S) Firmware: BLHELI_S Processor: SILABS EFM8BB21F16G BEC: NO Driver: 3 in 1 MOS Supports Dshot Oneshot multishot Features: Support programmable LED Sprit (turn off transponder before using) Support BLheli/BLHELI_S suite Pass-through ready Support PPM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600 Default Dshot600 Built-in voltage detection, alarm Built-in Betaflight-OSD Buzzer solder pin LED_STRIP connector Package included: 1 x Super_S F3 flight controller 1 x Super_S 6A 4 in 1 ESC 8 x M2*5+5 nylon column 8 x M2 nuts 8 x M2 screw
