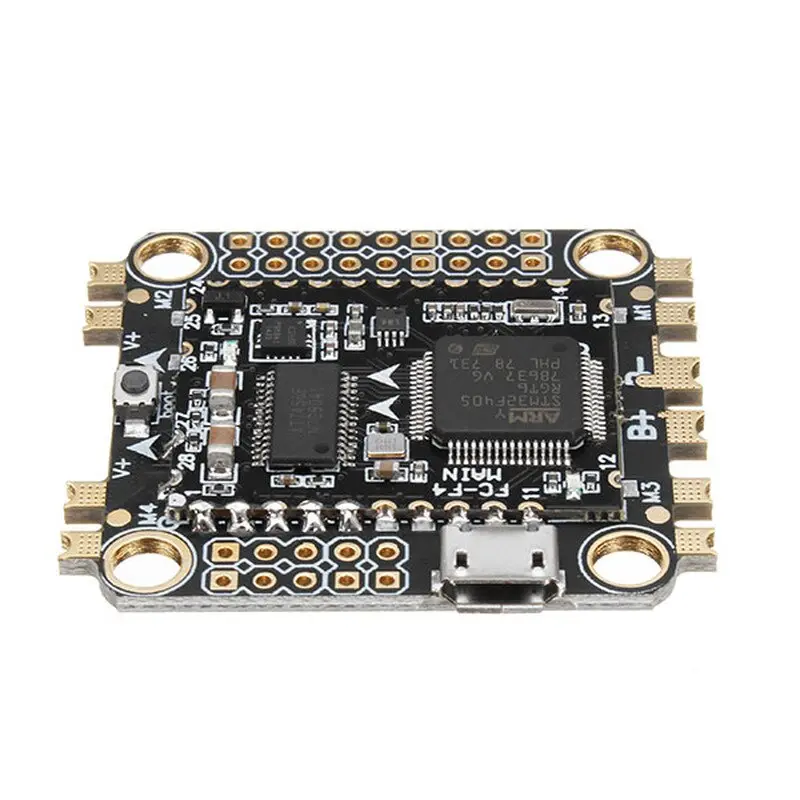

STM32F405 Omnibus F4 All-in-One Flight Controller with OSD, 5V BEC, Current Sensor, and 30.5×30.5mm Mounting

Description

STM32F405 Omnibus F4 Flight Controller AIO OSD 5V BEC Current Sensor for RC FPV Racing Drone 30.5×30.5mm
Specification:
Item Name: Omnibus F4 FC AIO OSD BEC and Current Sensor
Mounting Hole: 30.5×30.5mm
MCU: STM32F405 ,  CRT6, 8K
Sensor:MPU6000
Input Voltage: 2-6S Lipo
– BEC Output: 5V 3A
– Integrated with OSD, support BF Ground Station adjust OSD
– Built-in Current Sensot, can monitor current
Fimware: betaflihgt_3.2.0_OMNIBUSF4SD
Receiver: Support PPM, SBUS, IBUS, DSM 2/ DSM X Receiver
Size: 42x36mm
Weight: 9g
Features:
– STM32F405 CRT6, refresh rate up to 8K– PCB 3OZ copper enhance current stability and cooling fast- 5V 3A BEC output- Exposed pad for easy soldering- Integrated OSD,  no need to flash firmware additionally,debug OSD via BF ground station. – Integrated current meter to monitor the real-time power consumption – Adjust the PID by OSD via remote control- Adjust the VTX via open ports such as power, frequency band, frequency point (Note: The VTX should have this function like TBS one and the upcoming – DYS VTX.)- With 4 damping balls reduce the vibration to make it fly stably.
Package Included:
1 or 2 x Omnibus F4 Flight Controller
4 or 8x Anti-vibration Rubber Shock Balls
,,,,,,,,
