Speed Passion Competition 540 Motor & GT4 ESC Combo – 17.5T / 13.5T Configurations for 1/10 On-Road RC Vehicles

Description

Description:
Item brand:Speed passion
Item name: 540 Motor Ver.3 17.5T 13.5T + GT4 90A ESC Combo Set
Weight:about 337g
Fit for:1/10 on-road,rear wheel drive off-road rc car,except the big foot rc car
There is a software for reading and adjusting the esc,if you want,click here to download it

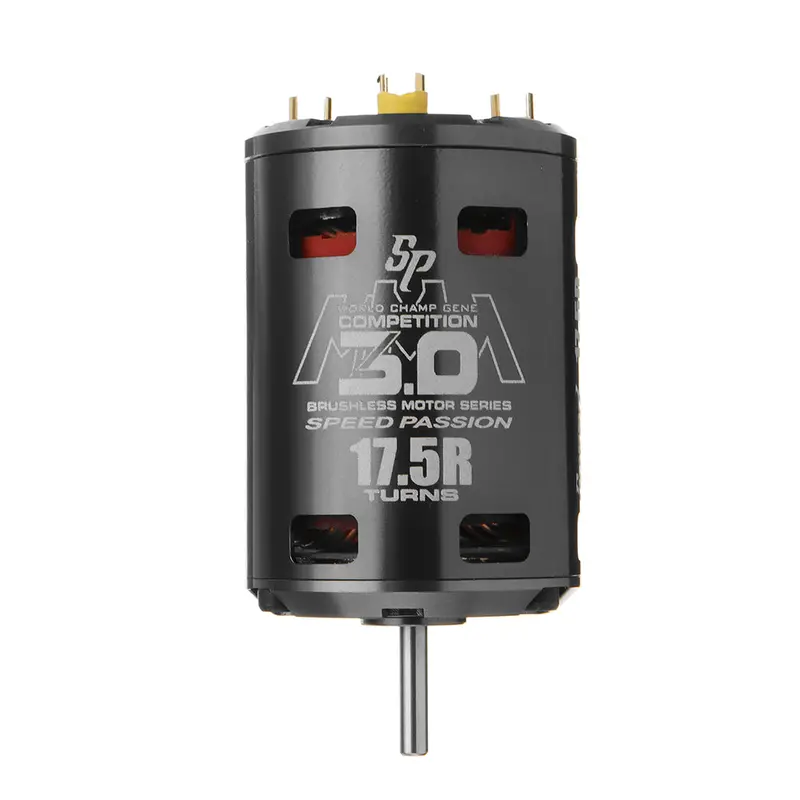

Motor Specification:
Size: 540 Sensored: Yes Turns: 17.5T,13.5T Output shaft: 3.175 mm Max Input voltage: 8 cell NiMh/2 cell Lipo Max Amperage: 16 Kv3: 2700 Vented Can: Yes
ESC Specification:
Burst Current:90A
Batter:4-9 Cell Ni-xx (NiMh or NiCd) or
2 Cell Li-Po / 2 to 3 Cell Li-Fe
BEC Output 5.0V/BEC 2A
ESC type Sensored
Motor Type:Sensorless or sensored brushless motor
Dimension 42mm (L) x 37mm (W) x 32mm ( H)
BL Motor Limited:Max >9.5T
Support USB Software upgrade:Yes
ESC Fan 25MM
Package included:
1X Motor
1X ESC
1X Capacitance 1X USB Adapter
1X USB Charging Cable
1X Accessories Set
