SN-NAVI MAVLink Flight Controller with Integrated OSD, Airspeed Sensor, PMU, and GPS for Fixed-Wing RC Planes

Description

Click here to download the manual: SNNNAVI.pdf
Specification: (Flight controller) Size: 50*30*13mm Weight: 20g Voltage: 5.5v Connector: GH1.25   Flight mode: Self-stabilizing, horizontal, directional height, orientation, manual, stunt Go home, hover, fence, waypoint, drop mode   RC model: V tail Vertical tail Delta wing Double hair front sag
Features: – Pixel-level OSD, support for custom OSD display; support for unconnected cameras and OSD video output. -8-channel PMM transmission, the expansion port can reuse other channels and extend the remote control function. – Dual CPU, effectively improve flight control performance, upgrade firmware with one click, and enjoy continuous function updates. – Support digital transmission interface, support mavlink protocol; support multi-machine formation flight, display friend position. – With audible alarm and prompt function, just connect the audio signal to the flight control. – Supports automatic recording of flight data and playback via ground stations – An external electromagnetic compass (located in the GPS) reduces the chance of losing the wind. – Supports multiple single assisted takeoff modes. – Support CAN interface, extended airspeed meter, tachometer and temperature sensor. – Built-in AAT algorithm, seamless docking Sinan AAT – Cascade PID control, automatically adjust PID parameters according to airspeed,
avoid high speed shaking machine to support waypoint setting, OSD radar display waypoint function. – Support SMART AUDI0 function, remotely set the picture transmission power, channel.

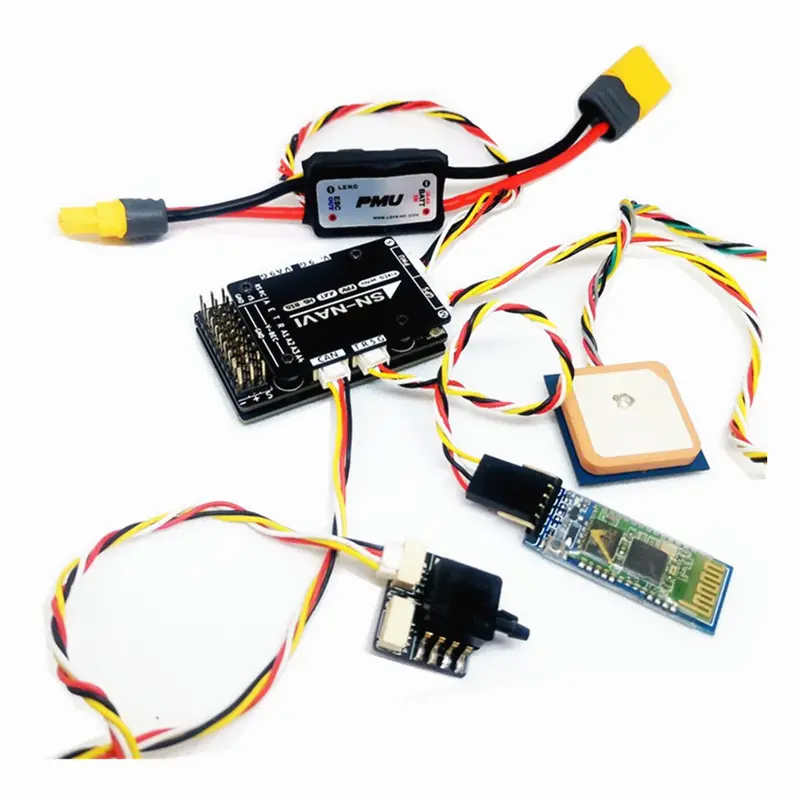

Package included: 1 x PMU module which built-in 5V3A 9V3A regulator, measuring range 80A flight control  1 x GH1.25 cable 1 x Airspeed meter 1 x GPS Dual mode M8 built-in compass QMC5883
