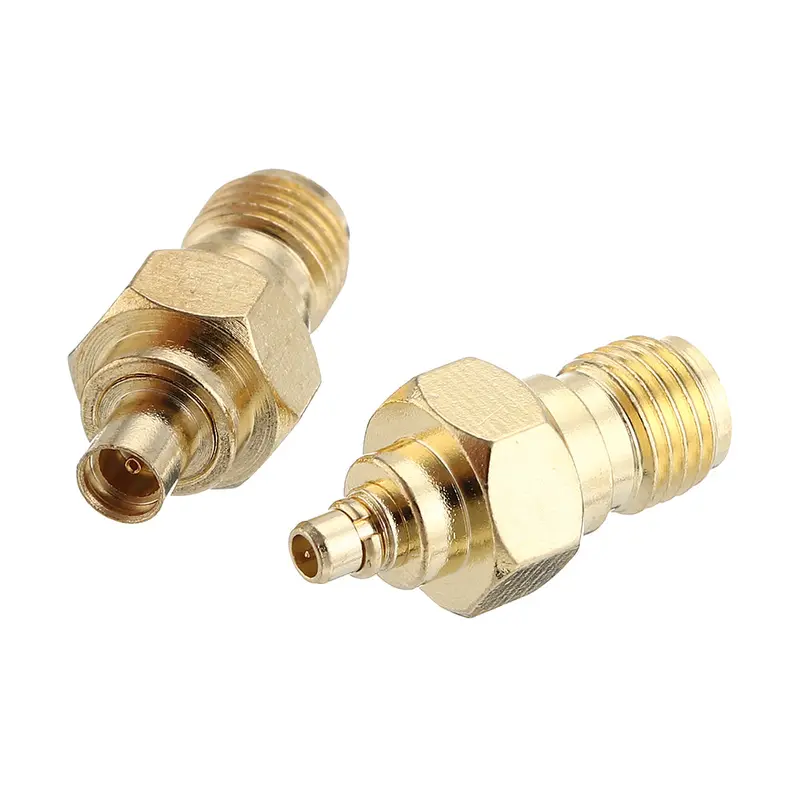

SMaK SMA-F to MMCX-K/J RF Coaxial Adapter – Low-Loss Signal Connection for RC Drones

Name: SMaK SMA-F to MMCX-K/J RF Coaxial Adapter – Low-Loss Signal Connection for RC Drones
Brand: Banggood
SKU: 50266
Availability: InStock

Original price was: $4.99.Current price is: $3.33.

Connector

Clear

Quantity

SKU: N/A Category: Motor Vehicle Cassette Adapters Brand: Banggood

Description

Specification: Item name: Coaxial Connector Adapter Connector: SMA Female to MMCXK/MMCXJ (Optional) Temperature range: -65 to +165 °C (PE Cable -40 to +85 °C) Vibration: MIL-STD-202, Method 213 Characteristic impedance: 50Ω Frequency range: DC ~ 12.4GHz (semi-rigid cable 0 ~ 18GHz) Operating voltage: 335V max (effective value) Withstand voltage: 1000V rms (minimum sea level) Contact resistance: Between inner conductors: ≤ 3 mΩ Between outer conductors: ≤ 2 mΩ Insulation resistance: ≥ 5000MΩ Insertion loss: ≤0.15 dB/6GHz Voltage standing wave ratio straight flexible cable: ≤1.10+0.002f Semi-rigid cable: ≤1.05+0.001f Curved flexible cable: ≤1.20+0.003f Semi-rigid cable: ≤1.10+0.001f Durability: ≥500 cycles
Package included: 1 x SMAK SMA Female to MMCXK/MMCXJ RF Coaxial Connector Adapter for RC Drone
