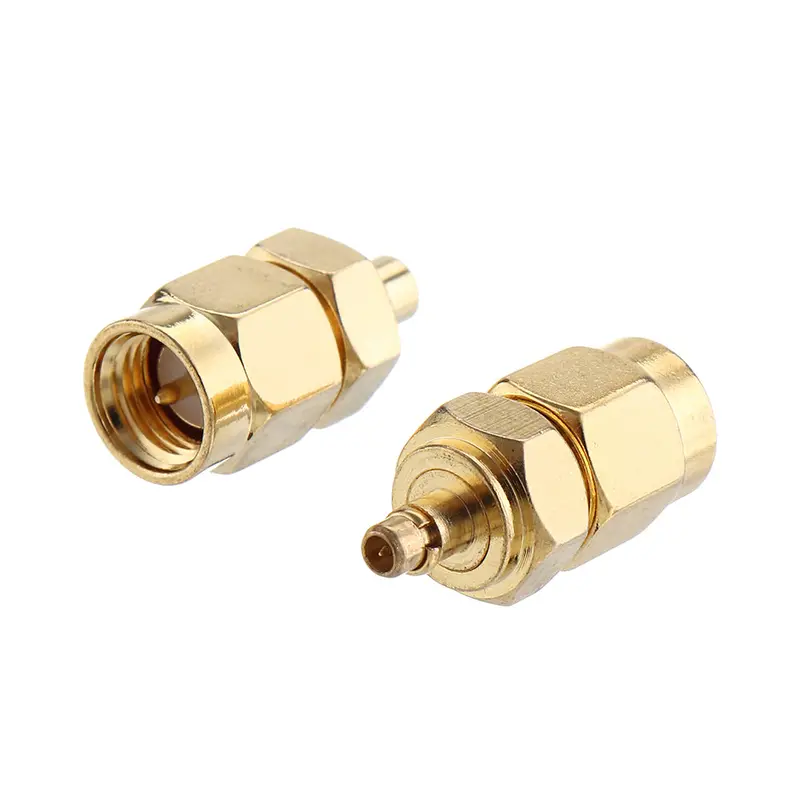

SMA Male to MMCX Adapter Cable – RF Coaxial Connector Converter for RC Drone Video Transmitters

Description

Specification: Item name: Coaxial Connector Adapter Connector: SMA Male to MMCXK/MMCXJ (Optional) Temperature range: -65 to +165 °C (PE Cable -40 to +85 °C) Vibration: MIL-STD-202, Method 213 Characteristic impedance: 50Ω Frequency range: DC ~ 12.4GHz (semi-rigid cable 0 ~ 18GHz) Operating voltage: 335V max (effective value) Withstand voltage: 1000V rms (minimum sea level) Contact resistance:  Between inner conductors: ≤ 3 mΩ Between outer conductors: ≤ 2 mΩ Insulation resistance: ≥ 5000MΩ Insertion loss: ≤0.15 dB/6GHz Voltage standing wave ratio straight flexible cable: ≤1.10+0.002f Semi-rigid cable: ≤1.05+0.001f Curved flexible cable: ≤1.20+0.003f Semi-rigid cable: ≤1.10+0.001f Durability: ≥500 cycles
Package included: 1 x SMAJ SMA Male to MMCXK/MMCXJ RF Coaxial Connector Adapter for RC Drone
