Description

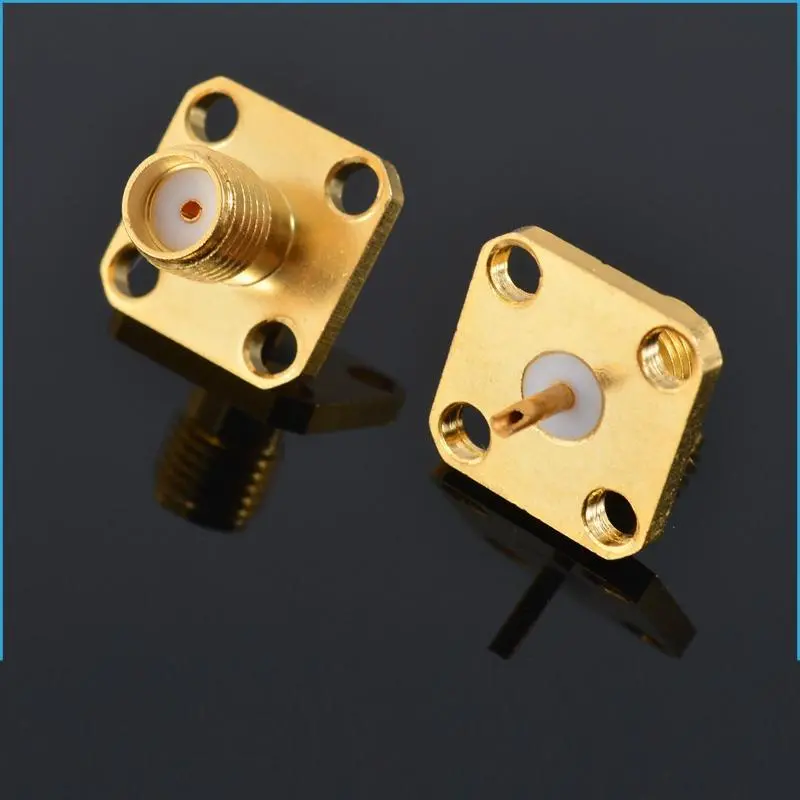

SMA-KFD 5mm Flange Terminal Connector SMA Female 4 Hole Square Plate Panel Straight For Coaxial Cable
Specification Temp. : -65~+165°C (PE Cable -40~+85°C) Vibration : MIL-STD-202,Method 213 Impedance : 50Ω Frequency : DC~12.4GHz(Semi-rigid cable 0~18GHz) Working Voltage : 335V max (effective) Withstand Voltage : 1000V rms (Minimum sea level) Contact Resistance Center Contact ≤ 3 mΩ Outer Contact ≤ 2 mΩ Insulation Resistance ≥ 5000MΩ Insertion Loss ≤0.15 dB/6GHz VSWR Straight soft cable≤1.10+0.002f Semi-rigid cable≤1.05+0.001f Curved flexible cable≤1.20+0.003f Durability≥500 Times(cycles) Package Included 1 x Connector
