Description
Specifications:

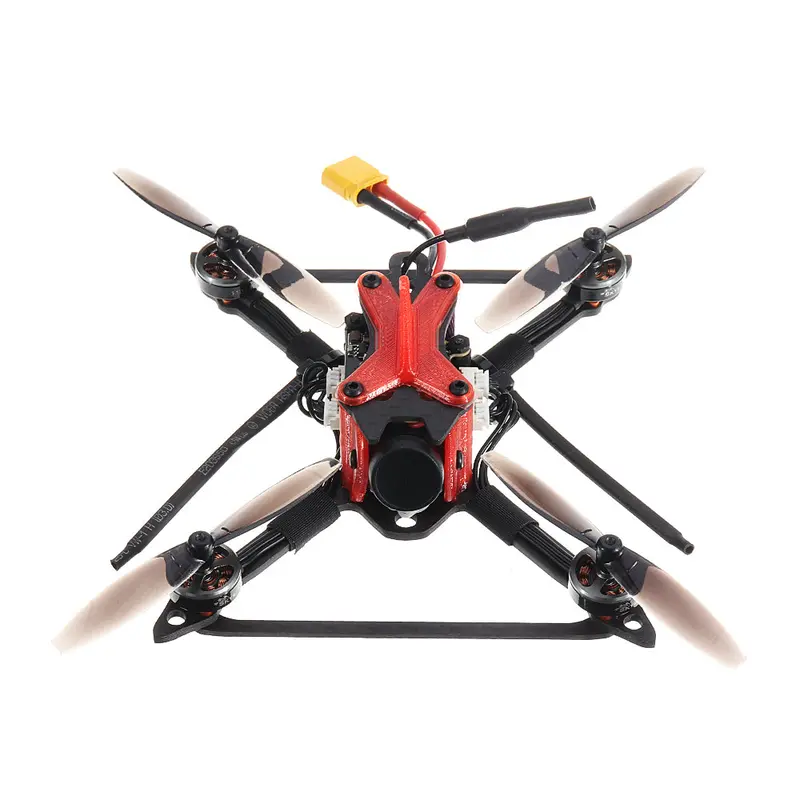

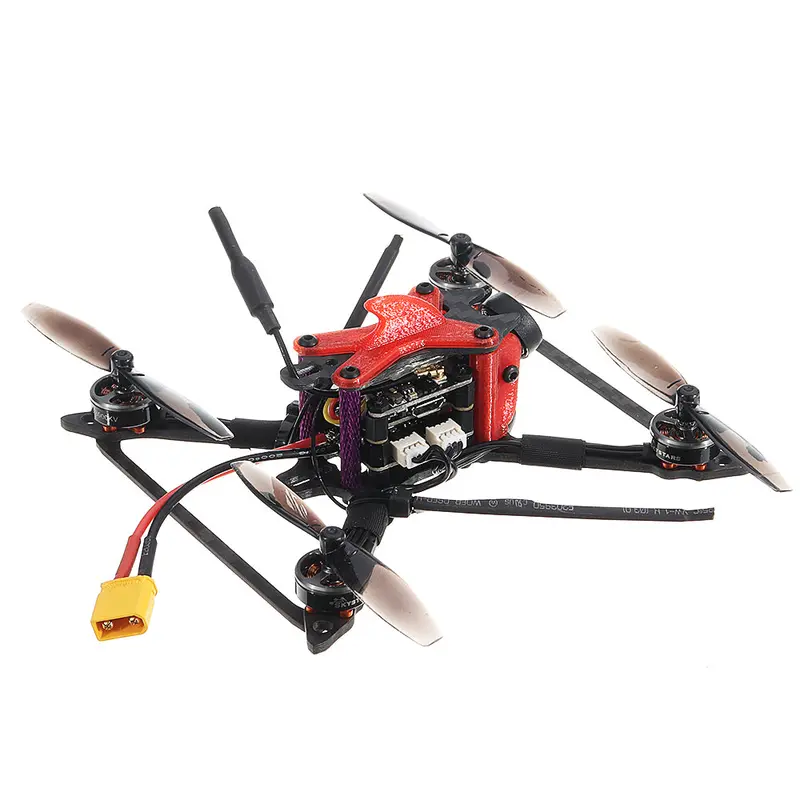

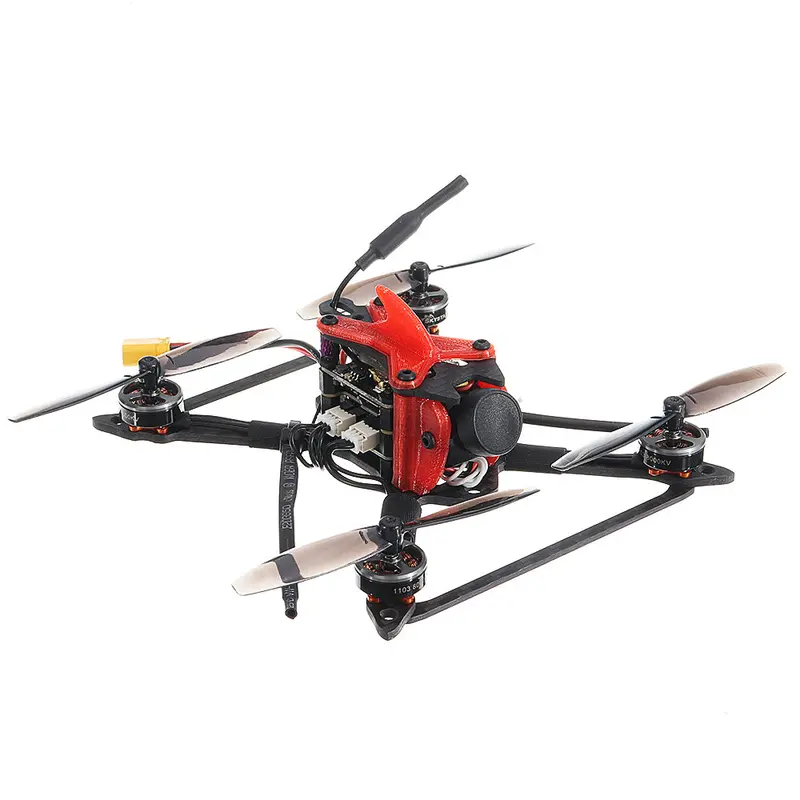

Brand: SKYSTARS
Item No.: TA LON X110
Size:100*90*40 mm
Weight: About 45g
| Frame Kit | Frame Kit Name: Skystars TA LON X110 Wheelbase: 110mm Props Size: 2.5inch Arm Plate Thickness: 2mm TOP Plate Thickness: 1.5mm Material: 3k Carbon Fiber and TPU 3D print Screw: 10.9 level screw Weight: 13g |
| Flight Controller | FC Specifications: MCU: 168MHz STM32F405 IMU: MPU6000 accelerometer/gyro (SPI) OSD: BetaFlight OSD w/ AT7456E chip Built in inverter for SBUS input (UART6-RX) Ibus/dsmx Shared: UART1-RX Smartaudio & Tramp VTX protocol supported WS2812 Led Strip : supproted but not include Beeper : supproted but not include RSSI: Yes |
| ESC | Features: – Support Dshot 600 in default out from factory – Also support Oneshot42, Oneshot125, Multishot, Dshot150, Dshot300 and Dshot600 – Ultra light and ultra small ESC -Composed of 3Oz gold plated PCB -Supports higher KV motor and more power load, more suitable for violent flight of racing drone. 15A 2 – 4S BLS RGB light ESC: Input Voltage: 2 – 4S Lipo battery Constant Current: 15A P eak Current: 18A BEC Output: no CPU: BB21 BLHELIS firmware MOS Tube: TOP QUALITY MOSFET |
| Transmitter | FPV Transmitter Output power: 0mW/25mW/100mW switchable Control mode:button OR Channel changes and Pitmode setting through PWM TBS SmartAudio inside BAT: 5V,40mA—-100mW Video system: NTSC/PAL Antenna: IPEX Frequency: 5.8GHz 5 bands 40channels Weight: 0.9 g Dimension: 16*13*3mm Mounting Hole: 20mmx20mm |
| Motor:(4S) | skystars 1103 8000KV, race edition,hollow shaft, Made of NSK bearings and curved magnets for longevity and efficiency |
| Camera | Runcam nano 2 Image Sensor: 1/3″ CMOS Horizontal Resolution: 700TVL Lens: 2.1mm(M8) FOV 155° Signal System: NTSC / PAL S/N Ratio: >50dB Electronic Shutter Speed: Auto Auto Gain Control (AGC): Auto Min. Illumination: 0.01Lux@1.2F D-WDR: Auto Day/Night: Color Power: DC 3-5.5V Current: 110mA@5V Housing Material: ABS Net Weight: 3.2g Dimensions: L14mm*W14mm*H16mm |
| Propeller | 65mm 2Blade Propeller Prop |
| Antenna | 5.8G 3dBi Brass Antenna Omni Directional IPEX Port |
Package Included:
1 X SKYSTARS TA LON X110 2~4S RC Drone
