Description

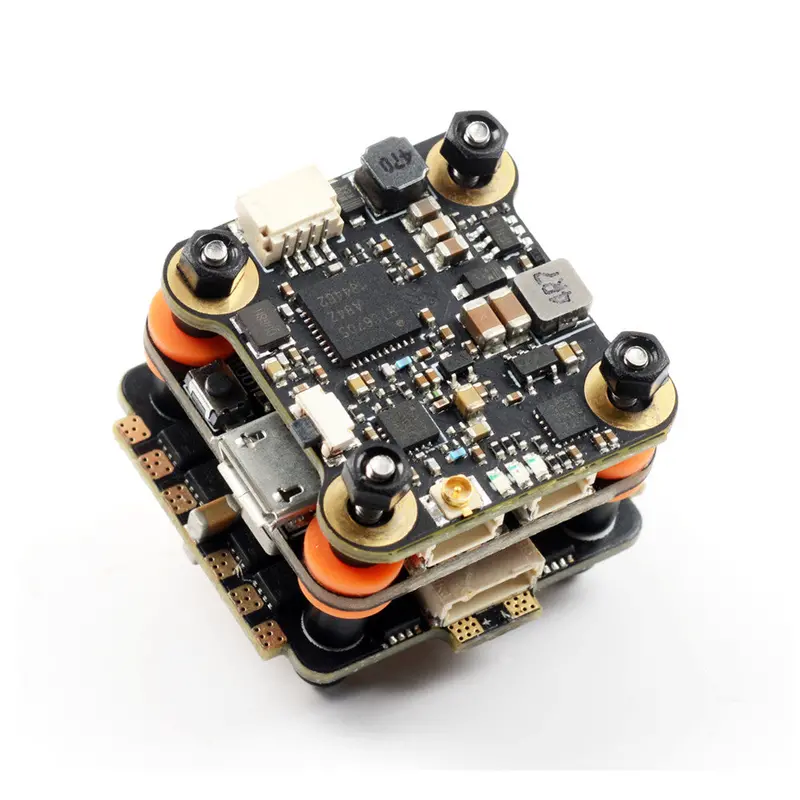

20x20mm Mini F4 Flytower F4 OSD Flight Controller & 20A BL_S 4in1 ESC & 48CH 25/100/200mW VTX
Specification:
Brand Name: Skystars
Item Name: 20x20mm Omnibus F4 FC & 20A BL_S ESC & 48CH 25/100/200mW VTX Flytower
Size:25×25mm Installation height:20mm Screws:M2×25mm Mounting Hole: 20x20mm Recommended the plate thickness: 2-4mm Weight: 15.5g
48CH Off/25/100/200mW Switchable VTX (Top Level)
VTX Power: OFF/25/100/200mW CH: 48CH VTX Power input: 2-6S (using VTX layer alone) Video Camera Voltage: 5V- Support TBS SmartAudio
Frequency Table:
| CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 | |
| Band A | 5865 | 5845 | 5825 | 5805 | 5875 | 5865 | 5845 | 5725 |
| Band B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| Band C | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| Band D | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| Band E | 5362 | 5400 | 5436 | 5473 | 5510 | 5547 | 5584 | 5620 |
| Band F | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
Omnibus F4 Flight Controller ( Middle Level)
Firmware: betaflight 3.5.3 (OMNIBUSF4) OSD Firmware: Betaflight OSD Video Camera Voltage: 5V / BAT Support Voltage monitor, buzzer and RGB LED
Support DSMX, SBUS and PPM Receiver Board Size: 25×25mm ( 20x20mm Mounting Hole) Weight: 4.5g
20A BLheli_S 4 In 1 Brushless ESC ( Bottom Level) Input Voltage: 2-4S (7.4V-16V) Con. Current: 20A Peak Current: 30A (6s) Oneshot 125/42 : YES Dshot 150/300/600: YES BlheliSuite Configurable: YES Firmware Version: BLHeli_S/Dshot 150/300/600 16.6 Board Size: 30×26.5x6mm
( 20x20mm Mounting Hole) Weight: 4.6g
Package Included:
1x F4 Flight Controller Board
1x VTX Board
1x 20A 4 In 1 ESC
1x Bag of screws 3x Cable
