Skystars BetaFPV F405 All-in-One Flight Controller with OSD + 4x 50A BLHeli_32 ESCs – 3–6S DShot1200 Ready

Description

SKYSTARS BetaFlight F405 AIO Flight Controller OSD & 4 PCS 50A Blheli_32 3-6S DSHOT1200 ESC for RC Drone FPV Racing
Specifications: Brand name: Skystars Item name: BetaFlight F405-AIO & 50A Blheli_32 3-6S DSHOT1200 ESC Size: 36x46mm PCB with 30.5mm mounting holes Weight: 10g   FC Specifications:  MCU: 168MHz STM32F405 IMU: MPU6000 accelerometer/gyro (SPI) Baro: BMP280 (I2C) OSD: BetaFlight OSD w/ AT7456E chip Blackbox: MicroSD card slot (SD/SDHC) VCP, UART1, UART2, UART3, UART4, UART5 Built in inverter for SBUS input (UART2-RX) PPM/UART Shared: UART2-RX SoftSerial on TX2, S5 or S6 optional Camera control on S6 or DAC optional Smartaudio & Tramp VTX protocol supported WS2812 Led Strip : Yes Beeper : Yes RSSI: Yes   PDB Specifications: Input: 6~30V (3~6S LiPo) w/TVS protection PDB: 4x50A , 4 layers*2oz copper PCB BEC: 5V 3A cont.  LDO 3.3V: for Spektrum RX Current Sensor 184A (Scale 179) Battery Voltage Sensor: 1:10 (Scale 110)

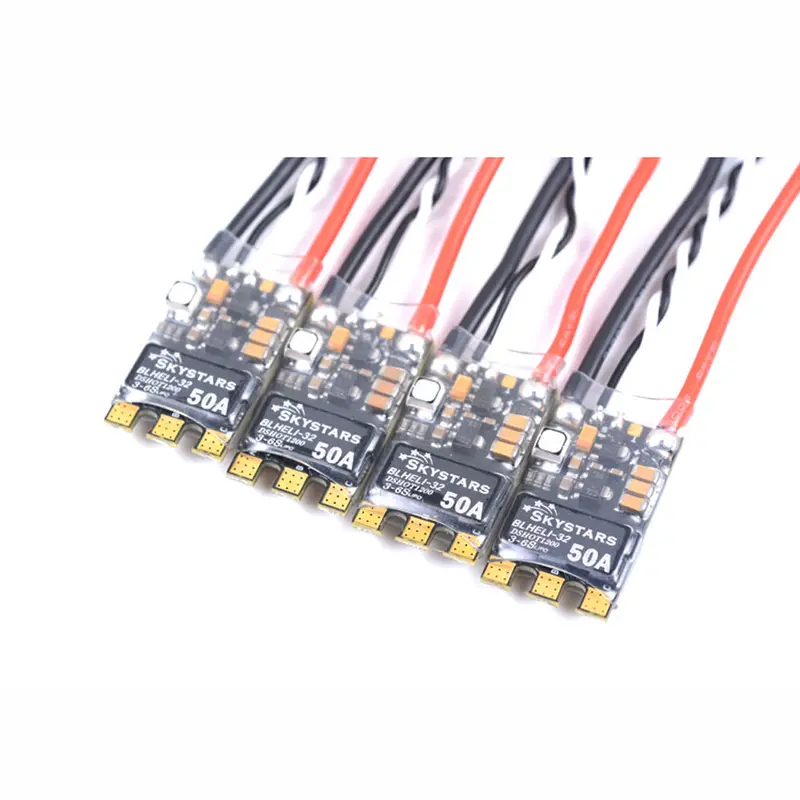

50A Blheli_32 brushless ESC Specifications:
Brand name: SKYATARS
Item name: 50A Blheli_32 brushless ESC
Firmware: Blheli_32 bit
Input: 3-6S
BEC: NO
Continuous current: 50A
Burst current: 60A >=10S
Weight: 7.4g(include cables)
Size: 26X15X6MM   Features: 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red) 6x PWM / DShot outputs without conflict 5x UARTs 1x Group of  G/S1/S2/S3/S4 pads for 4in1 ESC Signal/GND 4x pairs of corner pads for ESC Signal/GND connections (DSHOT compatible) 1x pair I2C1 pads 1x press button for BOOT(DFU) mode
– Support Dshot 1200 in default out from factory – Also support Oneshot42, Oneshot125, Multishot, Dshot150, Dshot300 and Dshot600 – Ultra light and ultra small ESC
– The color of RGB LED can be set by Blhelisuite.
– Powered by high performance STM32 MCU frequency up t0 48 MHZ
– Composed of 3Oz gold plated PCB
– Flashed with the latest BLheli32 firmware
– Supports higher KV motor and more power load, more suitable for violent flight of racing drone.
– Aluminum heat sink effectively slow down the temperature rise.    Package Included: 1 x Skystars BetaFlight F405-AIO 1 x SANYO 35V/470uF (Low ESR) 4 x silicon grommets M4 to M3
4 x 50A Blheli_32 3-6S DSHOT1200 ESC
