Description
| |
Waterproof version
Sepcification:

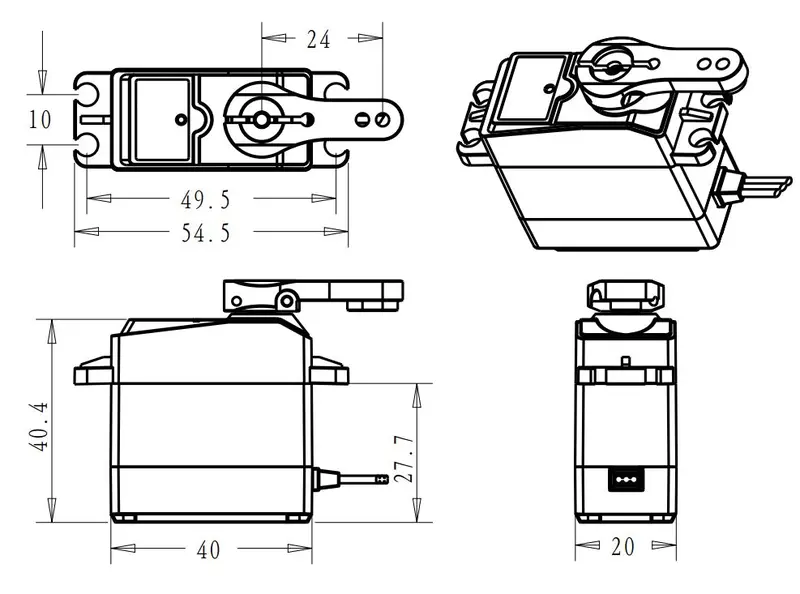

| Brand:Dsservo Item: DS3218 20KG Digital Servo DS3218 PRO 20KG Large Torque and High Speed Digital Servo DS3225 25KG Digital Servo DS3230 30KG Large Torque Digital Servo Apply Environmental Conditon: 1.Storage Temperature Range:-30°C~80°C 2.Operating Temperature Range:-25°C~70°C Mechanical Specification: 1. Size: 40.0*20.5*40.5mm 2. Weight: 58g±2g 3. Limit angle: 360° 4.Bearing: 2BB 5.Horn gear spline: 25T Diameter:5.9mm 6.Case : Engineering plastics+Aluminum alloy 7.Connector wire: 320mm±5mm 8.Motor: Carbon brush motor Electrical Specification: 1.Working voltage range: 4.8 – 6.8V 2.Command signal: Pulse width modification 3.Amplifier type: Digital controller 4.Pulse width range: 500～2500usec 5.Neutral position: 1500usec 6.Running degree: 180±3°(PWM 500～2500usec) or 270±3°(PWM 500～2500usec) 7.Dead band width: 3 usec 8.Rotating direction Counterclockwise: (when 1000～2000usec) |
Package Included: 1 x Digital Servo 1 x 25T Adjustable metal servo arm

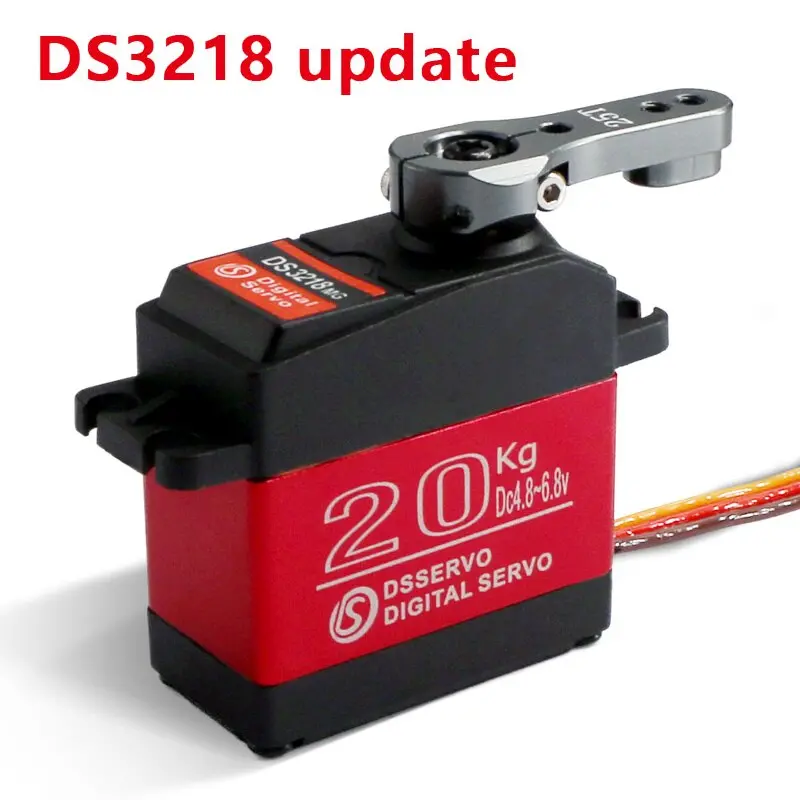

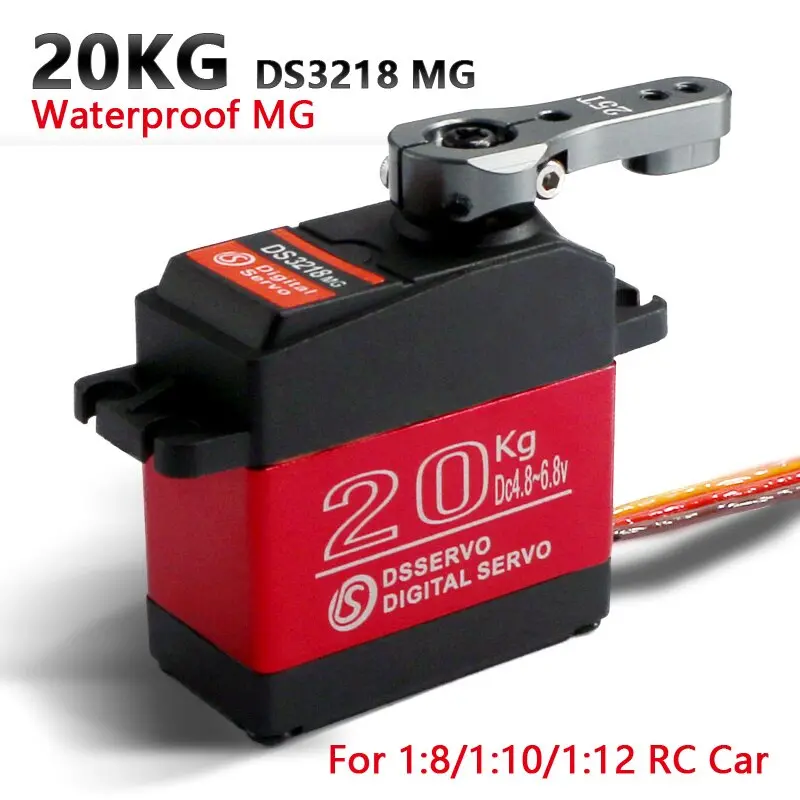

The DS3218 is metel gear !
The DS3218 Pro is stainless sheel gear!

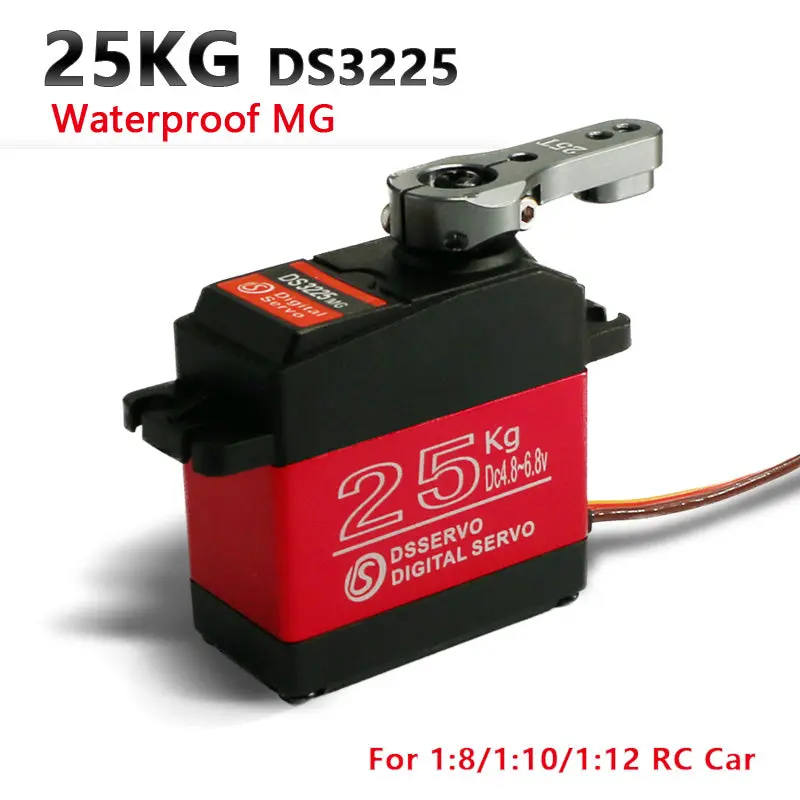

25KG-DS3225

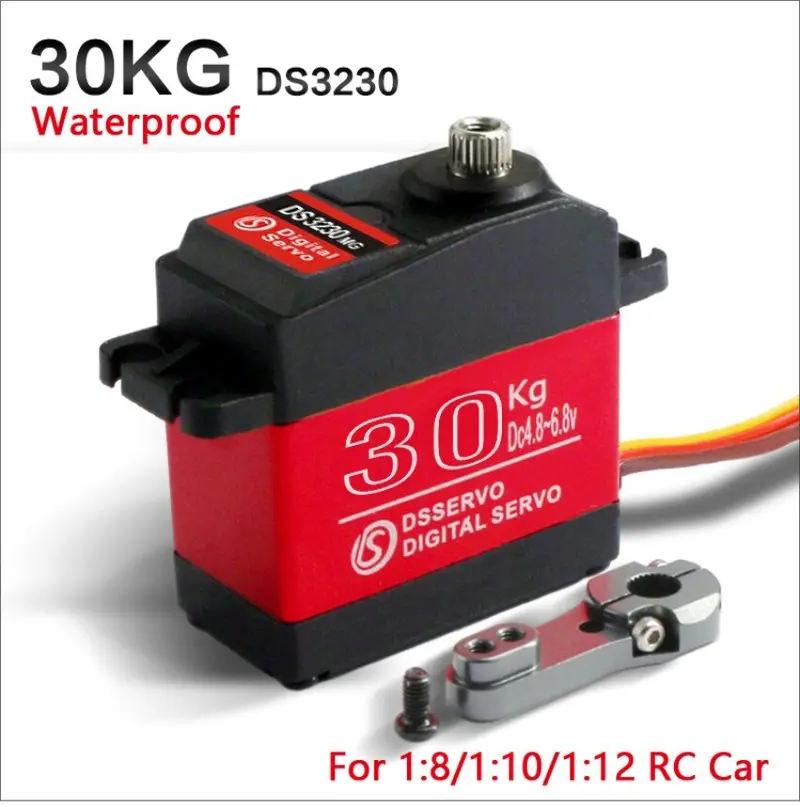

30KG-DS3230

if you need the servo arm,please click the link:
Freeship 5X CNC 25T Adjustable metal Servo Arm for Futuba Hitec Savox Servo MG995 MG996R titanium oxide Wholesale Retail
US$ 11.89/lot
pieces / lot |
Freeship 10x Servo Arm Round type Disc 25T Matal Horns For Towrer Pro MG995 MG996 Futaba ACE Robot
US$ 9.50/lot
pieces / lot |
|
here has some else good quality robot servo,maybe you need it.
