Description
Description:

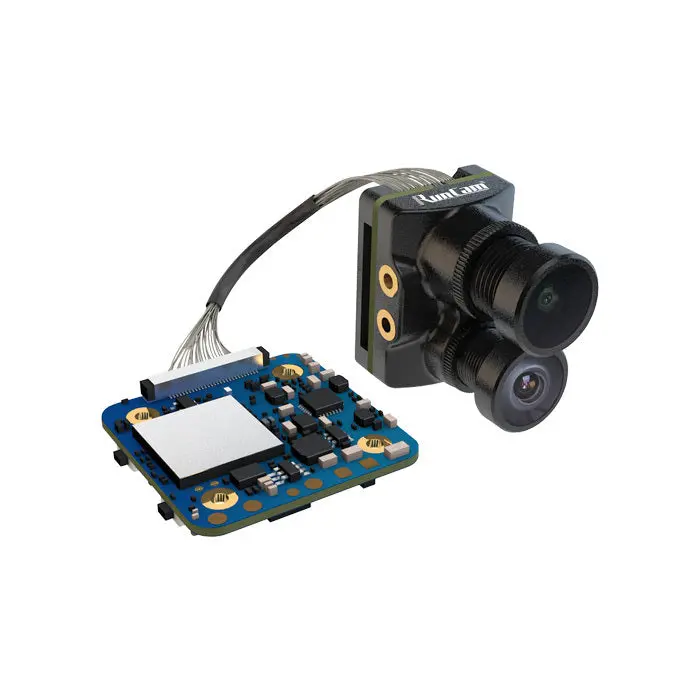

Brand : RunCam Item name : hybrid
Color : Black
Parameters :
| HD sensor | SONY 8MP |
| Analog sensor | SONY 1.3MP |
| Field of View (FOV) | HD Recording FOV 145°(FPV FOV: 150° @ 4: 3) |
| Video Resolution | 4K@30fps / 2.7K@60fps / 2.7K@50fps / 1080P@120fps / 1080P@100fps / 1080P@60fps / 1080P@50fps |
| Video File Format | MP4 |
| TV Mode | NTSC (720*480)/PAL (720*576) Switchable |
| Interface | HD supports UART remote control; Analog supports UART fimrware update. |
| Max Micro SD CardSupported | Up to 128G. U3 recommended (2.7K60/1080P120 requires U3 or above; other solutions require U1 or above) Please make sure that the file format of the SD card is FAT32, otherwise, it will easily cause errors. |
| Mounting Hole Distance | 20*20mm |
| PCB Size | 29*29mm |
| Lens Module Size | 19*25mm |
| Lens Specs | HD M10 ; Analog M8 |
| Power Input | DC 5-20V (Non-direct power supply from 4s battery or above. Powered direcly with battery will generate surges and burn the camera.) |
| Working Current | 480mA @5V / 140mA @12V |
| Weight | 18g |
Features :
– True 145° HD Recording & 6ms FPV Latency
– Single board Supporting Start/Stop Recording via UART Control
– HD Recording supports QR Code Setup Analog FPV supports Firmware Update
Package:
1x RunCam hybrid Camera
1x Plastic cover 1x 3PIN FPV silicone cable(male) 1x 3PIN FPV silicone cable(female) 1x Set of M2 screws
