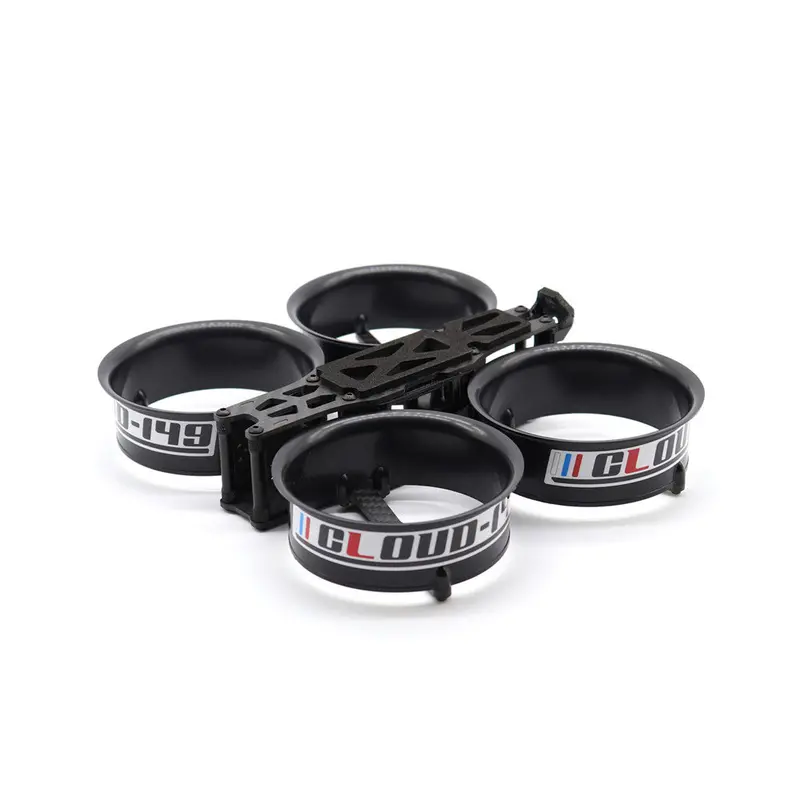

Reptile Cloud-149HD 3-Inch FPV Racing Frame – 149mm Wheelbase, DJI Digital FPV Compatible

Description

Reptile CLOUD-149HD 149mm Wheelbase 3 Inch Racing Frame Kit Compatible DJI Digital FPV System
Specification:
Brand Name: Reptile
Model: CLOUD-149HD Wheelbase: 149mm Upper plate length:156mm Lower plate length:156mm Weight: 115g (Include print part) Bottom plate: 2mm Top plate: 2mm Arm plate:3mm Position of FC installation hole: 20*20mm/30.5*30.5mm Camera mounting hole distance:20mm Distance of installation hole of motor:12mm Plastic parts: ABS material plastic Diversion ring Printed parts: TPU antenna base
Features:
1. Suitable for DJI FPV System 2. Video unocclusion 3. Beautifully designed,rugged and durable 4. High quality carbon plate,precision cutting 5. Includes 3D printed Parts for installing DJI FPV System
Recommend Parts: Flight Controller: 20x20mm OR 30.5×30.5mm RF / Kiss / F4 / F3 / F7 FC Brushless ESC: 20A-50A   Propeller: 3 Inch Propeller Brushless Motor: 1306 / 1408 / 1506 Motor VTX & FPV Camera:  DJI FPV Air Unit Battery:  4S 650mAh –  6S 1300mAh Lipo
The following parts are compatible: ( NOT Included)
FC & ESC Stack: 20x20mm iFlight SucceX-D Mini F7 TwinG Stack (F7+40A ESC)
Brushless Motor: MAMBA 1408 4000KV 4S Brushless Motor
Propeller: 2 Pairs iFlight MegaBee V2 Parts 3045 3×4.5 3 Inch 3-Blade Propeller
VTX & Camera: DJI Digital FPV System Air Unit HD Camera Goggle Radio Transmitter Combo
Lipo Battery: Tattu R-Line V1.0 14.8V 850mAh 95C 4S1P Lipo Battery XT30 Plug
Package Included: 1x Top plate                                   2x Side plate                                  1x Bottom plate                                2x Arm plate                               4x plastic Diversion ring                      1x 3D Printing TPU Antenna base              8x Aluminum pillar                            1x 3D Printing TPU Mounting Base for DJI FPV transmitter
