REALACC Triple Feed Patch-1 Antenna – 5.8GHz 9.4dBi Circular Polarized Directional FPV Antenna for Goggles

Description

Note:Terminator is not included,you can purchase it separately,click here
The Triple Feed Patch antenna is a directional circularly polarized antenna Good radiation efficiency. Most FR4-based patches have terrible efficiency because FR4 is very lossy at 5.8 GHz. Good axial ratio, not just directly perpendicular to the patch but also off-center.
Mini version with 45mm diameter :Click Here
Radiation pattern:
Measurements:
Specifications: Center frequency: 5.8 GHz Bandwidth: 660 MHz (5.47 – 6.13 GHz) Matching: S11 < -20 dB, VSWR < 1.22 (at center frequency) Axial ratio: < 1.3 Antenna gain: 9.4 dBi Half power beam width: 55° (horizontal and vertical) Radiation efficiency: 83.5%
Diameter of large disk : 5.94cm Diameter of small disk: 2.46cm
Features:
Good radiation efficiency. Most FR4-based patches have terrible efficiency because FR4 is very lossy at 5.8 GHz Good axial ratio, not just directly perpendicular to the patch but also off-center
Note: The PCBs must use 1.0 mm thickness FR4 material
Package included:

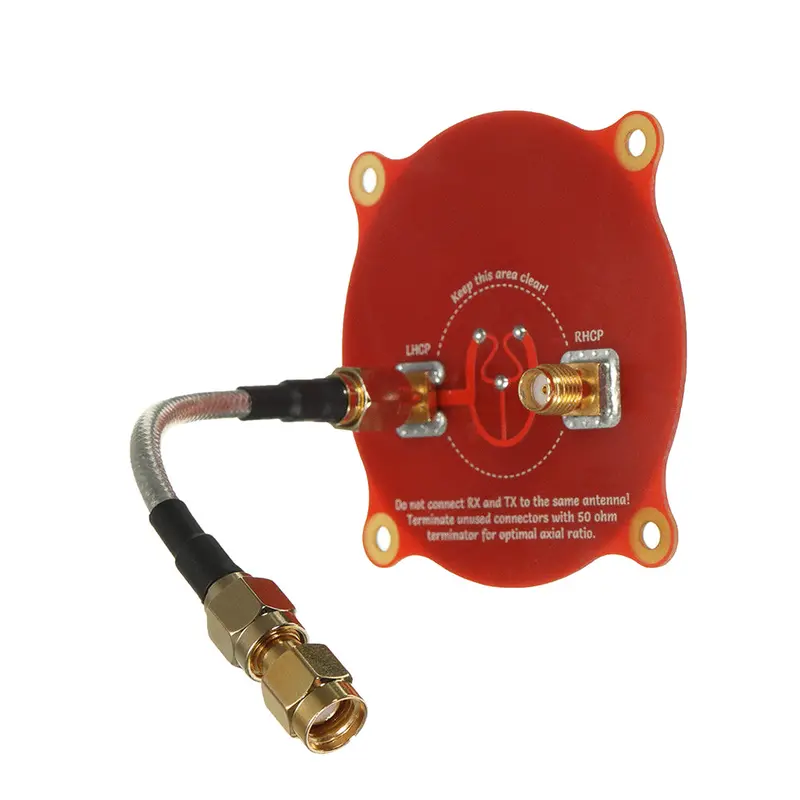

1 x Realacc Triple Feed Patch-1 5.8GHz 9.4dBi Directional Circular Polarized FPV Antenna
1 x Extended cable
1 x SMA Feamale to RP-SMA Male adapter connector
,,,,,,,,,,
