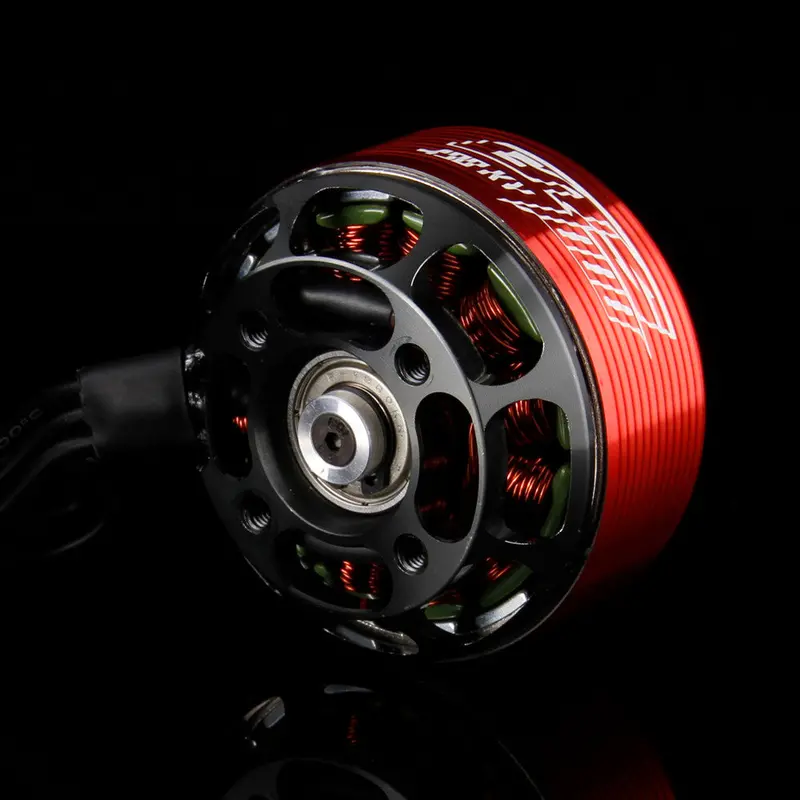

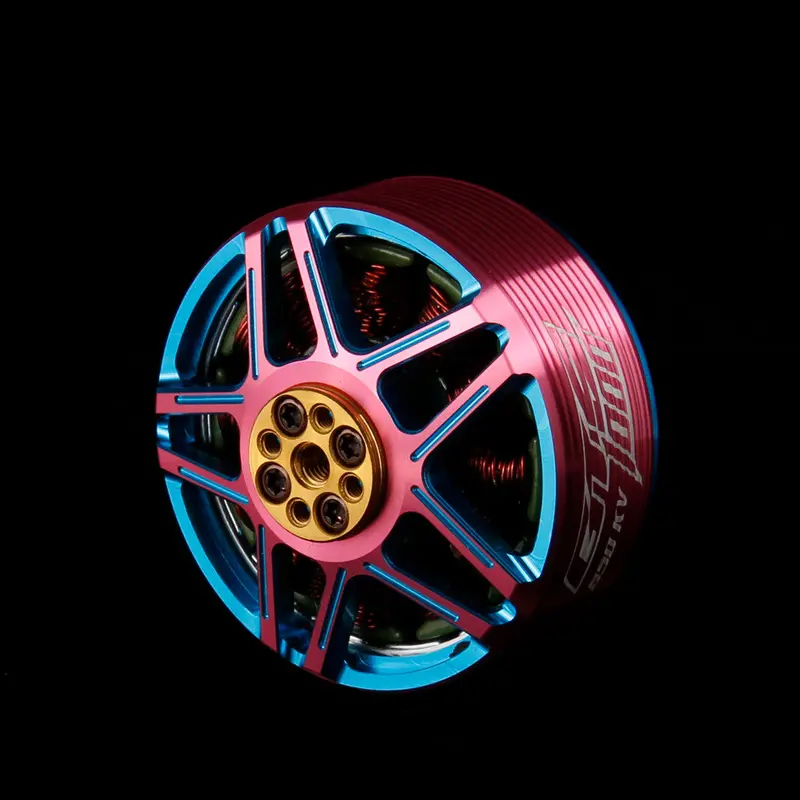

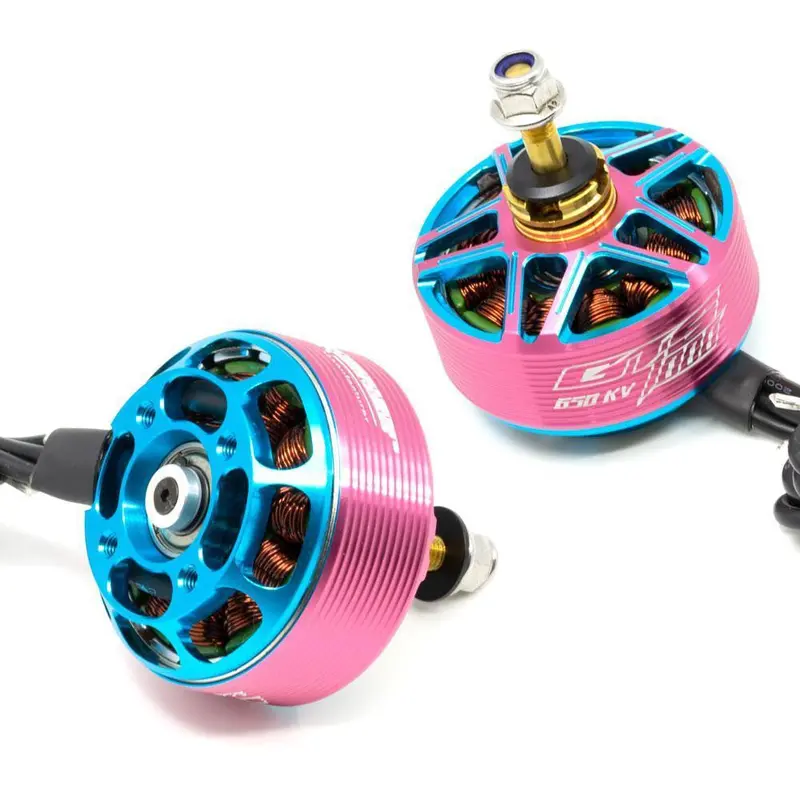

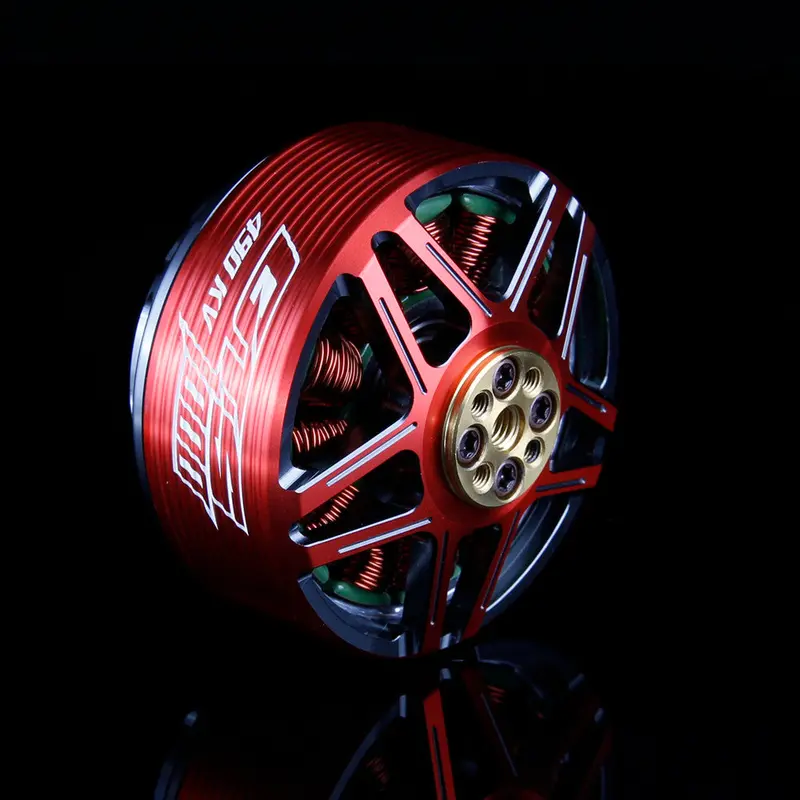

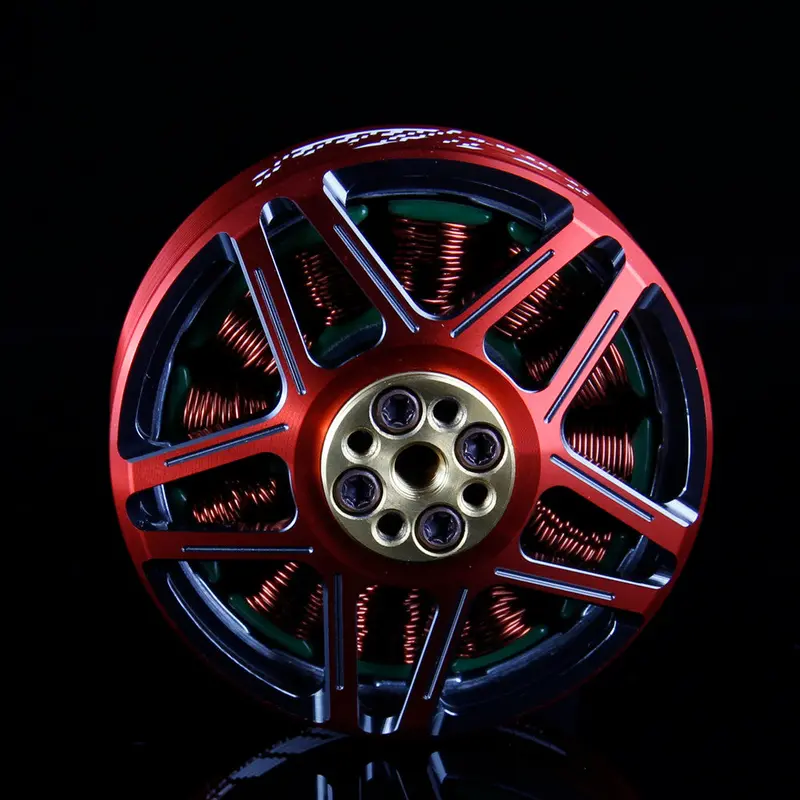

RCINPOWER GTS4715 Brushless Motor – 360/490/650KV, 4–12S Compatible, for X-Class FPV Racing Drones

Description

RCINPOWER GTS4715 360KV 490KV 650KV 4-12S Brushless Motor for RC Drone FPV Racing
Specification:
Brand Name: RCINPOWER
Model: GTS4715
Item Name: 4715 360KV 490KV 650KV Motor
KV: 360KV / 490KV / 650KV ( Optional)
Color: Red / Pink ( Optional)
Input Voltage: 10-12S @ 360KV
6-8S @ 490KV
4-6S @ 650KV
Version: CW Screw Thread
Quantity: 1 PC Configuration: 12N14P Stator Diameter: 47mm  Stator Length: 15mm Shaft Diameter: 8mm ( Hollow) Idle Current(10V): 1.2A@360KV ; 1.65A@490KV  ;  2.9@650KV Max. Con. Power (180S): 3600 W@360KV ;3000W@490KV ; 2500W@650KV Internal Resistance: 28mΩ@360KV; 20mΩ@490KV ; 14mΩ@650KV  Max. Current(30s):  80A@360KV; 90A@490KV;  100A @650KV
Motor Dimension(Dia*Len): 57.6x36mm
Weight: 275g
Package Included:
1x GTS4715 Motor
