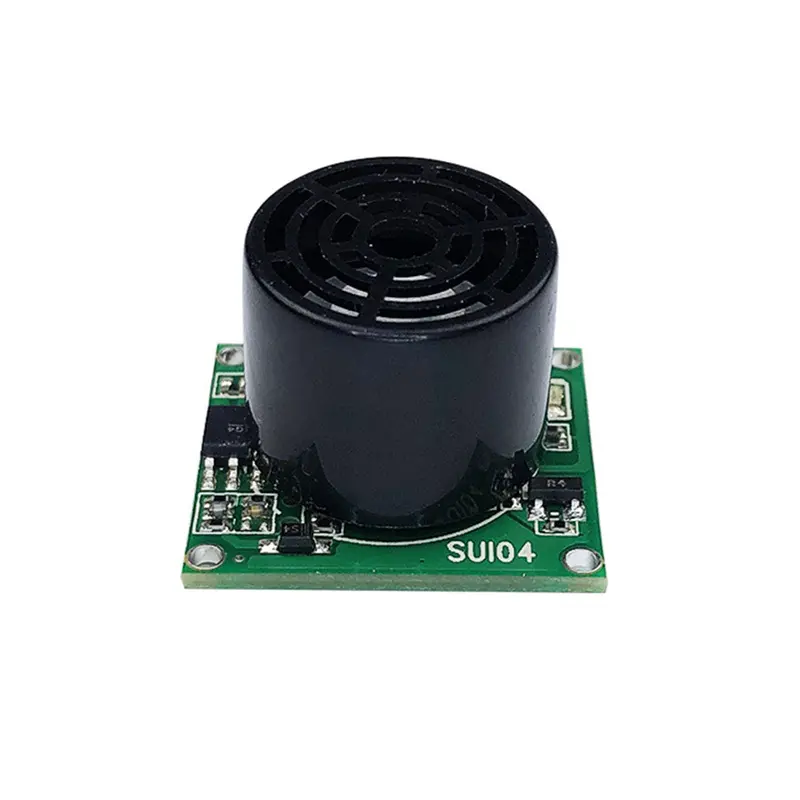

Radiolink SUI04 Ultrasonic Obstacle Detection Module for Pixhawk and MiniPix Flight Controllers

Description

RadioLink Ultrasonic Sensor SUI04 Obstacle Avoidance Module for Pixhawk / Mini PIX Flight Controller
Specification:
Brand Name: RadioLink
Model: SUI04
Item Name: Ultrasonic Sensor SUI04 Obstacle Avoidance Module
Size: 20*22*19mm Weight: 8g (with wires) lInput voltage: 4.5~5.5V(do not support HV) lCurrent: 18mA@5V lPower: 90mA lOperating temperature: -20°C~80°C lDetection distance: 40cm~450cm lDetecting precision: 0.1cm lAcoustic emission frequency: 40±1.0KHz lBeam angle: 60°(transmitting receiving hybrid) lFade area: 0 (it will show 40cm) lOutput protocol: I2C lDuty Cycle: 30ms
Package Included:
1x Ultrasonic Sensor SUI04 Module
1x Cable
