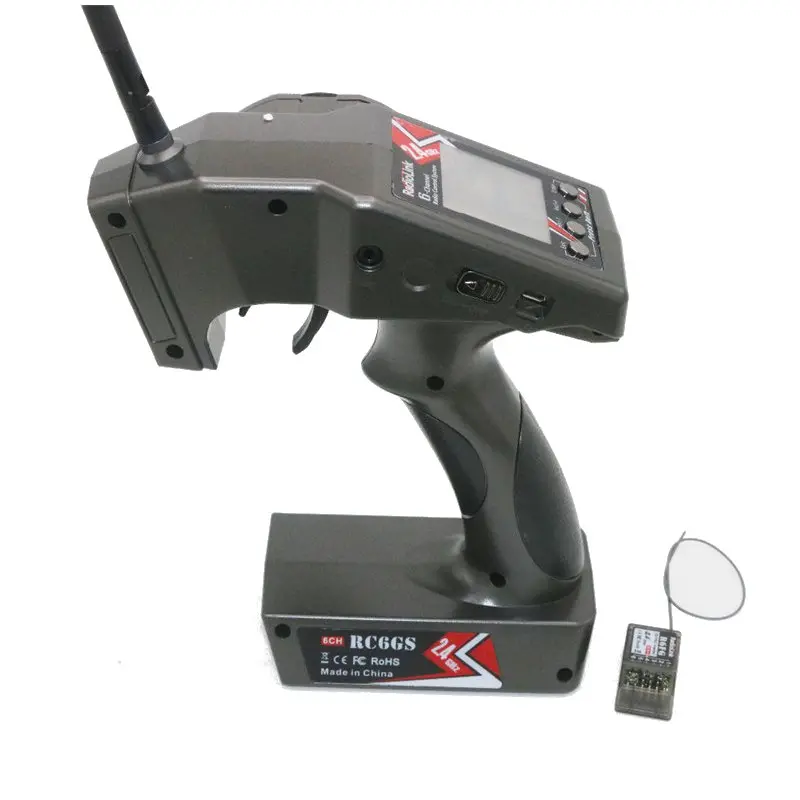

Radiolink RC6GS 2.4GHz 6-Channel Radio Controller with Integrated Gyro Receiver for RC Boats & Cars

Description

Specification:

Description:
Size:RC6GS:213*117*115.5MM, R7FG-35*20*13MM Channel:6 Model:cars,boats Modulation mode: GFSK
Spread spectrum:FHSS 67 channels pseudo random frequency hopping
10 models memory storage Antenna length:106mm Control distance: more than 400 meters ground  LCD screen:128*64 resolution,LCD back light
Transmitter operating voltage:4.8-15V DV,4X 1.5V AA or 2S-4S Lithium battery Transmitter operating current:80-120mA
R6FG/R6F operating voltage:3.3-10V
R6FG/R6F operating current:30MA RF power:<20dbm Low voltage alert: yes( lower than 4.6V), can be set when using 2s-4s Li-Po battery Frequency :2.4Ghz ISM band (2400MHz-2483.5MHz) Channel resolution:4096,the regular jitter is 0.5us Work current:80-120mA Compatible Receivers:R7FG,R6F,R8EF.R8FM,R6FG,R8F,R6F and R4FGM
Parameters:
1.About the suitable battery:The JST connector of RC4GS/RC6GS can be easily adapted for various battery, including LiPo battery of 2S to 4S and 6pcs of AA  batteries. The voltage range is 4.8V to 15V.
2.This transmitter has telemetry function:RC4GS with firmware of V6.0.1 and above/RC6GS with firmware of V6.0.0 and above is capable of returning signal strength, RSSI, RX voltage. If work with RadioLink receiver R7FG/R8F, vehicle voltage can also be returned. However, telemetry of motor speed and temperature is NOT available yet.
3.RC4GS/RC6GS is a perfect remote to all types of on-road electric powered or gasoline cars and twin-engine cars, tracked vehicles, crawlers, drift cars, tractor trucks, nitro cars, mini cars, sailboats, fishing boats.
4.About setup dual esc with this transmitter:Select whicherver two preferred channels and  refer the PROGRAMMABLE MIX CONTROL setup part in the user manual of RC4GS/RC6GS or click below link for the detailed steps to setup mix control http://radiolink.com.cn/doce/programmable-dual-mix-control.html
5.
Package included:
1x Radiolink RC6GS Transmitter
1x R6FG giyroscope inside Receiver
1X Manual
,,,,,,,,,,,,
