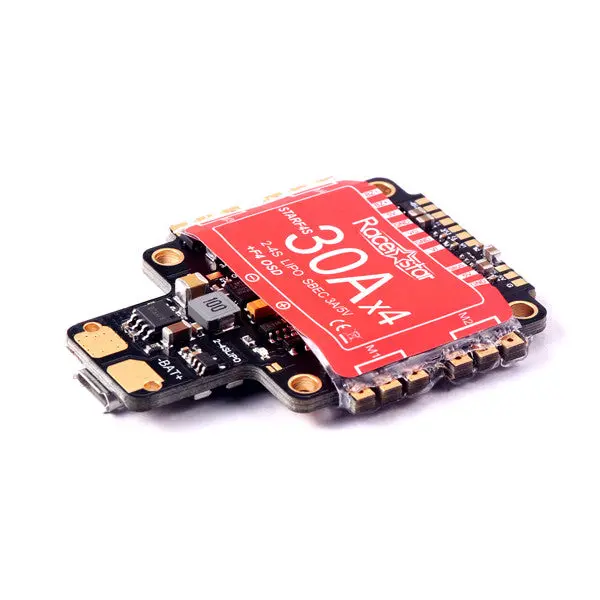

Racerstar STARF4S All-in-One Flight Controller – 30A BLHeli_S ESC, F4 Processor, OSD, BEC, and Current Sensor

Description

Racerstar StarF4S 30A Blheli_S Dshot 4 in 1 ESC AIO F4 OSD Flight Controller w/ BEC Current Sensor
Note:  The 4 installing holes were linked to the possitive of power. ( battery +)                Therefore, must use the plastic screws or any others non-conductive screws to install.                 If not, the FC/ESC/Receivers will be brunt.
Specification: ( Manual) Brand Name: Racerstar
Model: StarF4S Item Name: 30A Blheli_S 4 in 1  ESC AIO F4 OSD Flight Controller with BEC and Current Sensor Lipo Battery: 2-4S Con. Current: 30A Peak Current: 35A (10S) LBEC: 5V @3A Programming: YES   F4 FC + OSD + BEC + Current  Sensor Input Voltage: 2-4S Lipo   Output Voltage: 5V@1A Sensor: STM32F4 CPU ICM-MPU6000 Accelerometers and Gyroscopes SPI  MicroUSB socket Size(PCB): 36x36mm Weight: 22g               Features: – Built-in F4 Flight Control Board integrated with OSD  – BB2, 48MHZ Chip  – Blheli_S Firmware,  – 4 in 1 ESC, Super small size (36*36mm) and light weight, easy to install and use – With 5V 3A LBEC – With Current Sensor  -Support 2-4S Lipo Battery – Support Oneshot42, Oneshot125, Multishot  and 16.5 Dshot600 – All codes use damped light mode.Damped light does regenerative braking, causing very fast motor retardation, and inherently  also does     active freewheeling.   Package Included: 1x Racerstar 30A 4 in 1 ESC Buit-in F4 OSD FC 2x Cable 1x bag of screws 1x Manual
,,,,,
