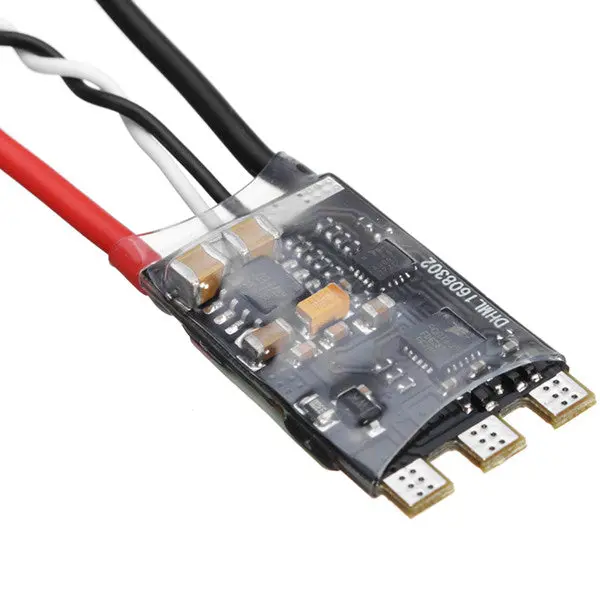

Racerstar RS30A Lite ESC – 30A BLHeli_S Firmware ESC Supporting DShot150/300 for 2–4S FPV Drones

Description

Racerstar RS30A Lite 30A Blheli_S BB1 2-4S Brushless ESC Support Oneshot42 Dshot150 Dshot300








Specification:
Brand Name: Racerstar
Model: RS30A Lite
Item Name: 30A Blheli_S BB1 2-4S Brushless ESC
Input Voltage: 2-4S
Con.Current:30A
Peak Current(10s):35A
BEC:NO
Programming :YES
Net Weight: 6g
Size:26*17mm
Features:
-Diffirent mos from the Racerstar RS Series esc.
– BLHeli_S is designed for superior performance in multirotors, and uses hardware generated motor pwm for smooth throttle response and silent operation
– Chips on BB1, 24MHZ .
– Small size combined with light weight.
-All codes use damped light mode.Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling
Package Included:
1x 30A ESC
1x Manual
