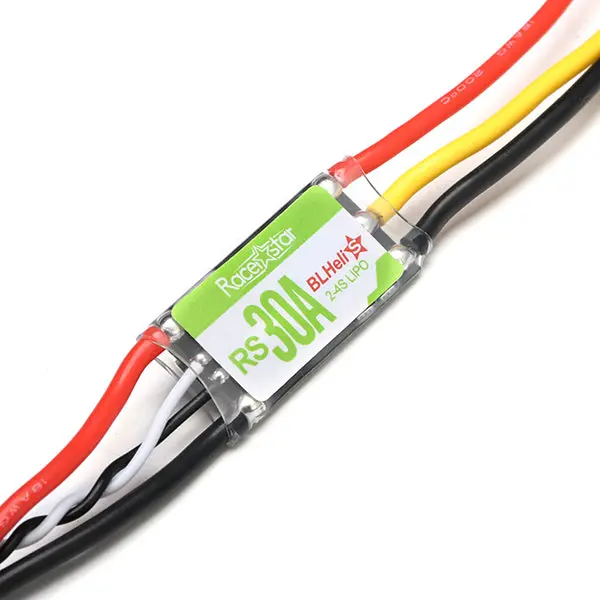

Racerstar RS30A BLHeli_S Opto ESC – 30A Brushless Speed Controller for 2S–4S FPV Racing Drones

Description

Racerstar RS30A 30A Blheli_S OPTO 2-4S ESC Support  16.5  Dshot150 Dshot300 for FPV Racing
Test video took by our customer
Specification:
Brand Name: Racerstar
Item Name: Racerstar 30A Blheli_s Electronic Speed Controller
Model: RS30A
Input Voltage: 2-4S
Con.Current:30A
Peak Current(10s):35A
BEC:NO
Programming :YES
Weight:9.1g
Size(PCB):28*13mm
Features:
-with Blheli_S firmware
-with 24MHz BB1 Clip
-Support Oneshot42,Multishot, Dshot150 and Dshot300
-Small size and light weight
How to Flash the ESC?  Please click here
-Rev 16.2 Fixed bug that prevented temperature protection
-Improved robustness to very high input signal rates
-Beeps can be turned off by programming beep strength to 1
-Throttle cal diffirence is checked to be above required minimum before storing
-Throttle cal max is not stored untill successful min throttle cal.
Package Included:
1x Racerstar 30A ESC
,,,,
