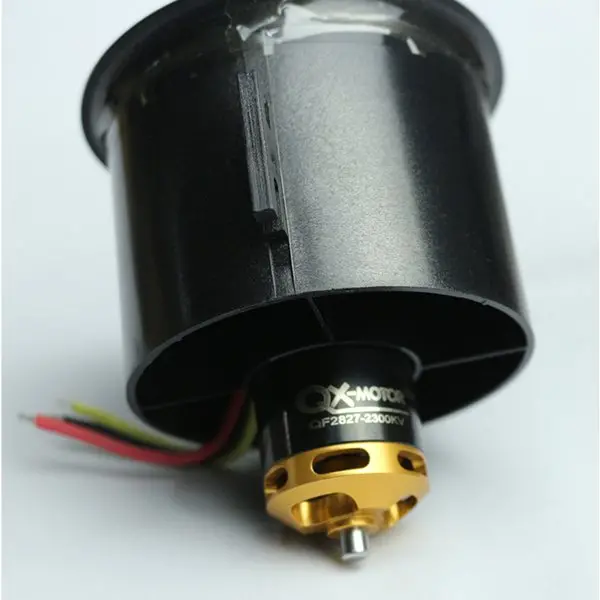

QX-Motor 70mm 6 Blades EDF Unit With QF2827 2300KV/3500KV Brushless Motor
Description:
Brand Name: QX-Motor
Item Name: EDF unit with brushless motor set
EDF Unit: 70mm 6 blades
Brushless Motor: QF2827-2300KV,QF2827-3500KV(optional)
Specifications of 2300KV Motor:
| KV | 2300 | Idle Current @10.0V | 1.3A |
| Configuration | 12N8P | No.of Cells(Lipo) | 6S |
| Stator Diameter | 22mm | Max Continuons Current(A)/60s | 45A |
| Stator Length | 27mm | Max Continuous Power(W)/60s | 1000W |
| Shaft Diameter | Φ4mm | Max Efficiency | >71% |
| Motor Dimension | 28x48mm | Internal Resistance | 0.028ohMs |
| Weight | 107 | Recom. ESC | 50A |
Tested With 50A ESC:
| Prop | Volts(V) | Amps(A) | Watts(W) | Thrust(g) | Thrust(oz) | Efficiency(g/w) | Efficiency(oz/w) |
| 70FAN | 22.2 | 43.0 | 954.6 | 1900 | 67.02 | 1.99 | 0.07 |
Specifications of 3500KV Motor:
| KV | 3500 | Idle Current @10.0V | 1.3A |
| Configuration | 12N8P | No.of Cells(Lipo) | 3-4S |
| Stator Diameter | 22mm | Max Continuons Current(A)/60s | 70A |
| Stator Length | 27mm | Max Continuous Power(W)/60s | 1000W |
| Shaft Diameter | Φ4mm | Max Efficiency | >70.5% |
| Motor Dimension | 28x48mm | Internal Resistance | 0.012ohMs |
| Weight | 107 | Recom. ESC | 85A |
Tested With 100A ESC:
| Prop | Volts(V) | Amps(A) | Watts(W) | Thrust(g) | Thrust(oz) | Efficiency(g/w) | Efficiency(oz/w) |
| 70FAN | 11.1 | 54.0 | 599.4 | 1300 | 45.86 | 2.17 | 0.08 |
| 70FAN | 14.8 | 74.5 | 1102.6 | 1950 | 68.78 | 1.77 | 0.06 |
Package Included:
1x QX-Motor 70MM 6 Blades EDF Unit With QF2827 Brushless Motor
