PS2 Joystick-Controlled Smart Robot Tank Kit with UNO R3 and Motor Driver

Description

Introduction:

• This Arduino uno development kit, is designed based on the Arduino uno board, together with 2-channel & 16-channel servo shield board to drive the tank and 2WD car. In addition, There has wireless contoller and receiver, you can control the tank car via wireless control.
• Provide source code, App and user manual.
• More documents, pls see wiki: wiki.doit.am

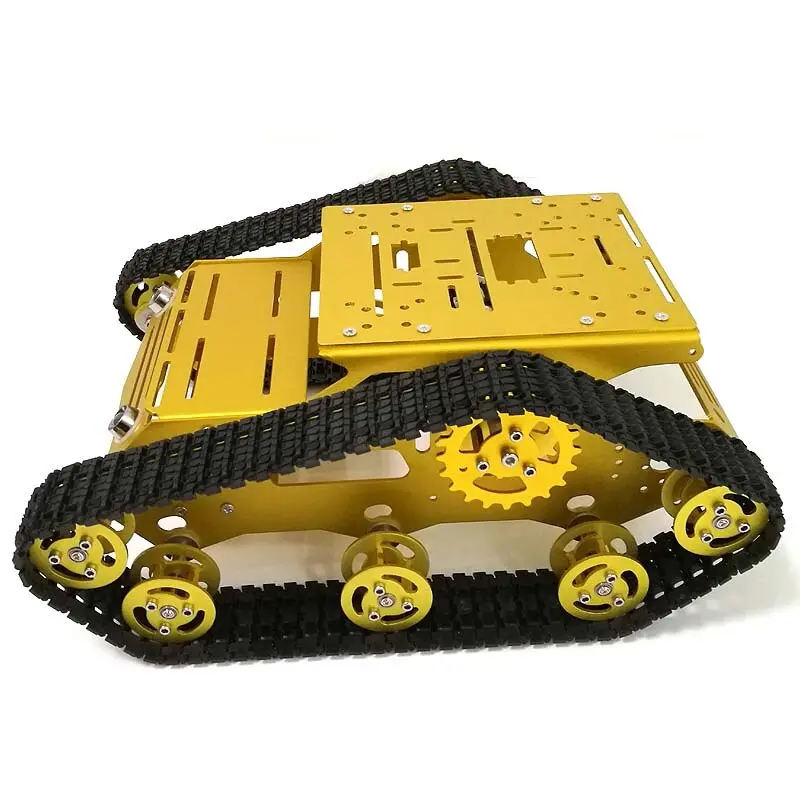

Tank Chassis Parameters>>

• Name: Y100 tank car chassis
• Car body: metal (Aluminum alloy)
• Color: Black/Silver/Golden/Blue
• Wheel: metal(Aluminum alloy)
• Weight: 1.16kg
• Tracks: plastic
• Size: 300* 240 *122mm (length * width * height)
• Working voltage: 7~12V

12V 330rpm motor>>

• Voltage: 12V DC

• RPM: 320RPM

• Current: 0.55A

• Diameter: 25mm

• Height (excl. shaft): 68mm

• Shaft length: 9.5mm

• Shaft diameter: 4mm

• Weight: 180g

• Brand new and unused

• Torque: 13kg.cm

• max effective point: load 4.0kg.cm/235rpm/2.5W/0.58A

• Max power: load 7kg.cm/215rpm/3.1w/0.65A

• Stall current: 4.8A

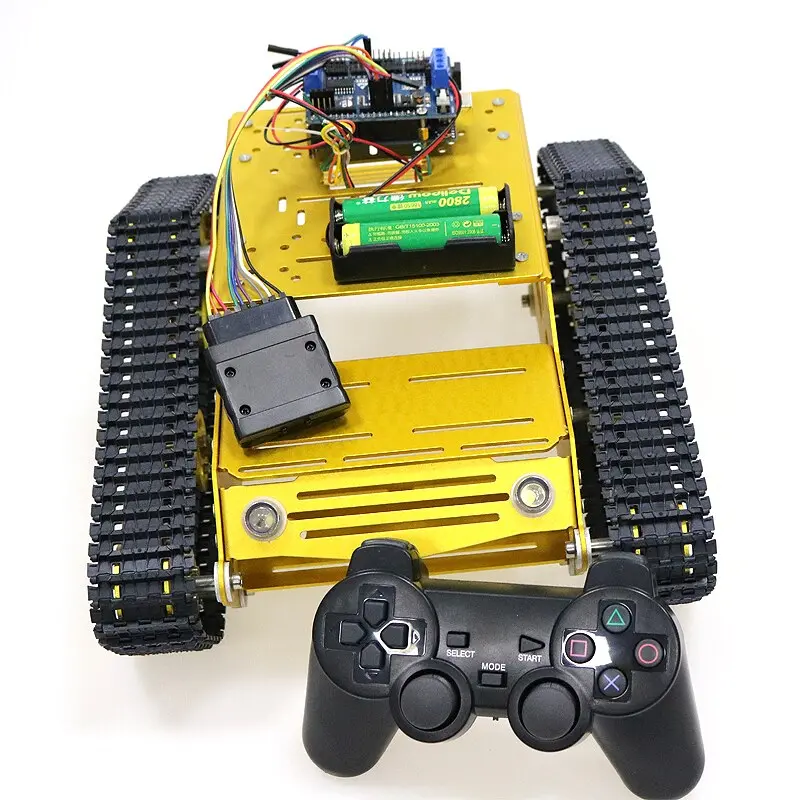

PS2 control kit>>

Accessory Parameters

Shipping list:
Only tank chassis:(The color as the picture showed )

• Y100 robot chassis: 1set(Motor: 12V motor)

Free send:

• Battery box
• Hexagon wrench

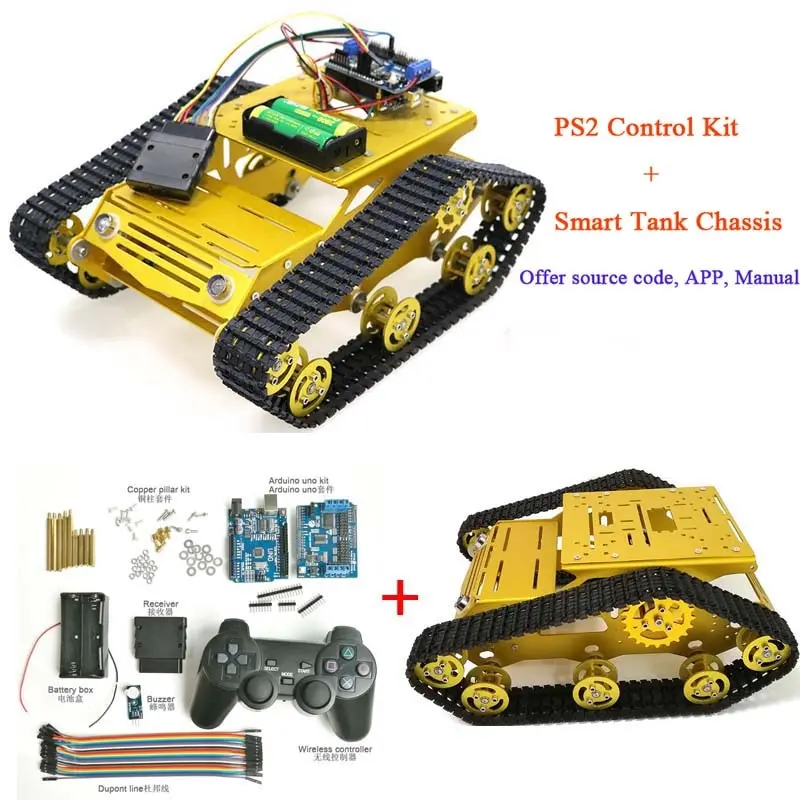

Full set:

• Tank chassis: 1 set
• Control kit: 1 set
• ​ Control kit:
  • 2-channel motor&16-channel servo shield board: 1pcs
  • UNO board: 1pcs
  • USB Cable: 1pcs
  • Wireless controller: 1pcs
  • Receiver: 1pcs
  • Active buzzer: 1pcs
  • Copper pillar kit: 1set
  • Battery box: 1pcs
  • Dupont line: 1pcs
  •

Note:

• For the convenience of transport, the tank chassis is unassembled.
• NOT INClUDED THE BATTERY.
