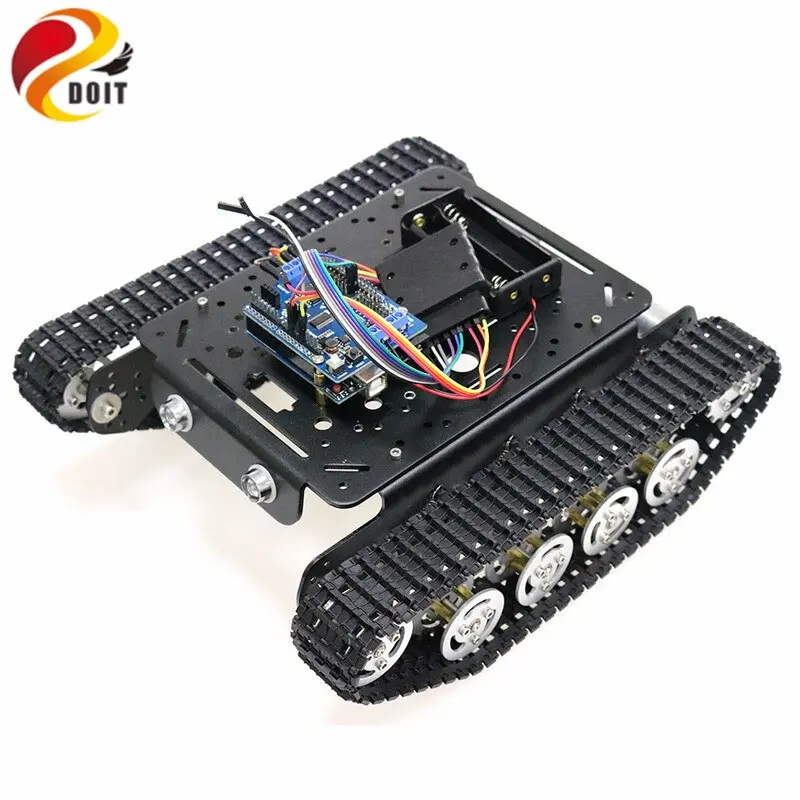

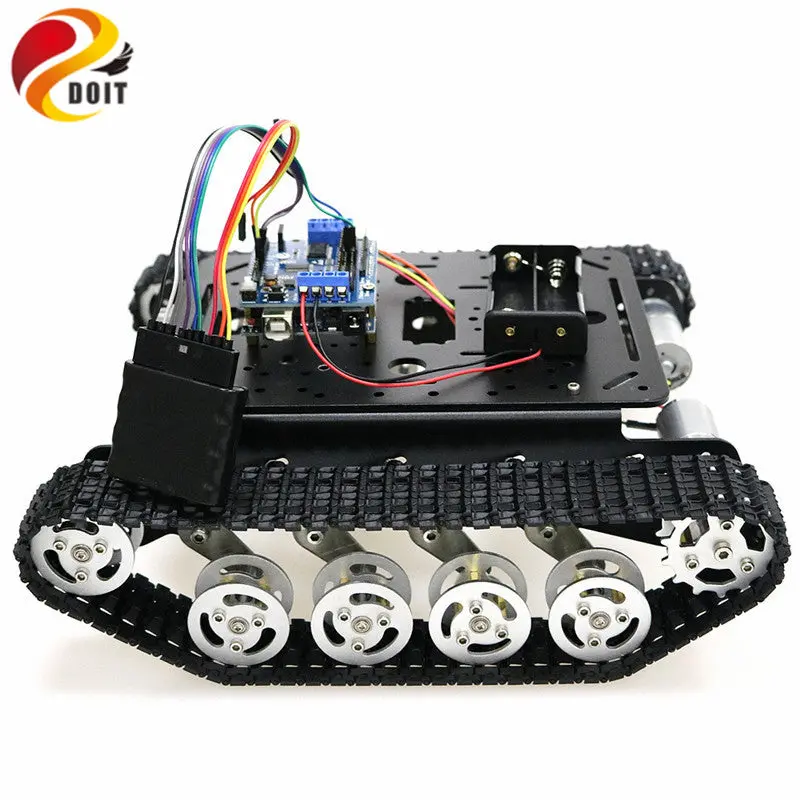

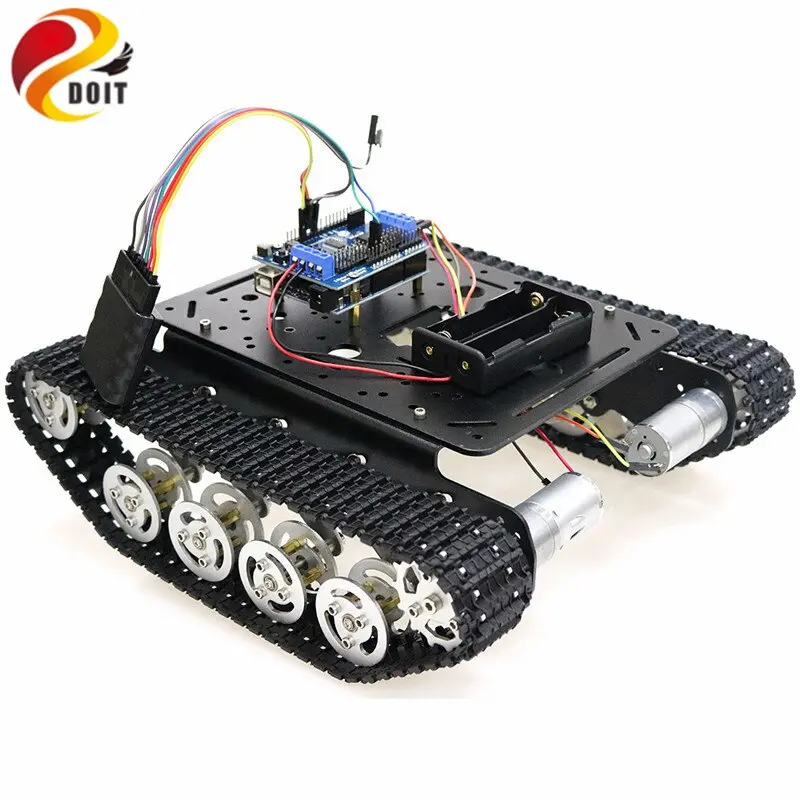

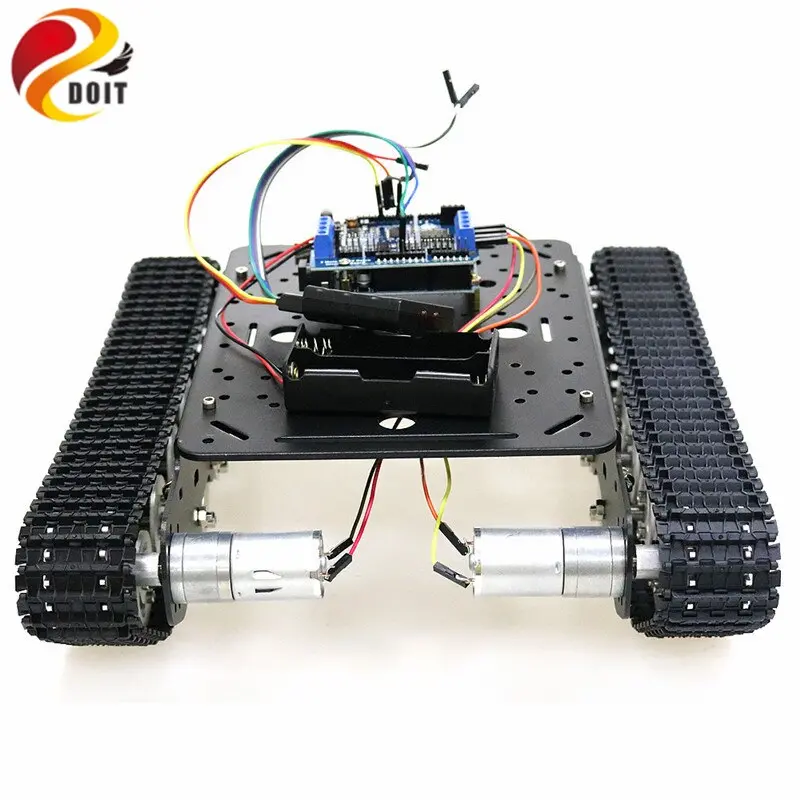

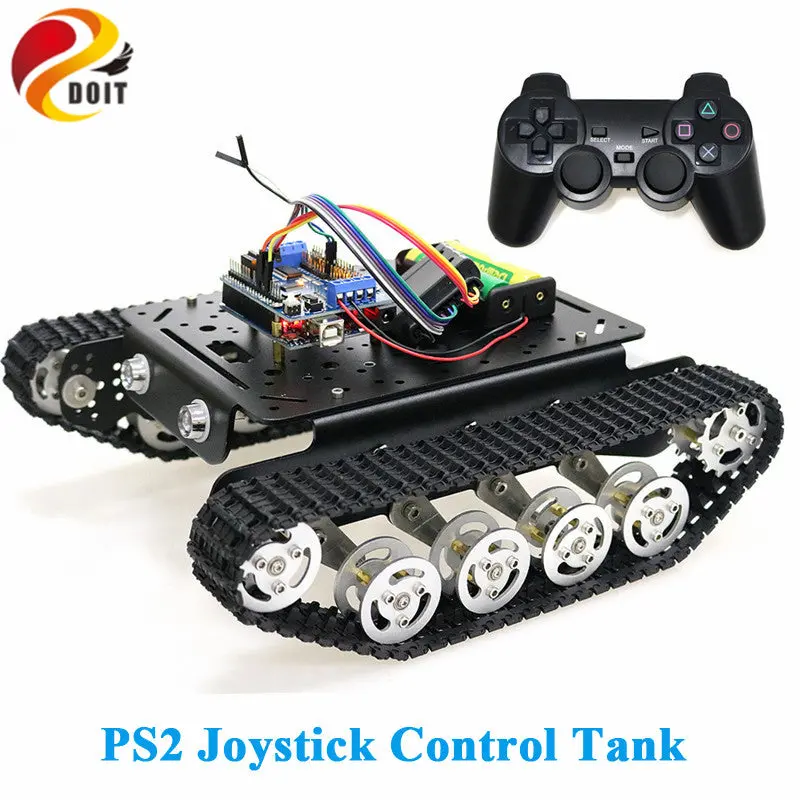

PS2 Joystick-Controlled Smart Robot Tank – Dual DC Motor Chassis with UNO & Motor Driver Board

Description

Introduction:

• This Arduino uno development kit, is designed based on the Arduino uno board, together with 2-channel & 16-channel servo shield board to drive the tank and 2WD car. In addition, There has wireless contoller and receiver, you can control the tank car via wireless control.
• Provide source code, App and user manual.
• More documents, pls see wiki: wiki.doit.am

Parameters:

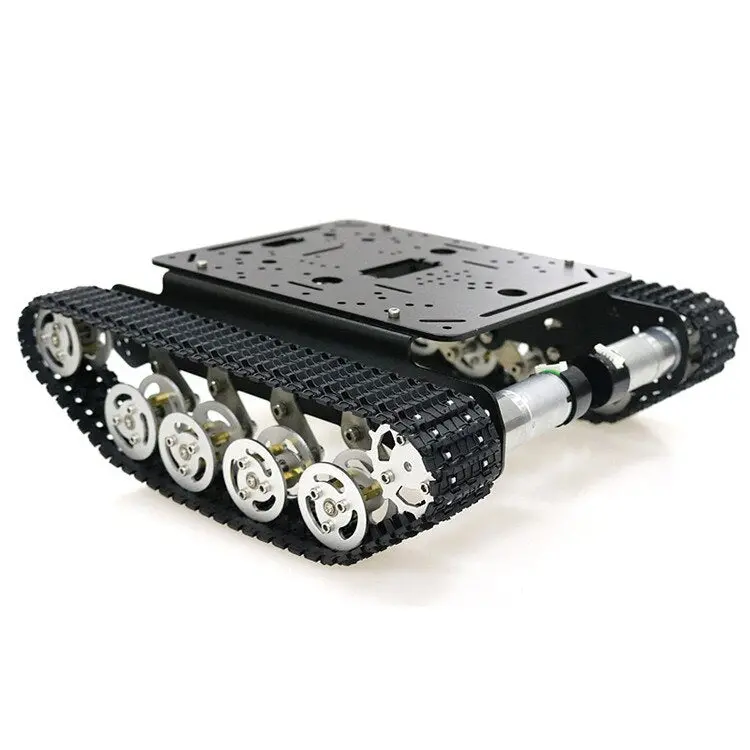

• Name: TS100 Intelligent tracked car/tank chassis

• Material: aluminum alloy

• Wheel: aluminum alloy

• Track: engineering plastic

• Product size: about 275*190*95mm (length * width * height)

• Weight: 1100g

• Color: golden yellow/silver/black

• More documents, pls see the link: wiki.doit.am

Motor parameters(25mm 9V DC Motor)>>:

• Name: 25mm gear motor

• Output speed: 150±10%rpm

• No_load Current: 200mA (Max)

• Stall current: 4500mA(max)

• Stall torque: 9.5kgNaN

• Rated speed: 100±10%rpm

• Rated torque: 3000gNaN

• Rated Current: 1200mA (Max)

• Noise: 56dB

• Working voltage: 9V

• Outside Shaft Length: 14.5mm

• Shaft End Play: 0.05-0.50mm

• Screw Size: M3.0

• Dia. Of Shaft phi4mm, D3.5

• encoder: 2 pulses/circle

PS2 Control kit>>

Shipping List:

Black/Silver/Yellow Full set:

• Chassis: 1 pcs(golden yellow/silver/black)

• Driving wheels: 2 pcs

• Bearing wheels: 10 pcs

• Track: 2 pcs(can be changed the length)

• DC 9V motor: 2 pcs

• Screws: 1 set

• PS2 Control kit: 1 set

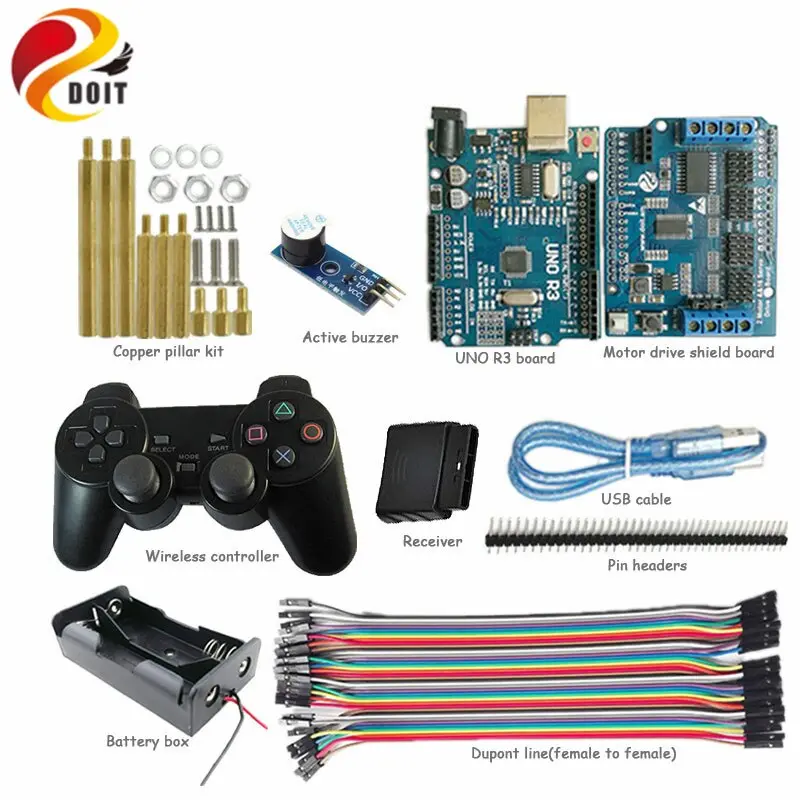

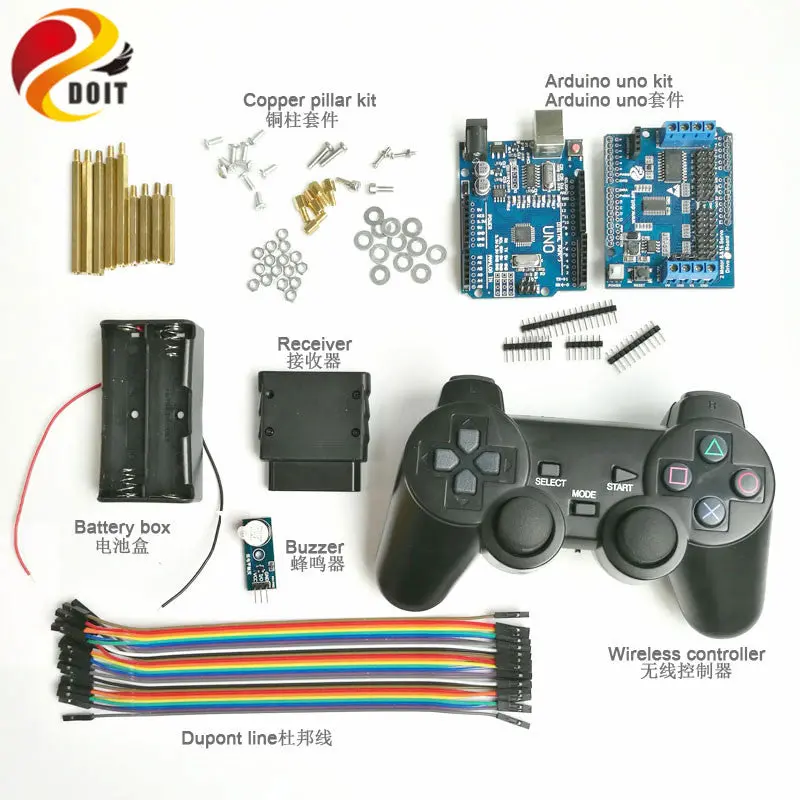

Only PS2 control kit:

• 2-channel motor&16-channel servo shield board: 1pcs
• UNO board: 1pcs
• USB Cable: 1pcs
• Wireless controller: 1pcs
• Receiver: 1pcs
• Active buzzer: 1pcs
• Copper pillar kit: 1set
• Battery box: 1pcs
• Dupont line: 1pcs

Black/Silver/Yellow 9V motor:

• Chassis: 1 pcs(golden yellow/silver/black)

• Driving wheels: 2 pcs

• Bearing wheels: 10 pcs

• Track: 2 pcs(can be changed the length)

• DC 9V motor: 2 pcs

• Screws: 1 set

Free:

• Hexagon wrench: 1set
• Battery box

Note:

• For the convenience of transport, the tank chassis is unassembled.
• NOT INClUDED THE BATTERY.

Images:

Size:
