PS2 Joystick-Controlled DIY Robot Tank Chassis – Dual 12V Motor Kit with Driver Board and Control Module (T101)

Description

More Tank Chassis, please Click here: MoreTank Chassis

Introduction:

• This Arduino uno development kit, is designed based on the Arduino uno board, together with 2-channel & 16-channel servo shield board to drive the tank and 2WD car. In addition, There has wireless contoller and receiver, you can control the tank car via wireless control.
• Provide source code, App and user manual.
• More documents, pls see wiki: wiki.doit.am

Tank Chassis Parameters

• Product Type: T101
• Product Size: 19 * 16.5 * 5.7cm (L * W * H)
• Product weight: 0.53kg
• Panel material: 2mm aluminum
• Surface treatment: sandblasting oxidation
• Track: Engineering Plastics
• Motor: 6-12V
• Wheels: Aluminum Alloy
•

Motor Parameters

Click here , More Motor

• Rated Voltage: DC12V
• No-load Current: 100mA
• Working voltage range: 6-12V
• No-load speed : 170-350r/min
• Weight: 100g
•

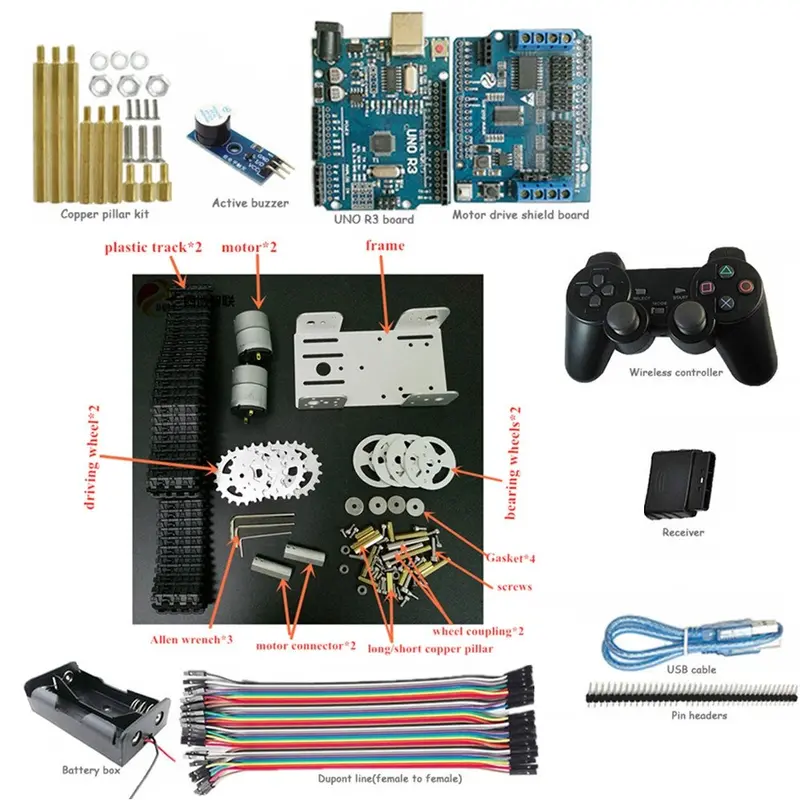

Shipping list:

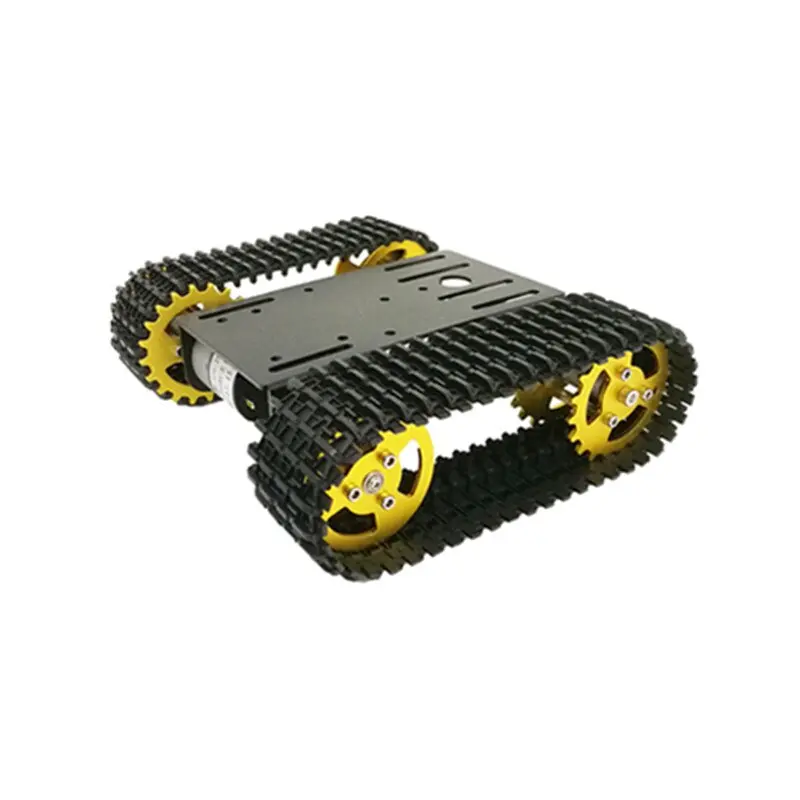

Only tank chassis:(The color as the picture showed )

• Panel: 1pcs
• Motor: 2pcs
• Track: 2pcs
• Non-shock absorption bearing wheel: 2pcs
• Non-shock absorption drive wheel: 2pcs
• Screw Accessories: 1 set
•

Free send:

• Battery box
• Hexagon wrench

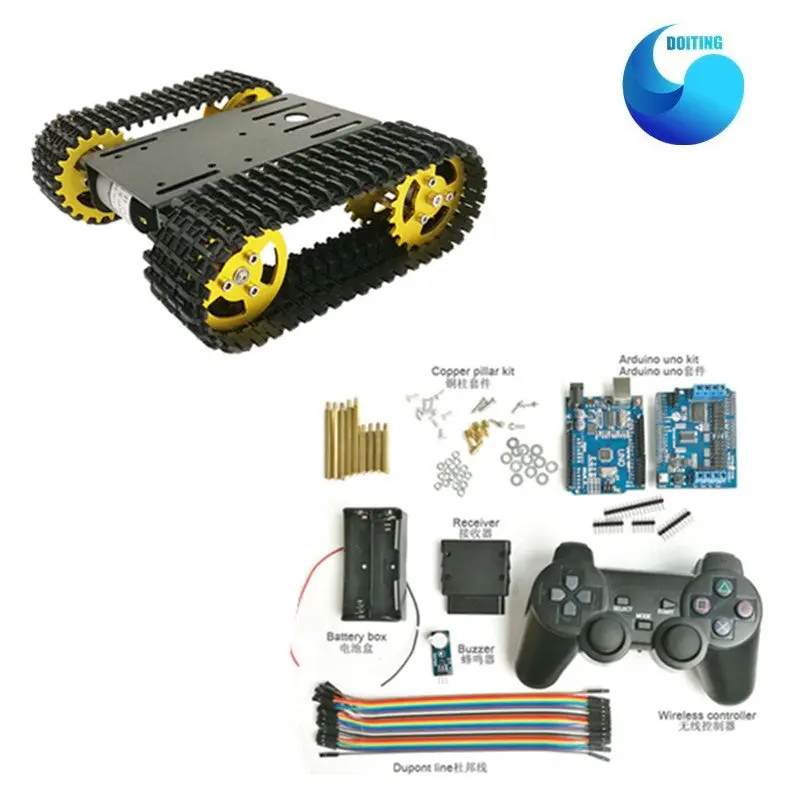

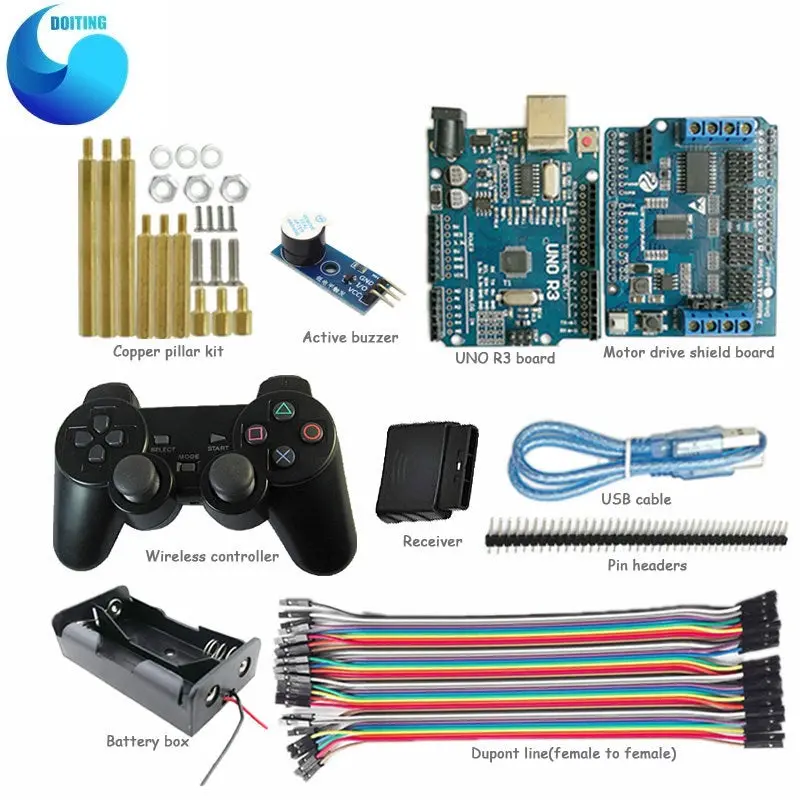

Only Control kit:

More Control Kit, Click here: More Control Kit

• 2-channel motor&16-channel servo shield board: 1pcs
• UNO board: 1pcs
• USB Cable: 1pcs
• Wireless controller: 1pcs
• Receiver: 1pcs
• Active buzzer: 1pcs
• Copper pillar kit: 1set
• Battery box: 1pcs
• Dupont line: 1pcs
•

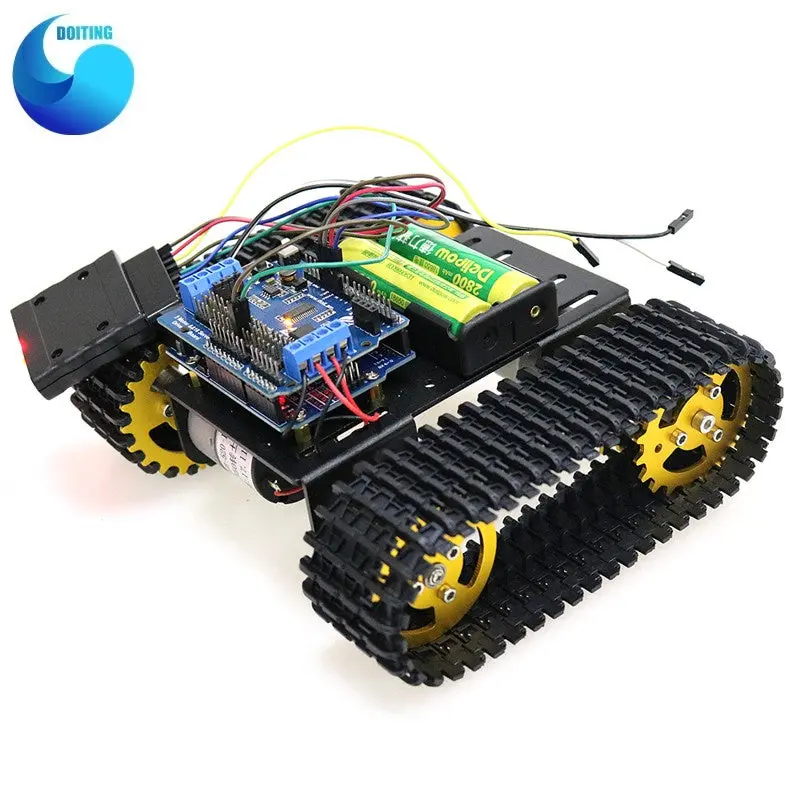

(Tank+Control)Full set:

• Tank chassis: 1 set
• Control kit: 1 set


Note:

• For the convenience of transport, the tank chassis is unassembled.
• NOT INClUDED THE BATTERY.

Images:
