Description
Description:
Brand Name: Partom
Item Name: FPV Transmitter + Receiver Combo

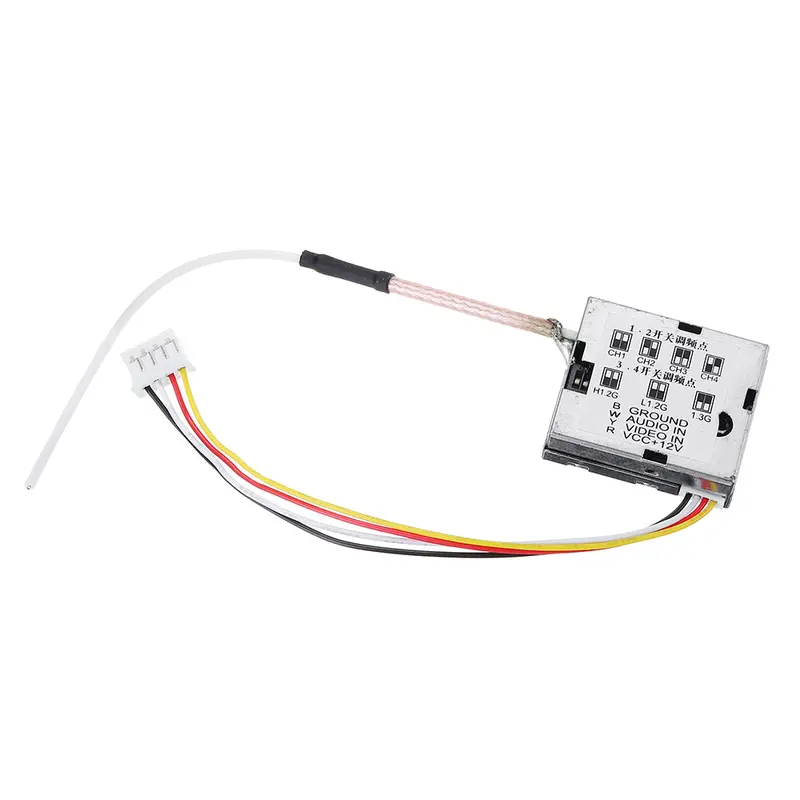

Specifications of FPV Transmitter:
Item No.: CQL-200TX
Frequency: 1.2GHz
Channel: 12
Power: 200mW
Baud Rate: 50000bps
Working Voltage: DC 12V
Dimension: 29x24x9mm
Weight: 15g
Transmission Signal: Video / Audio (Synchronize) Transmission Distance: 100-200m
Specifications of FPV Receiver:
Item No.: Fox-R02
Frequency: 1.2GHz
Channel: 12
Receive Signal: Video / Audio (Synchronize)
Sensitivity: -85DB
Voltage Input: DC12V Working Current: 250mA Video Output: 1Vp-p
Signal Output: 1Vp-p
Demodulation: FM
Operating Temperature: -20℃ ~ +60℃
Operating Humidity: 85%RH
Storage Temperature: -40℃ ~ +80℃ Size : 115x60x20mm Weight : 130g
Transmitter Frequency Table:
| Channel | Frequency | DIP Switch | |||
| 1 | 2 | 3 | 4 | ||
| 1 | 1060MHz | OFF | OFF | NO | OFF |
| 2 | 1100MHz | NO | OFF | NO | OFF |
| 3 | 1140MHz | NO | NO | NO | OFF |
| 4 | 1180MHz | OFF | NO | NO | OFF |
| 5 | 1080MHz | OFF | OFF | OFF | OFF |
| 6 | 1120MHz | NO | OFF | OFF | OFF |
| 7 | 1160MHz | NO | NO | OFF | OFF |
| 8 | 1200MHz | OFF | NO | OFF | OFF |
| 9 | 1240MHz | OFF | OFF | OFF | OFF |
| 10 | 1280MHz | NO | OFF | OFF | OFF |
| 11 | 1320MHz | NO | NO | OFF | OFF |
| 12 | 1360MHz | OFF | NO | OFF | OFF |
Receiver Frequency Table:
| Channel | Frequency | Channel | Frequency | Channel | Frequency |
| CH0 | 0.910G | CH1 | 0.980G | CH2 | 1.010G |
| CH3 | 1.040G | CH4 | 1.080G | CH5 | 1.120G |
| CH6 | 1.160G | CH7 | 1.200G | CH8 | 1.240G |
| CH9 | 1.280G | CH10 | 1.320G | CH11 | 1.360G |

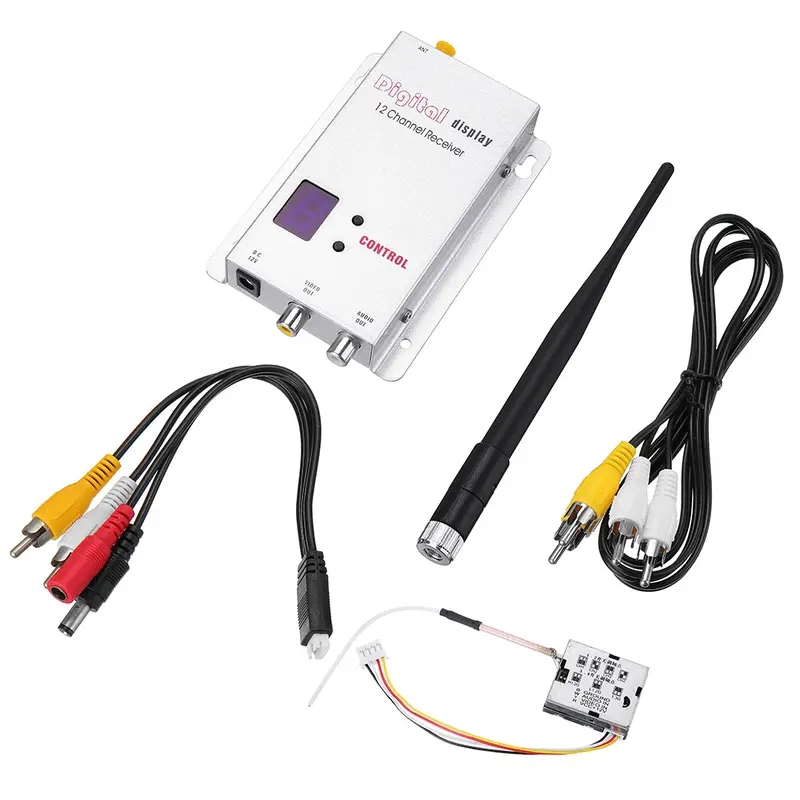

Package Included:
1x FPV Transmitter
1x FPV Receiver
1x Antenna
2x Cables
