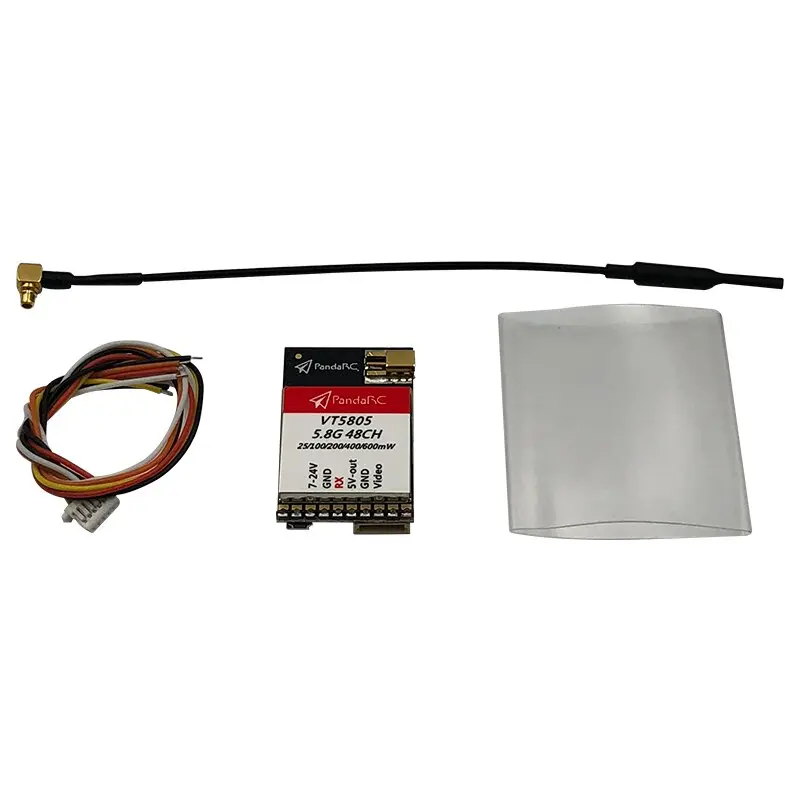

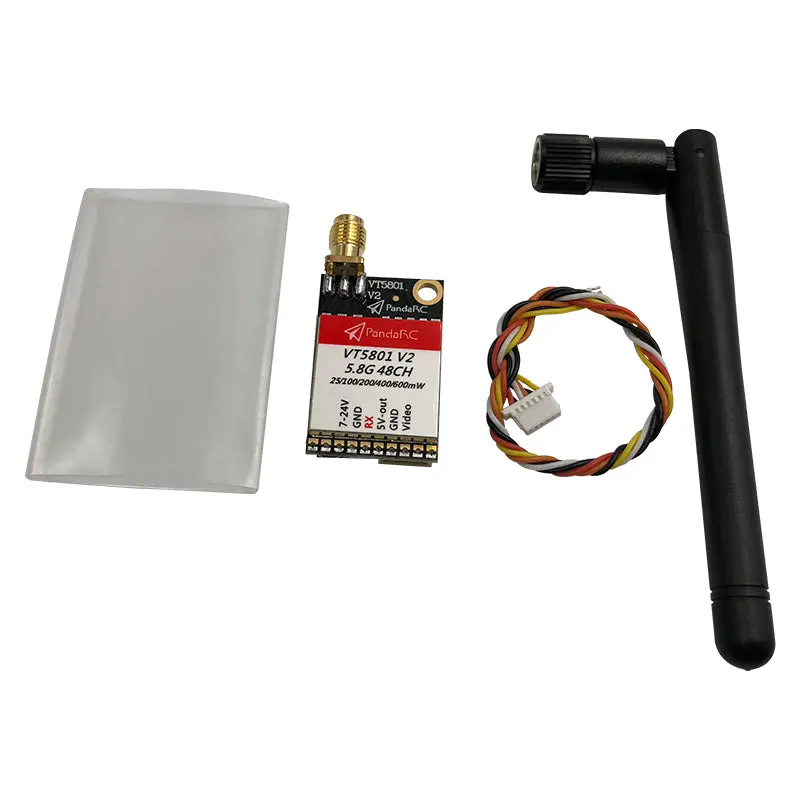

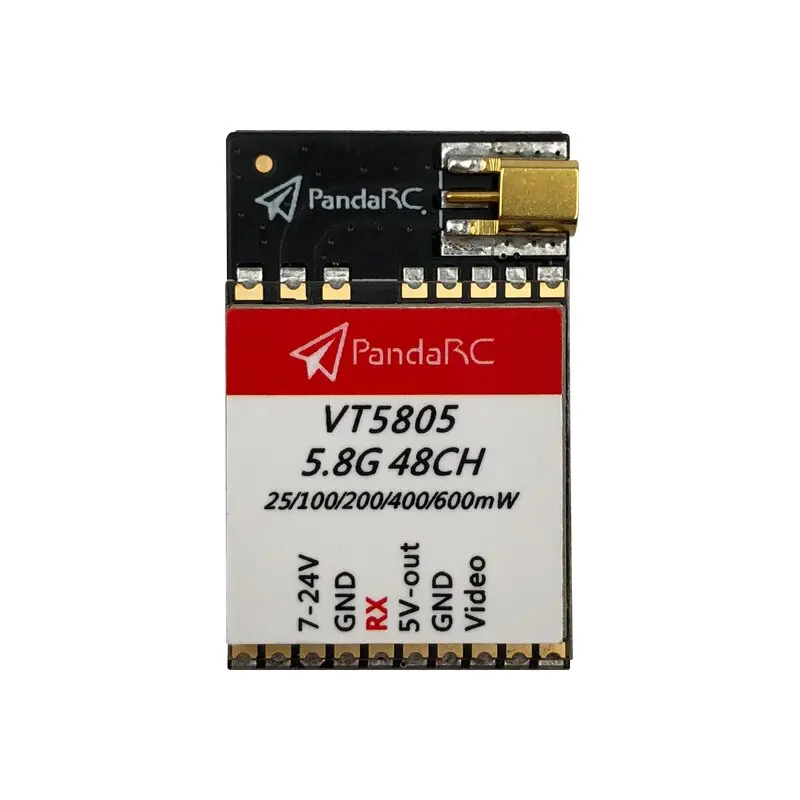

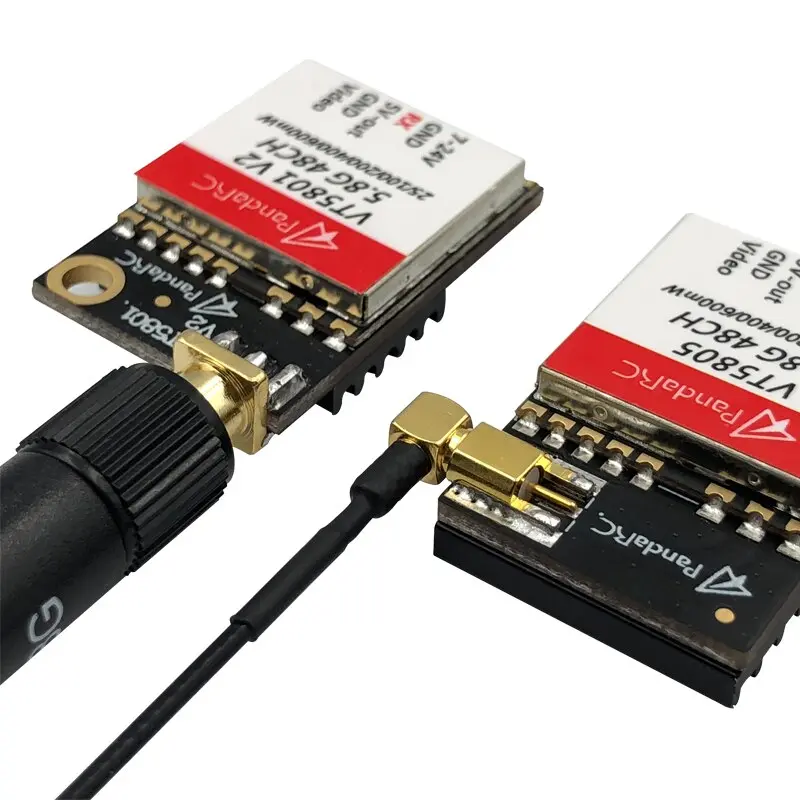

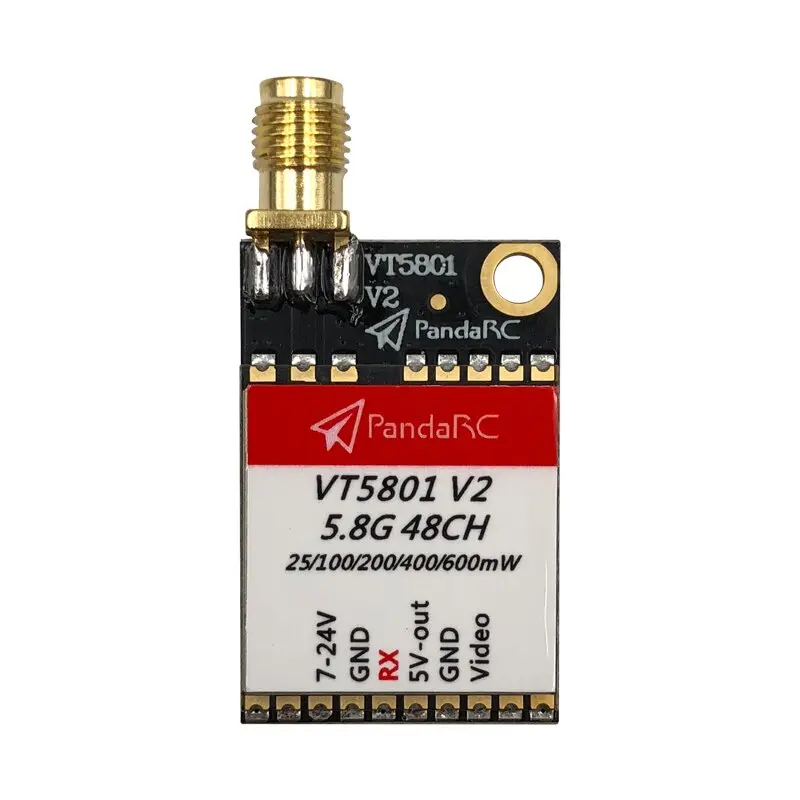

Pandarc VT5801 V2 / VT5804 / VT5805 5.8GHz FPV Video Transmitter – 48-Channel, 25–600mW Adjustable Power, OSD-Enabled, SMA/MMCX Antenna Support

Description

1. Performance characteristics:   The output power is stable and the transmission distance is long: > 0.5km@25mW, > 1km@200mW, > 2km@600mW (rod antenna);   Transmission power 5-stop switching: 25 mW/100 mW/200 mW/400 mW/600 mW;   Output 48 frequencies, and have 8 competition frequencies in Group E, using each other without interference;   Fast frequency locking, no interference with peers when switching on;   Self-checking function with output power;   Full video format: NTSC/PAL;   The input voltage range is wide and the power consumption is low: 7V-24V, +12V/260mA@600mW;   Small size: 20mm * 31mm * 9mm;   Light weight: <9g (no antenna included);       2.Performance indicators:

.

Use precautions:   Make sure that the output terminal has an antenna installed before charging, so as not to damage the internal components.   Attention should be paid to the correct input voltage within the specified range, so as not to damage the internal components.   If the antenna is replaced, the standing wave antenna and the improved antenna should be selected to obtain a longer transmission distance.   Pay attention to static electricity protection during transshipment, installation and use.     Specification:

Condition: 100% Brand New
Item Type: RC Accessory

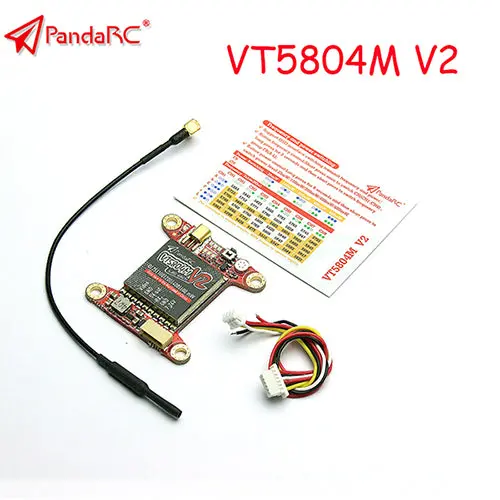

Model: VT5804M V2
Material: Plastic + Electronic Components
Color: As Shown in the Picture
Weight: Approx. 12g
Input Voltage Range: 7-24V
Frequency: 48CH
Output Power: 0mW/25mW/100mW/200mW/400mW/600mW Switchable
Transmission Distance: ≥0.5km 25mW, ≥1km 200mW, ≥2km 600mW

Specification:

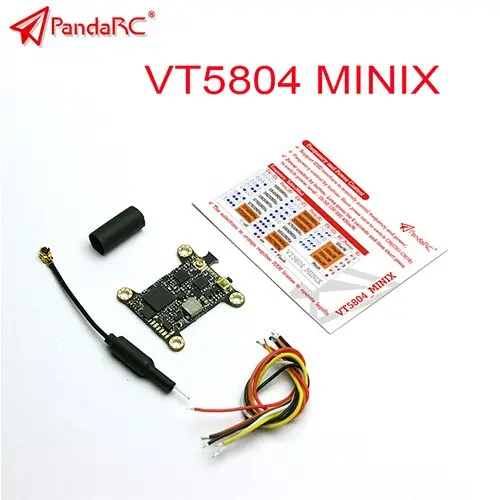

1. The output power is stable and the transmission distance is long: > 0.5km@25mW, > 1km@200mW, > 1.5km@400mW (original antenna);   2. 6-stop transmission power switching: 0 mW/25 mW/50 mW/100 mW/200 mW/400 mW;   3. Support OSD interface to adjust transmission frequency and power;   4. Output 16 frequency points, including group A and group R;   5. Fast frequency locking and no disturbance to peers when switching on.   6. Self-checking function of output power;   7. Full video format: NTSC/PAL;   8. The input voltage range is wide and the power consumption is low: 6V-26V, +12V/240mA@400mW;   9. Small size: 24mm * 24mm * 3mm, installation hole 20mm * 20MM (4-M2);   10. Light weight: <3g (no antenna included);

Specification:

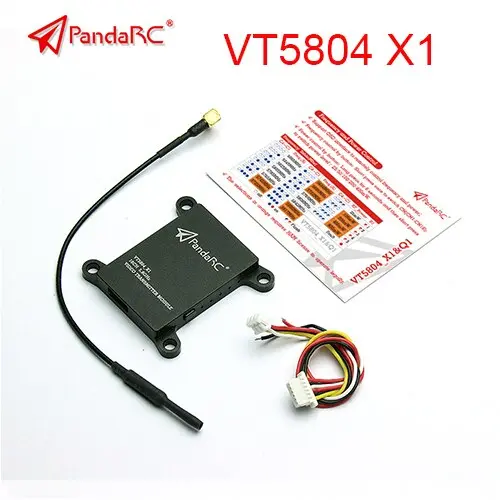

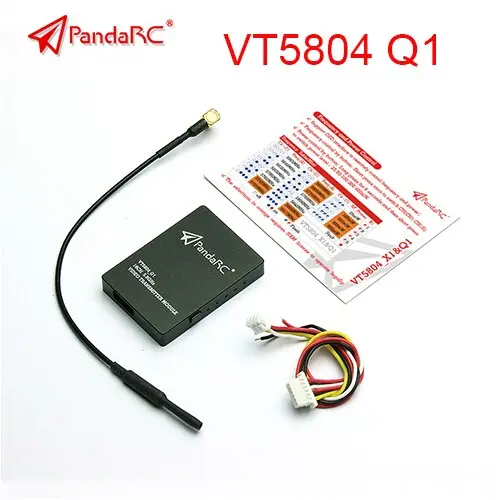

Radio Frequency Output Impedance：50 Ohm output power : 28.5-29.5dBm input voltage : 6-26V Video Bandwidth：8MHZ Audio carrier frequency：6.5MHZ Video input level：0.8-1.2 VP-P Audio input level：0.5-2.0 VP-P Audio input impedance：10K Ohm Antenna interface : MMCX weight : (Q1/X1)  9g Size : VT5804-X1 36*36*5.5MM           VT5804-Q1 34*24*5.5MM
