NOXE V1 Betaflight F4 All-in-One Flight Controller – 20×20mm, OSD, 5V/8V BEC, Barometer & Blackbox Support

Description

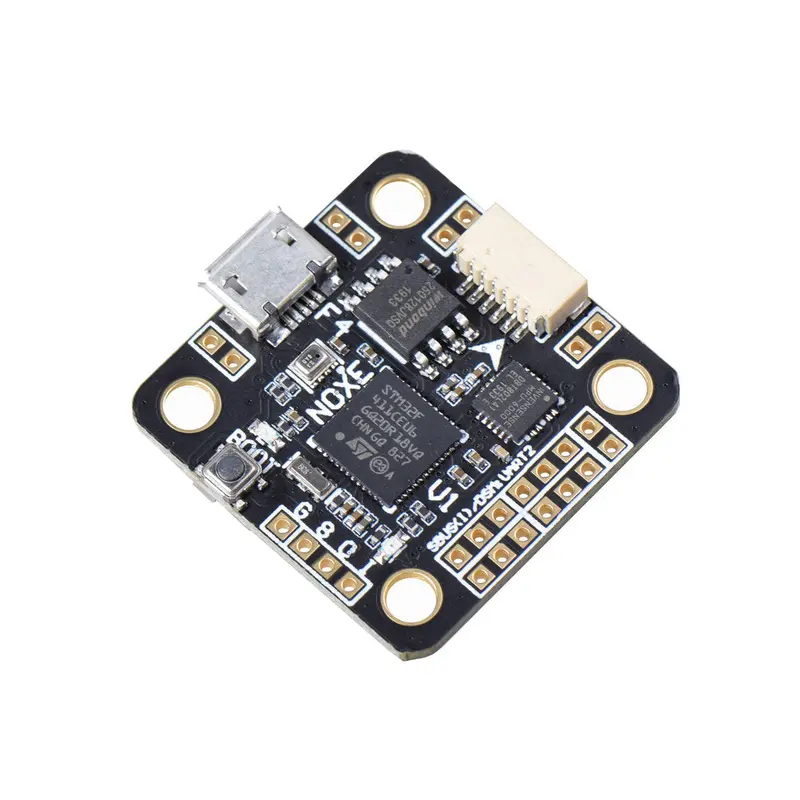

20x20mm Betaflight F4 Noxe V1 Flight Controller AIO OSD 5V 8V BEC for RC Drone
Upgrade:
Firmware: betaflight_4.1.0_FLYWOOF411.hex
2. 1.6mm Thickness PCB
3. Add 8V 3A dependent BEC
4. The black box is upgraded to 16MB
5. Add IIC (SDA, SCL) Port
6. Add CURT (current signal) input port
7. Remove PPM Port
8. Support 2-6S Lipo input
Specification:
Item Name: Betaflight F4 Flight Controller
Model: F4 Nox4 V1
Version: Standard Version / Deluxe Version
Standard Version: Without  Barometer and Blackbox
Deluxe Version: With Barometer and Blackbox
CPU: STM32F411C
MPU: MPU6000
Input Voltage: Support 2-6S Lipo Input
Firmware: betaflight_4.1.0_FLYWOOF411.hex
Built-In Betaflight OSD
Built-in 5V@2.5A & 8V@3A BEC
Support Spektrum 1024 /2048 , SBUS, IBUS, PPM,
and 3.3V Spektrum Satellite receiver
Size: 27x27mm
Mounting Hole: 20x20mm , M2.5
Weight: 4.3g
Application: for less than 150mm frame kit
Diagram Picture Instruction:
GND: Ground 4.5V: Receiver power supply
+5V:  BEC 5V 2.5A cont. 8V:    BEC 8V 3A cont. 3.3V:  LDO3.3V,MAX.150MA VBAT+:   share Lipo power 7.4V-26V(2-6S) PWM1,PWM2,PWM3,PWM4:  ESC Signal VOUT:  Video output for video Transmitter VIN:  Camera Video input BUZ+ BUZ-:  General active 5V buzzer for dbuz 5V LED:  LED_Strip WS2812 LED signal RX1 & TX1:   UART1 RX2 & TX2:   UART2 RX2(DSM/IBUS): DSM2/DSMX/IBUS RC Receive(Software Settings RX2) SBUS: SBUS RC Receive (Software Settings RX2) RSSI:Receiver signal strength CAM-C: Camera control CURT:Current signal input SDA & SCL:IIC
Package Included:
1x F4 Noxe V1 Flight Controller
1x Cable
