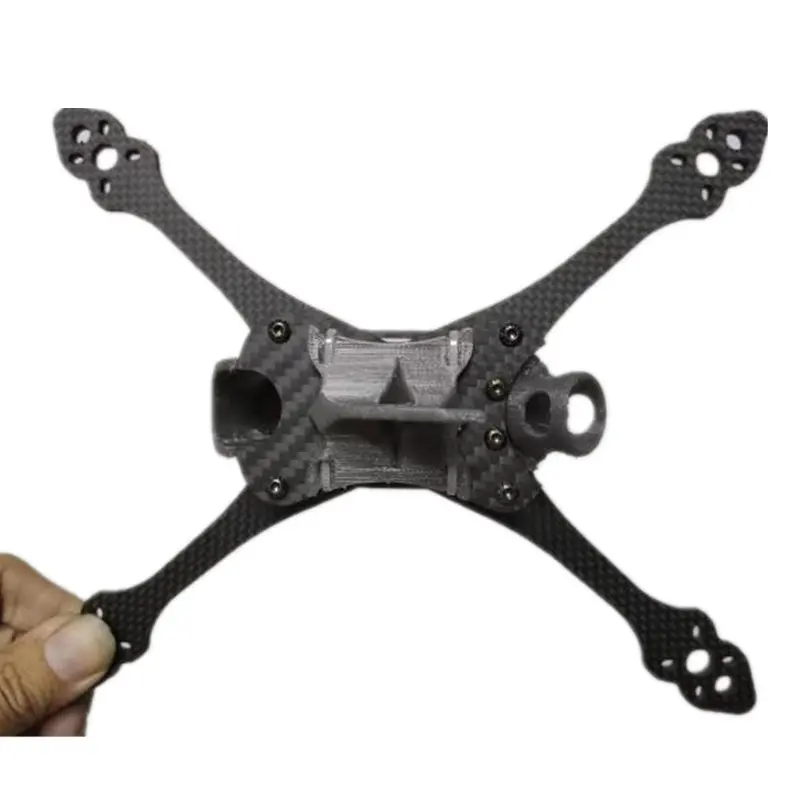

Modular 5-Inch FPV Racing Frame Kit – Adjustable 225–229mm Wheelbase, 4mm Arm Thickness

Description

225mm-229mm Changable Wheelbase 4mm Arm 5 Inch Frame Kit for RC Drone FPV Racing
Specification:
Item Name: 225mm-229mm Changable Wheelbase Racing Frame Kit
Wheelbase: 225mm-229mm ( Be Changable)
Material: 3K Carbon Fiber
Arm Plate Thickness: 4mm
Top Plate Thickness: 2mm
Center Plate Thickness: 3mm
Bottom Plate Thickness: 2mm
Standoff Height: 30mm
Camera Mounting Width: 19mm
(Comes With 3D Printing TPU Camera Mount in 22mm Width)
Weight: 91g
Recommend Parts:
Flight Controller: 20x20mm / 30.5×30.5mm F3/ F4 Flight Controller
Brushless ESC: 20-40A 4in1 ESC
Brushless Motor: 2205/2207/2306 Motor
Propeller: 5 Inch Propeller FPV Camera: 19mm Or 22mm Mounting width camera
The Following Parts are Compatible: ( Not Included) FC & ESC Stack: DYS 30.5×30.5mm Omnibus F4 Pro FC + F30A 4in1 BL_S ESC   Brushless Motor: DYS Samguk Wei 2207 2300KV 2600KV 3-4S Brushless Motor   Propeller: Kingkong 5045 5 Inch 3-Blade Propeller 10 CW & 10 CCW   Lipo Battery: GaoNeng GNB 4S 15.2V 1300mAh 120C 240C 4.35V HV Lipo Battery
Package Included:
1x 225mm-229mm Changable Wheelbase Frame Kit
