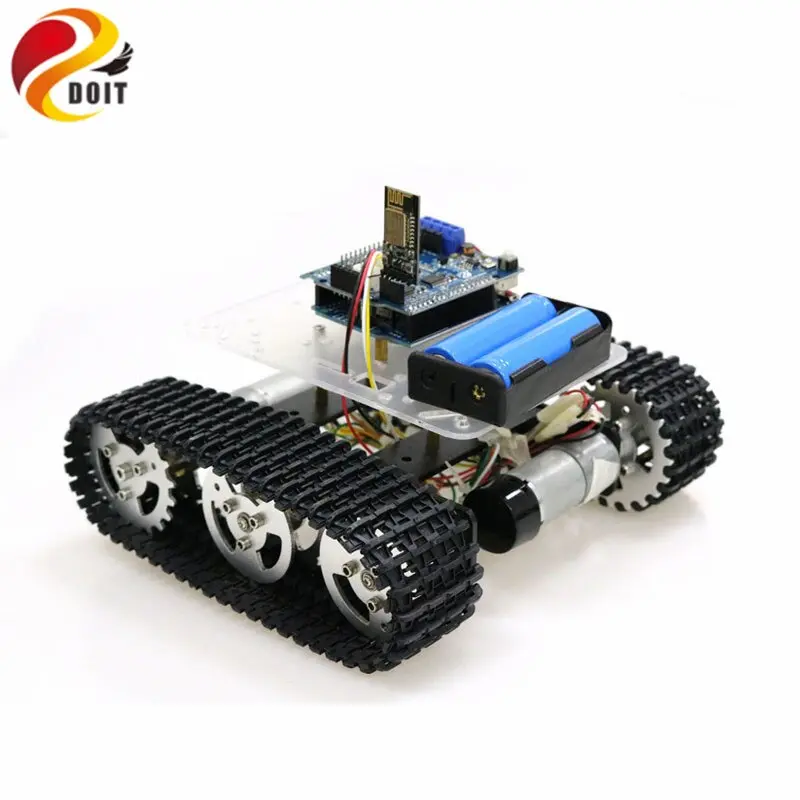

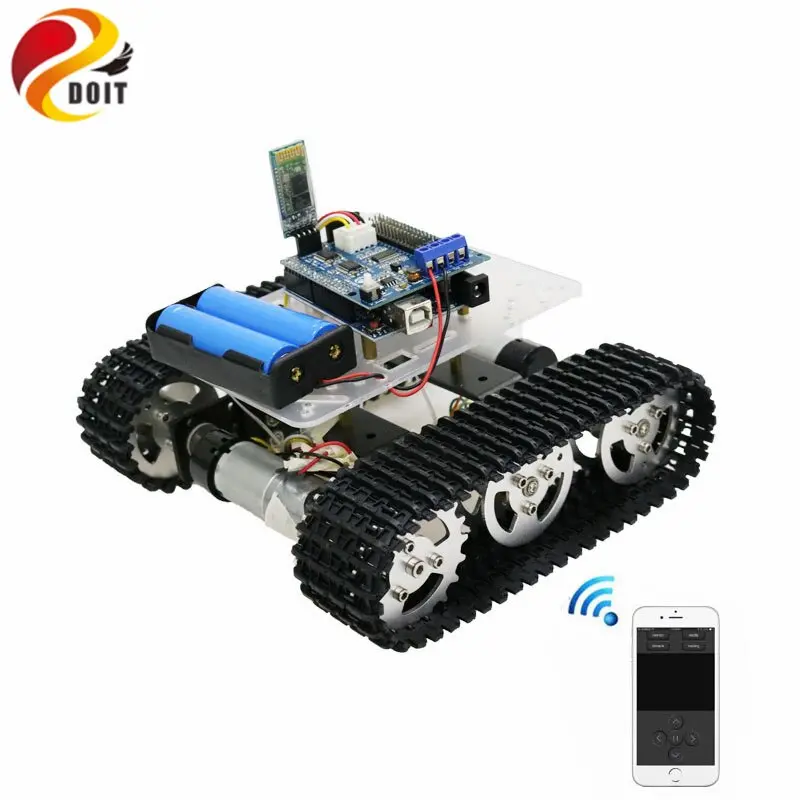

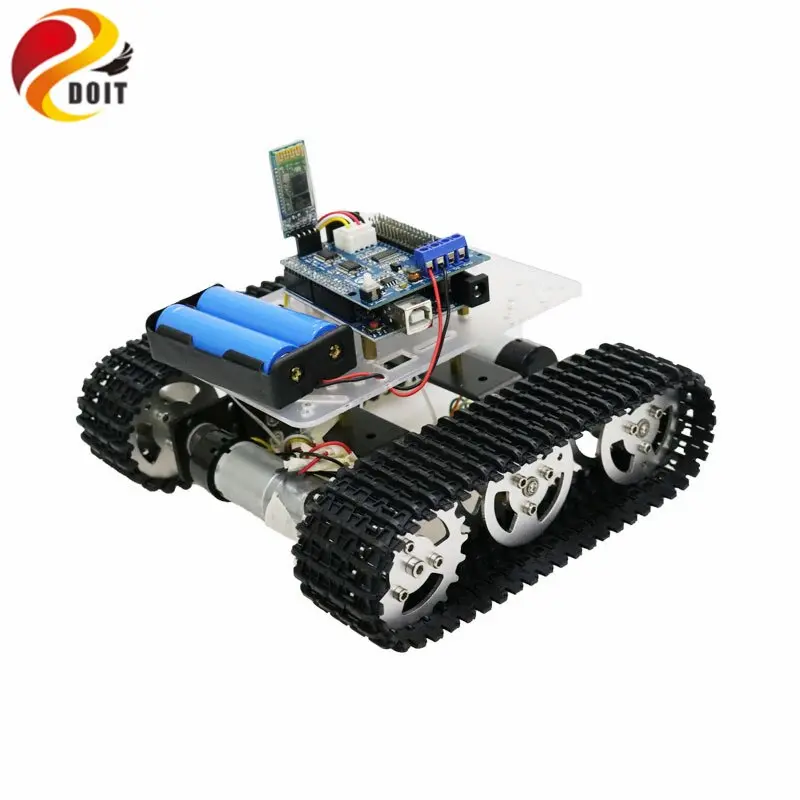

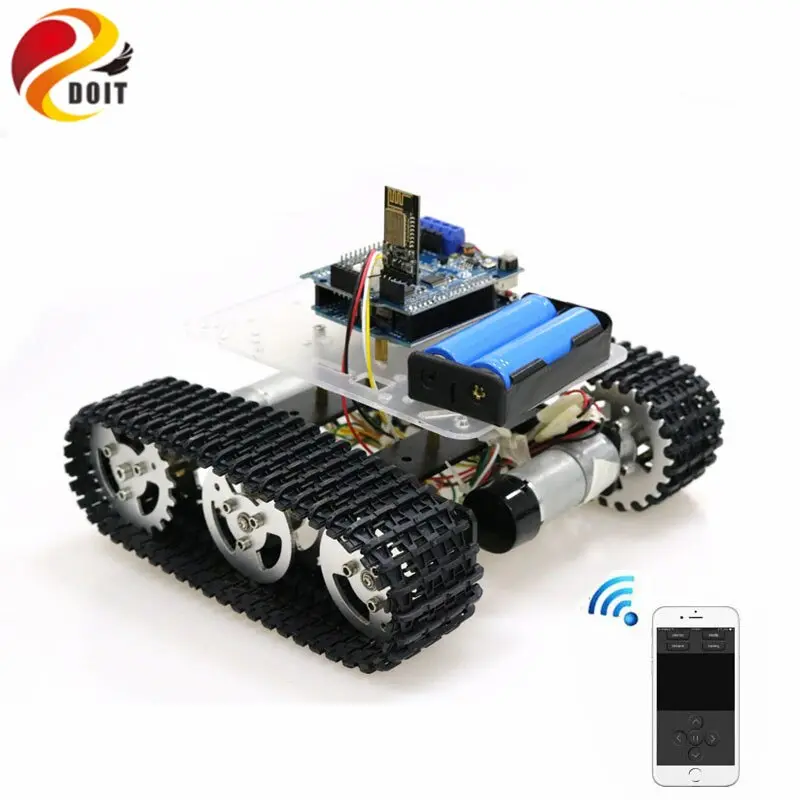

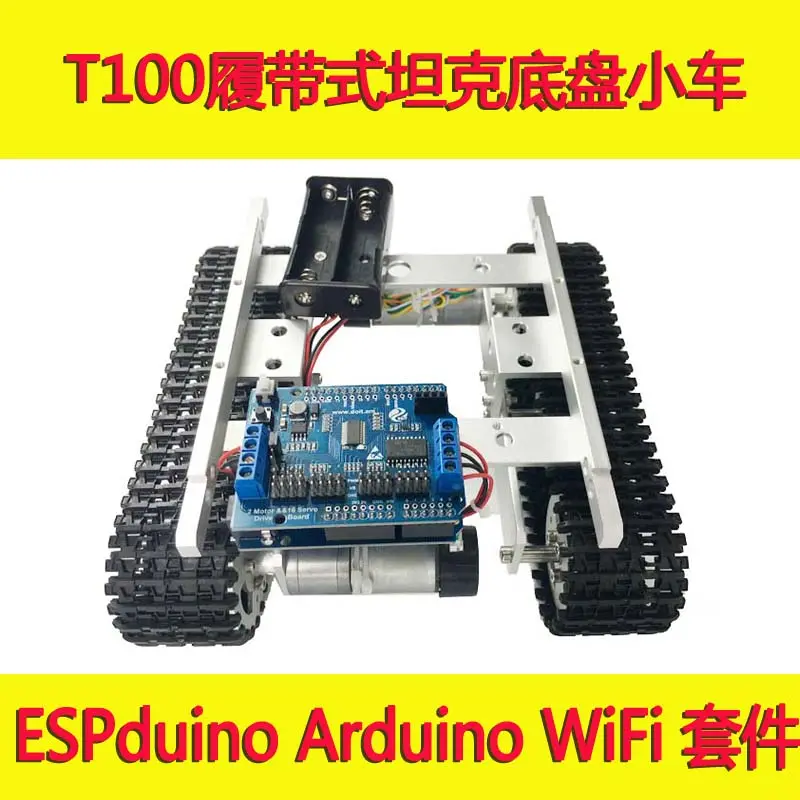

Mini T100 WiFi/Bluetooth RC Tank Chassis Kit – Arduino-Compatible Crawler Platform with UNO R3 and Motor Driver Board

Description

4 Road& 16 Road Servo control Board:

Features:

• Compatible with arduino;

• Simultaniously control 4ch DC motor and 16ch servo;

• Can controlled by wifi (DT-06), Bluetooth (HC-06), and PS2 station;

• Its the best choice for robot tank car chassis and robot arm;

Module pin description and schematic:

• 16 road servo and 4 road motor drive board, using TB6612 4 road drive, PCA9685 for 16 road servo control.

• Bring out the Arduino UNO I/O pin;

• The maximum input voltage of the power supply is 15V/DC;

• Reserve Bluetooth & WIFI module sockets;

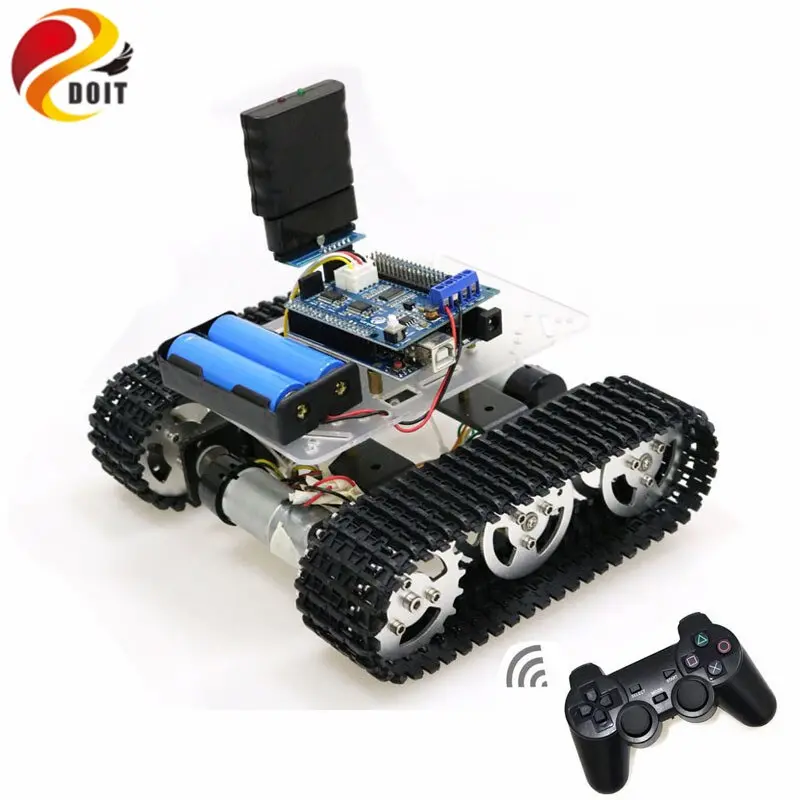

• Reserve PS2 handle socket;

• 4 road DC motor drive, single-channel maximum drive current 1.2A average / 3.2A peak;

• 16 road servo drive pin, power supply can be switched by external/internal power supply of jumper cap;

Images:

Shipping List:

• Silver/Golden/Black Tank Chassis: 1 set(9V 150rpm motor)
• UNO R3 development board: 1pcs
• 2/4 road motor 16 road servo driver board: 1pcs
• Bluetooth module/Wifi module: 1pcs(Optional)
• PS2 control kit: 1 set(Optional)

Free gift:

• Acrylic plate: 1pcs
• Copper pillar kit: 1set
• 1860 battery box: 1pcs
• Hexagon wrench: 1set

Note:

• We send the tank chassis color randomly. If you need the specify color, pls leave a message when you order.
• The tank chassis is unassembled. Pls see the manual link: wiki.doit.am or contact us to get the manual.
• Not included the battery.
