Description

Product Parameters

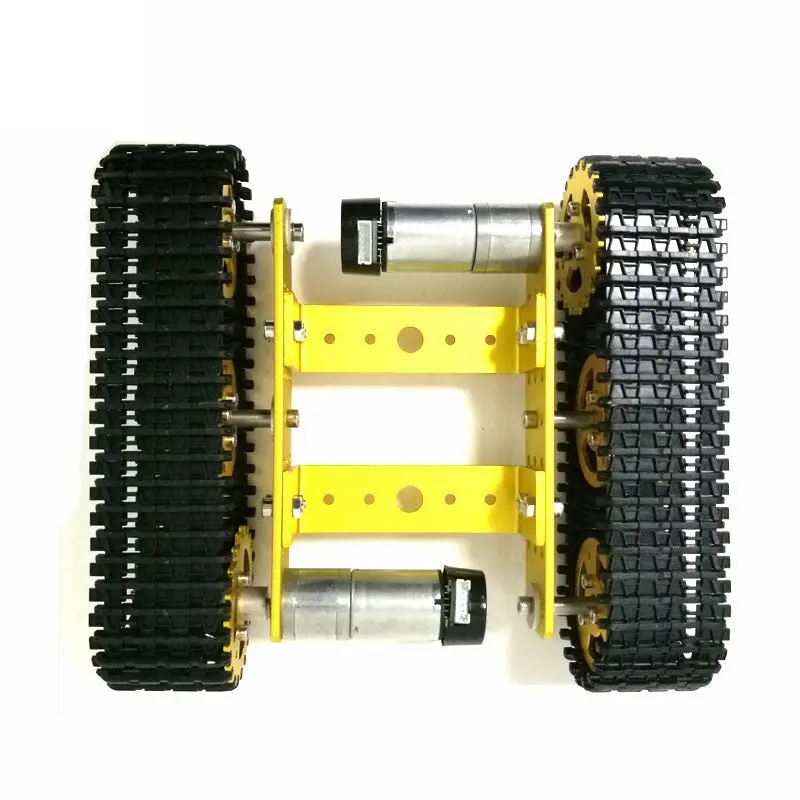

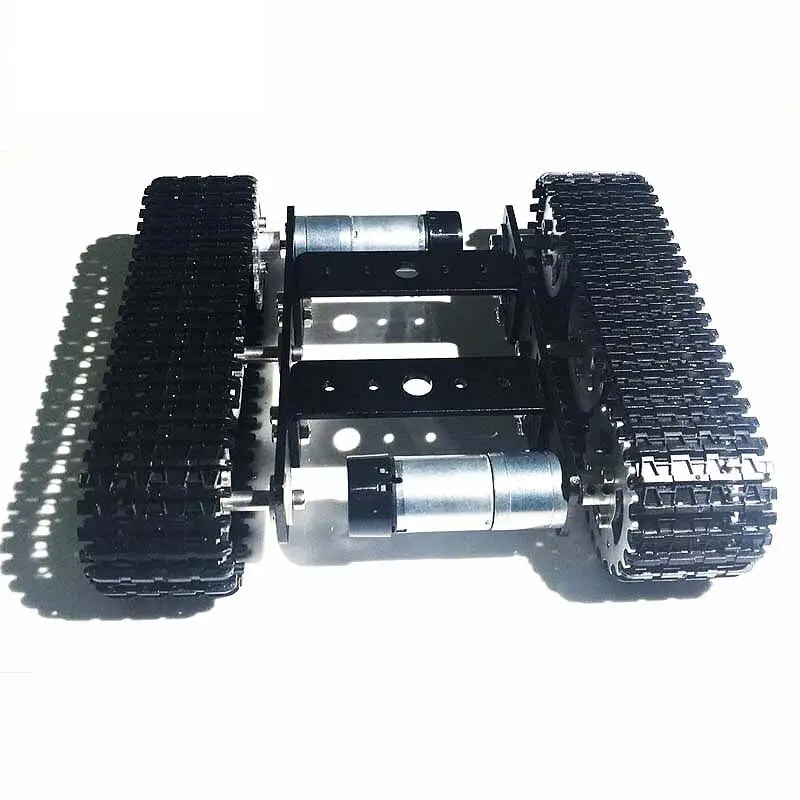

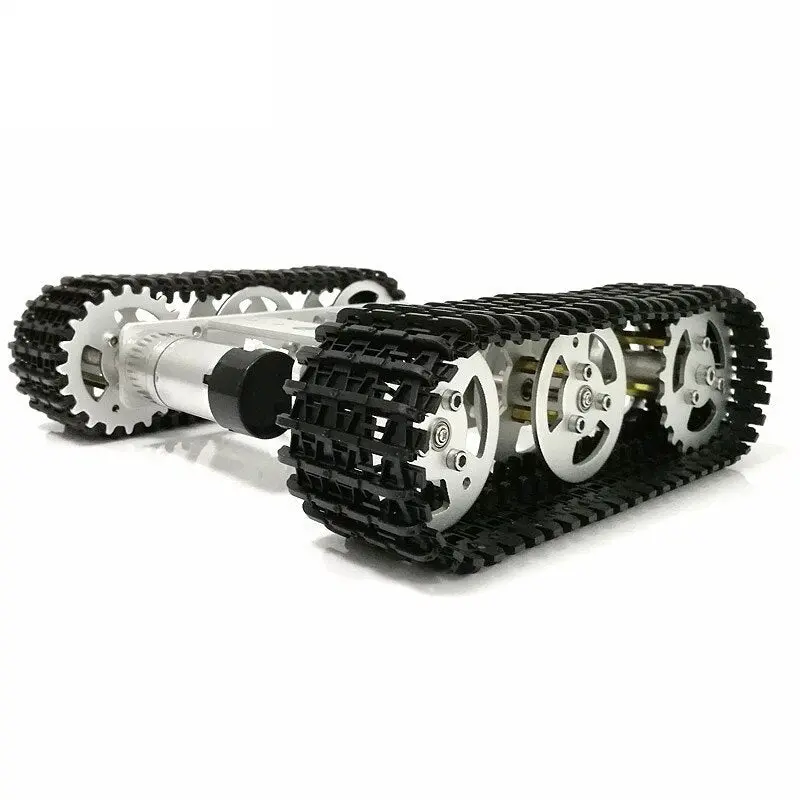

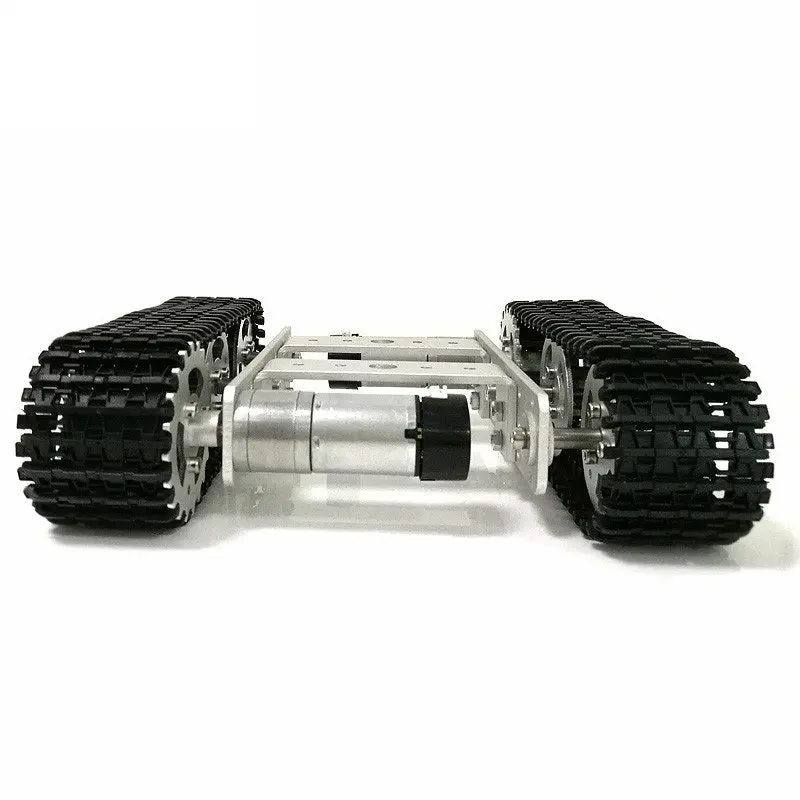

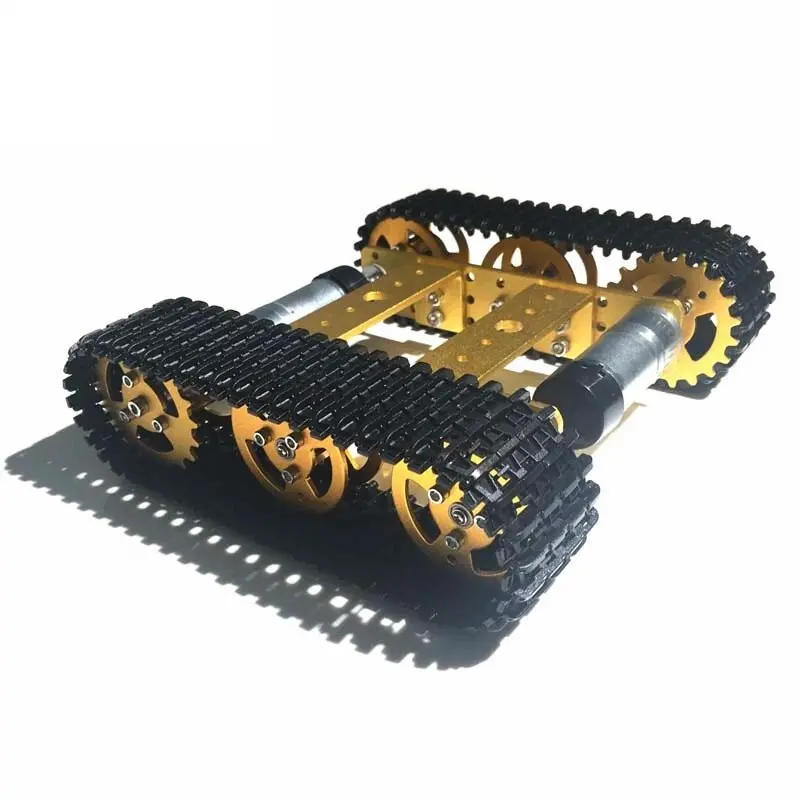

• Name: Mini T100 Tracked Tank Chassis

• Material: Aluminum Alloy

• Surface treatment: sandblasting oxidation

• Color: Golden yellow、silver、black (for optional)

• Track: Engineering plastic

• Size: About 185*200*60mm(Length*width*Height)

• Weight: 0.65kg

• Design load: 5kg

• More details, please visit: https://github.com/SmartArduino/SZDOITWiKi/wiki to download the source code and the documents.

Motor: 33GB-520 Motor, 9V&150RPM, 12V&320RPM

Motor parameters(33GB-520 Motor):



• Rated Voltege: DC12V

• No load Current: 100mA

• Voltage: 6-12V

• No load Speed: 170-350r/min

• Weight: 100g

Motor parameters(25mm 9V DC Motor, has hall sensor):

• Name: 25mm gear motor

• Output speed: 150±10%rpm

• No_load Current: 200mA (Max)

• Stall current: 4500mA(max)

• Stall torque: 9.5kgNaN

• Rated speed: 100±10%rpm

• Rated torque: 3000gNaN

• Rated Current: 1200mA (Max)

• Noise: 56dB

• Working voltage: 9V

• Outside Shaft Length: 14.5mm

• Shaft End Play: 0.05-0.50mm

• Screw Size: M3.0

• Dia. Of Shaft phi4mm, D3.5

• encoder: 2 pulses/circle

Motor parameters(12V DC Motor):

• Voltage: 12V DC

• RPM: 320RPM

• Current: 0.55A

• Diameter: 25mm

• Height (excl. shaft): 68mm

• Shaft length: 9.5mm

• Shaft diameter: 4mm

• Weight: 180g

• Brand new and unused

• Torque: 13kg.cm

• max effective point: load 4.0kg.cm/235rpm/2.5W/0.58A

• Max power: load 7kg.cm/215rpm/3.1w/0.65A

• Stall current: 4.8A

• More details, please visit: https://github.com/SmartArduino/SZDOITWiKi/wik

Images

Shipping List

Option Description:

silver with 9v motor:

• silver mini T100 robot tank chassis: 1set(9V motor)



silver with 12v motor:

• silver mini T100 robot tank chassis: 1set(12V motor)



silver with 33 motor:

• silver mini T100 robot tank chassis: 1set(33 motor)



golden with 9v motor:

• golden mini T100 robot tank chassis: 1set(9V motor)



golden with 12v motor:

• golden mini T100 robot tank chassis: 1set(12V motor)



golden with 33 motor:

• golden mini T100 robot tank chassis: 1set(33 motor)



black with 9v motor:

• black mini T100 robot tank chassis: 1set(9V motor)



black with 12v motor:

• black mini T100 robot tank chassis: 1set(12V motor)



black with 33 motor:

• black mini T100 robot tank chassis: 1set(33 motor)

Warm Prompt

• For the shipping convenience, the tank/car chassis is unassembled
