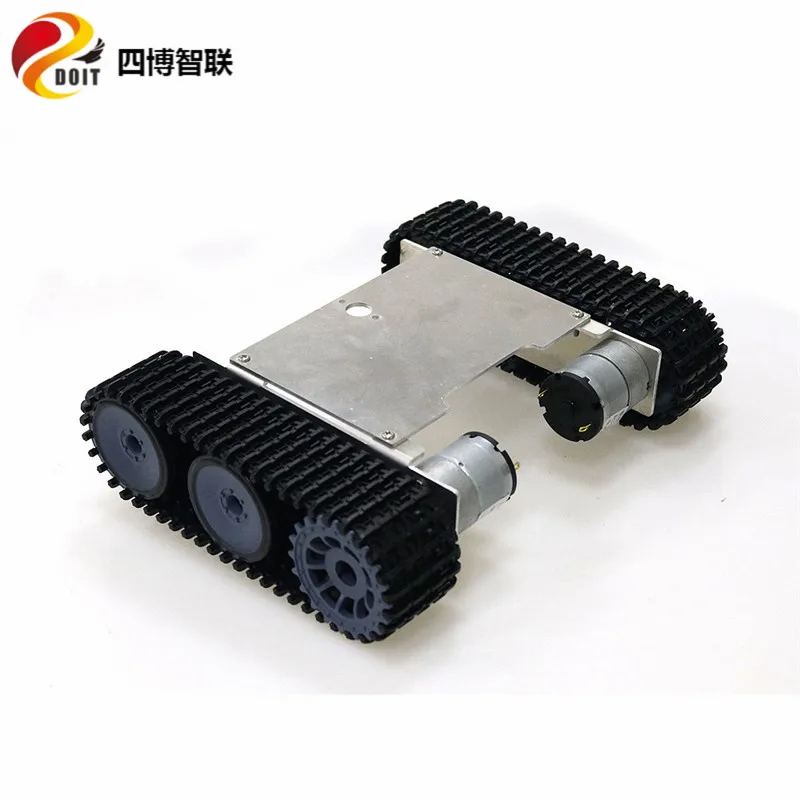

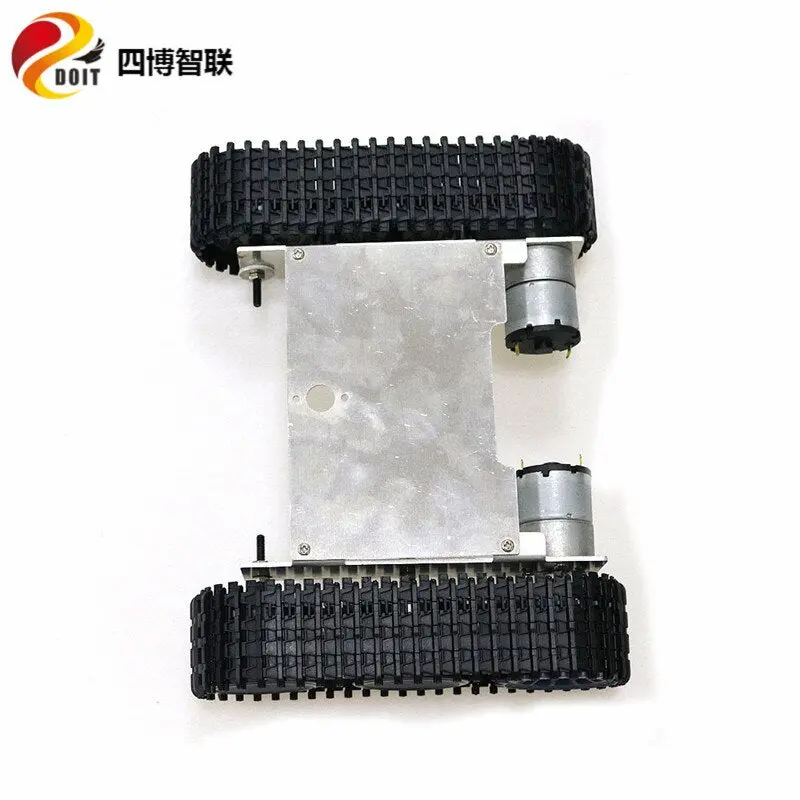

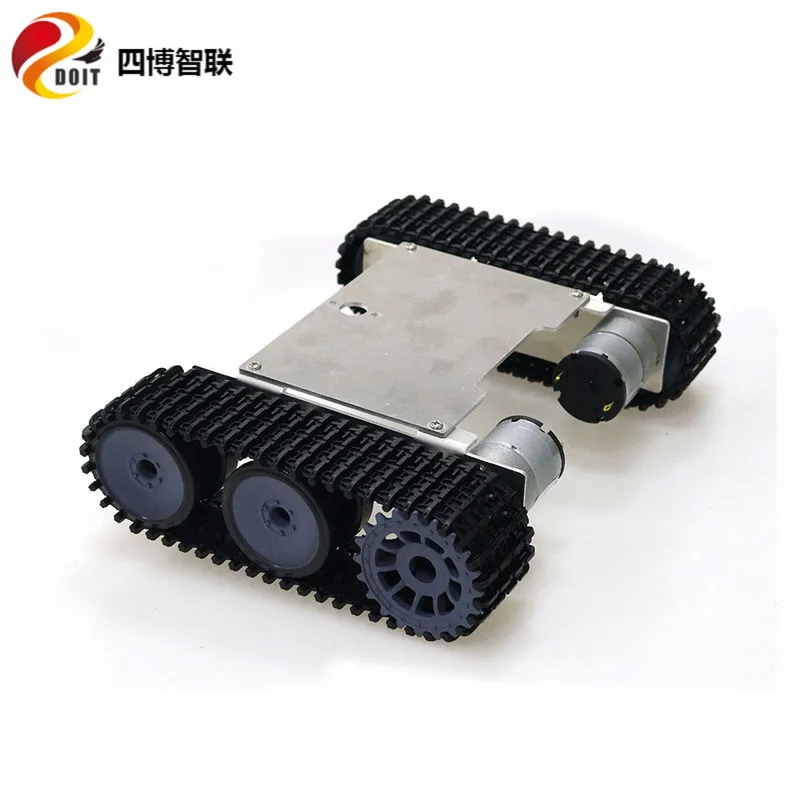

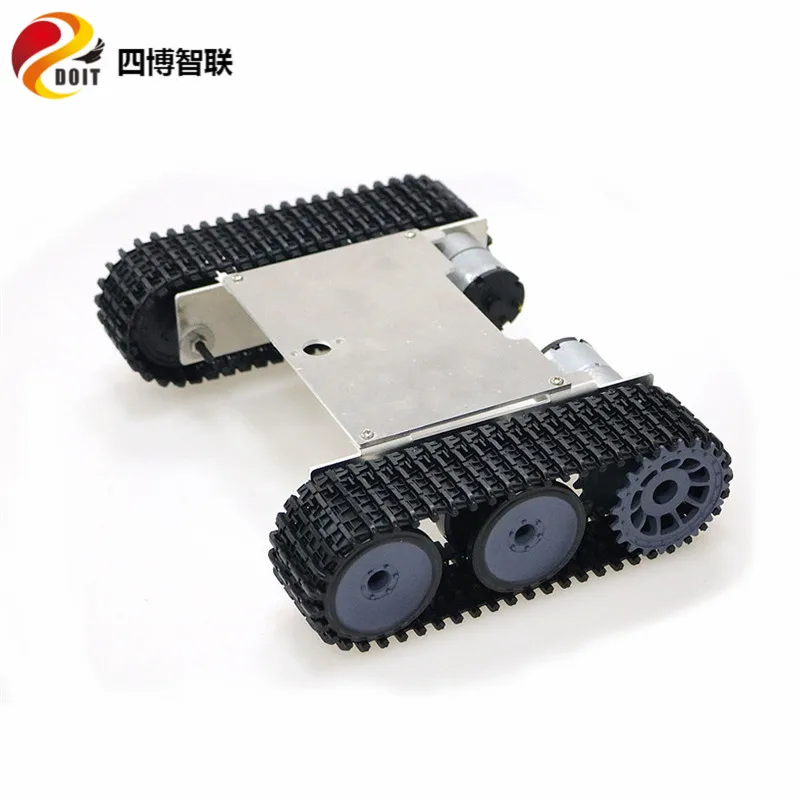

Metal Tracked RC Tank Chassis Kit: Shock-Absorbing Crawler Frame with 12V DC Motors for Arduino DIY Robotics Projects

Description

Features:

• The chassis body is made of aluminum alloy and is very durable;
• The chassis is equipped with 2 large horsepower motors, the chassis can go forward, back, turn left, turn right, etc;
• Fewer parts and easy installation;
• Low price and high cost performance;
• The chassis track is a shock-absorbing track that makes the tank run smoothly;
• The chassis can be fitted with a control kit and needs to be purchased separately.

Product Parameters:

• Material: aluminum alloy
• Size: 18cm*24cm*6cm (L*W*H)
• Motor working voltage: DC 6-12V
• Load: 2kg
• Track: shock absorbing track
• Bearing wheel: plastic
• Drive wheel: plastic

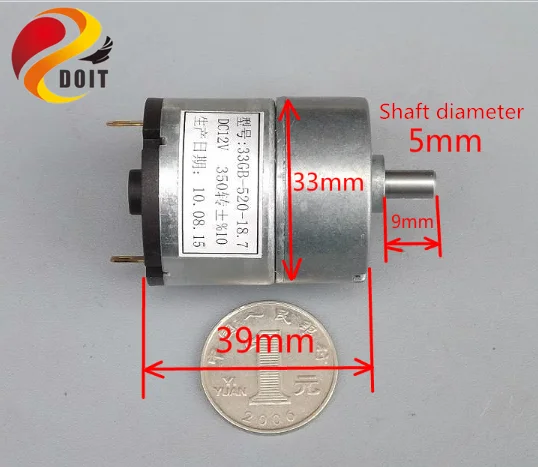

Motor Parameters:

• Model: 33G-B520
• Voltage range: 6V-12V
• No-load speed: 170-350rpm
• Rated voltage: DC12V
• No-load current: 100mA
• Torque: 1.5kg
• Weight: 100g

Shipping List:

• 1 × Tank chassis
• 2 × motor

NOTE:

• In order to facilitate transportation, the product is not assembled. But it is very easy to install.
• More documents can be downloaded at wiki.doit.am.
