Description

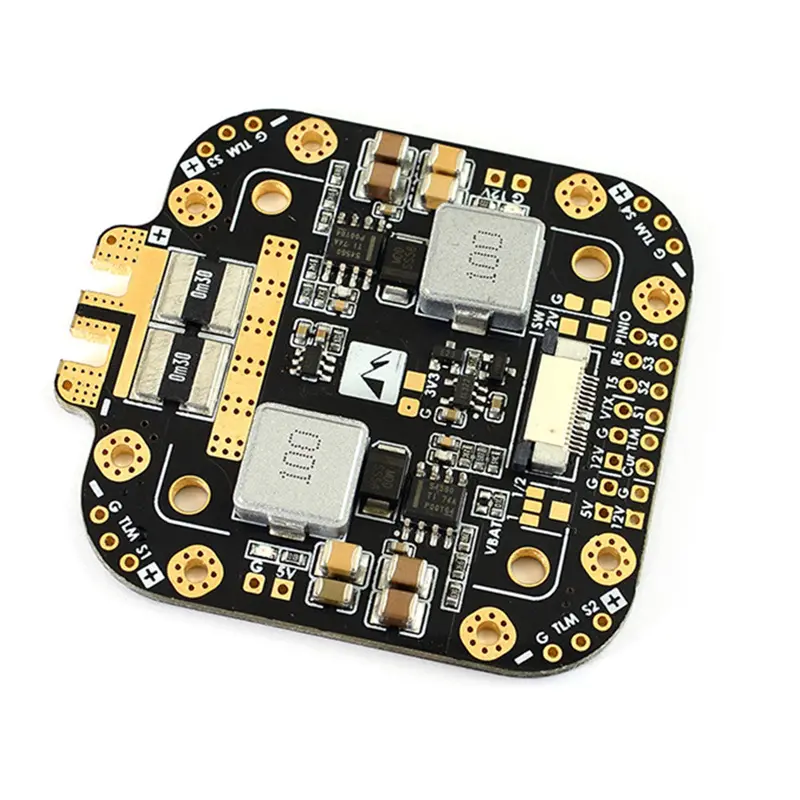

Matek System XCLASS FCHUB-12S PDB Board 5V & 12V Output w/ Current Sensor 3-12S Lipo for RC Drone
Specification: ( Manual)
Brand Name: Matek System
Model: FCHUB-12S
Mounting: 30.5 x 30.5mm (M3) Dimensions: 55 x 50 x 6 mm Weight: 21g
PDB:
Input Voltage: 8-60V (3-12S Lipo) 4x70A cont, 4x110A burst 4x ESC power /signal/ telemetry pads Current Senor: 440A, 3.3V ADC, Scale 75 2x LED indicators for 5V, 12V
FFC connection Compatible with MATEKSYS FC F405-STD, F722-STD VTX: Video Transmitter signal T5 & R5: TX5 and RX5 of F405-STD/F722-STD
BEC 5V output (5V pad) Voltage: 5.0 +/- 0.1VDC Continuous current 5 Amps, Max.6A Short-circuit tolerant (2 seconds) Overcurrent protection & self-recovery
BEC 12V output (12V pad) Voltage: 12.0 +/- 0.2VDC (Input voltage >=12V) Continuous current 4 Amps, Max.5A Input voltage<12V, Output voltage = Input voltage Probably there is audible sound in the BEC12V inductor when Input voltage<12V Short-circuit tolerant (2 seconds) Overcurrent protection & self-recovery
Switchable 12V output (SW12V pad) 12V ON/OFF can be switched via PINIO can be use for powering VTX,LED etc. BEC 3.3V output Linear Regulator Continuous current: 500mA
BEC 3.3V output Linear Regulator Continuous current: 500mA Package Included: 1 x FCHUB-12S PDB Board 1 x Capacitor
