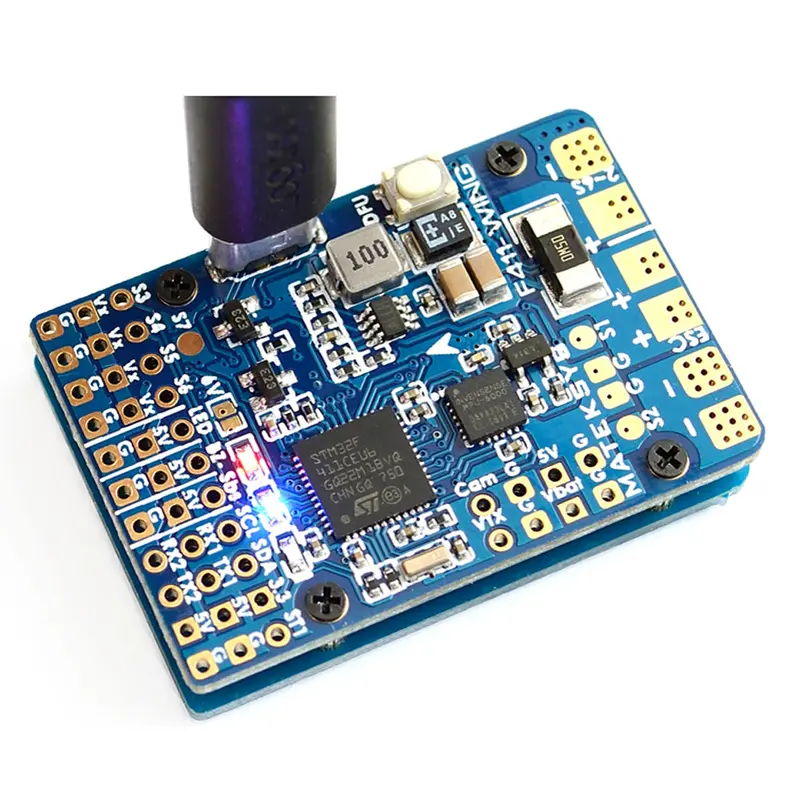

Matek Systems F411-WING Flight Controller – STM32F411CEU6, Built-in OSD, Designed for RC Fixed-Wing Aircraft

Description

Matek Systems F411-WING (New) STM32F411 Flight Controller Built-in OSD for RC Airplane
Description:
Item number: Matek Systems F411-WING(New) MCU: 100MHz STM32F411 IMU: MPU6000 accelerometer/gyro (SPI) Baro: BMP280 (I2C) OSD: INAV OSD w/ AT7456E chip Blackbox: No VCP & 2x UARTs 2x Motors, 5x Servos outputs 1x I2C 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red) Built in inverter for SBUS input (UART1-RX) SoftSerial_Tx1: ST1 pad by default PPM: ST1 pad with softserial disabled Battery Voltage Sensor: 1:10 (Scale 1100) WS2812 Led Strip : Yes Beeper : Yes RSSI: No
FC Firmware INAV Flight Target: MATEKF411
PDB Input voltage range: 6.5~30V (2~6S LiPo) w/TVS protection 2x ESC power pads Current Senor: 78A,  3.3V ADC,  Scale 423
BEC 5V output Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed Continuous current: 2 Amps
BEC Vx output Designed for Servos Voltage adjustable, 5V Default, 6V via jumper Continuous current: 3 Amps
BEC 3.3V output Designed for Baro / Compass module/ OLED and Spektrum RX Linear Regulator Continuous current: 200mA
Physical Mounting: 24 x 24mm, Φ2mm Dimensions: 41 x 28 x 10mm Weight: 7g (Total 12g w/ bottom plate and M2 standoffs)
Firmwares & Downloads, click here
Package included: 1 x Matek Systems F411-WING(New) STM32F411 Flight Controller
