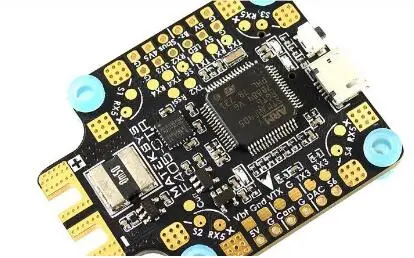

Matek Systems F405-CTR Flight Controller with Integrated PDB, OSD, and 5V/2A BEC + Current Sensor for RC Drones and Multicopters

Description

Matek Systems BetaFlight F405-CTR Flight Controller Built-in PDB OSD 5V/2A BEC Current Sensor for RC Drone



Features:

3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)

6x PWM / DShot outputs without conflict

5x UARTs

1x Group of  G/S1/S2/S3/S4 pads for 4in1 ESC Signal/GND

4x pairs of corner pads for ESC Signal/GND connections (DSHOT compatible)

1x pair I2C1 pads

1x Side-press button for BOOT(DFU) mode





Specifications:

Brand name: Matek Systems

Item name: BetaFlight F405-CTR

Size: 36x46mm PCB with 30.5mm mounting holes

Weight: 10g



FC Specifications:

MCU: 168MHz STM32F405

IMU: MPU6000 accelerometer/gyro (SPI)

Baro: BMP280 (I2C)

OSD: BetaFlight OSD w/ AT7456E chip

Blackbox: MicroSD card slot (SD/SDHC)

VCP, UART1, UART2, UART3, UART4, UART5

Built in inverter for SBUS input (UART2-RX)

PPM/UART Shared: UART2-RX

SoftSerial on TX2, S5 or S6 optional

Camera control on S6 or DAC optional

Smartaudio & Tramp VTX protocol supported

WS2812 Led Strip : Yes

Beeper : Yes

RSSI: Yes



PDB Specifications:

Input: 6~30V (3~6S LiPo) w/TVS protection

PDB: 4x30A (Max.4x46A), 6 layers*2oz copper PCB

BEC: 5V 2A cont. (Max.3A)

LDO 3.3V: Max.300mA for Spektrum RX

Current Sensor 184A (Scale 179)

Battery Voltage Sensor: 1:10 (Scale 110)





package included:

1x Matek Systems BetaFlight F405-CTR

4x Rubycon ZLH 35V/470uF (Low ESR)

6x silicon grommets M4 to M3

1x FR4 PCB Plate 36*36*1mm
