Description

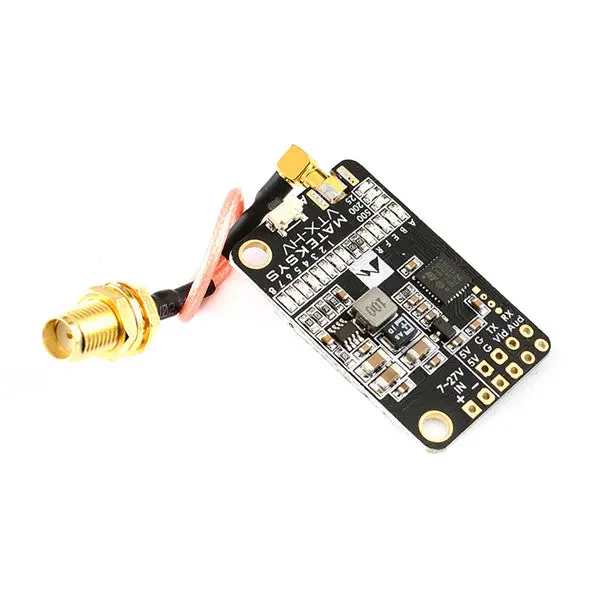

Matek 5.8G 40CH 25/200/500mW switchable Video Transmitter VTX-HV with 5V/1A BEC Output
Specifications & Features (user manual): Input voltage: 7~27V(2~6S LiPo) 40 standard channels, A/B/E/F/R Band Output Power: 25, 200, 500mW switchable BEC Output: 5V/1A for Camera or FC Traditional button+LED control of frequency and power BFCMS (BFOSD & LUA Script) control via FC UART _TX Firmware upgradeable
Power Consumption: 3.1W Max. @ 500mW Video Input Impedance: 75 Ohm Audio Subcarrier Frequency: 6.5 MHz RF Connector: U.FL (IPEX) Video Format: NTSC/PAL Weight: 6g (Tx only, w/o SMA cable) Size: 36*22*6.5mm w/30.5mm mounting
Package included: 1x 5.8G Video transmitter (MMCX)
1x PVC Heat-shrink tube
1x MMCX to SMA Female, RG178 cable 9cm
