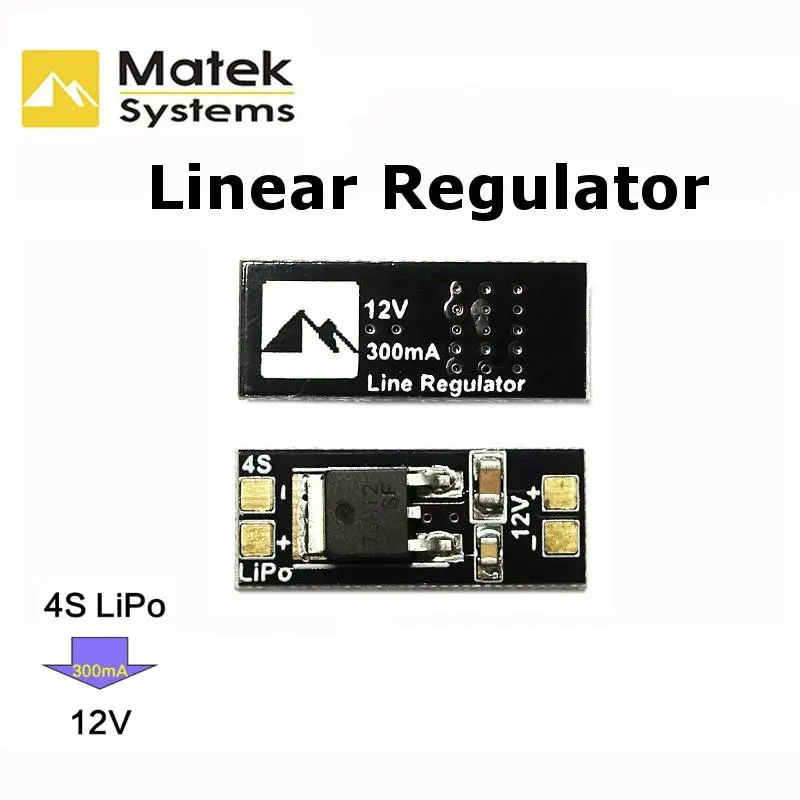

MATEK 4S LiPo to 12V Linear Voltage Regulator Module for FPV Cameras and Multicopters

Description

Matek 4S Lipo to 12V Linear Voltage Regulator Regulate Module For FPV Camera Multicopter





Description: Brand Name: Matek Item Name: Linear Voltage Regulator Input Voltage:13~17V, 4S LiPo Output Voltage: 12V,  accuracy 2.5% Output Current: Continuous 300mA Size: 25*10*3mm Weight: 1g    Features: Suitable for FPV Camera  Compared with BEC12V, linear voltage regulator with low-ripple, does’t interfere the image signal Temp. 25℃, 16V input, 12V output 300mA, 5min, the highest measured temperature is 58℃ Can be connected with extra only one 12V 1.5W LED light. If the 3S and 4S mixed, it support 3S battery too. Output voltage=3S voltage-1V, eg. the battery voltage is 12V, actual output is 11V, and the camera can work normally.
Package Included: 1 x Module
