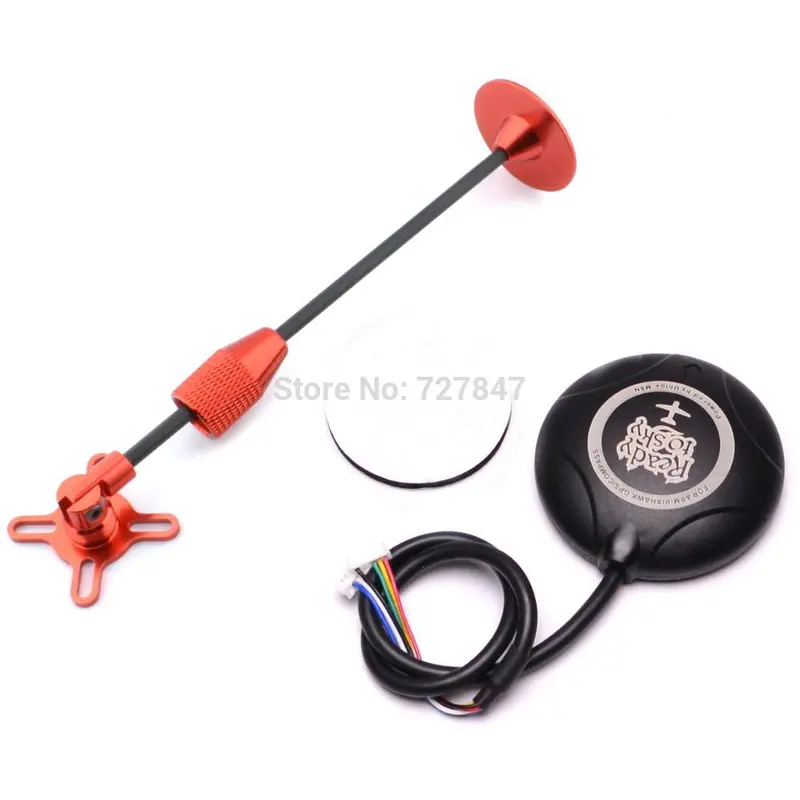

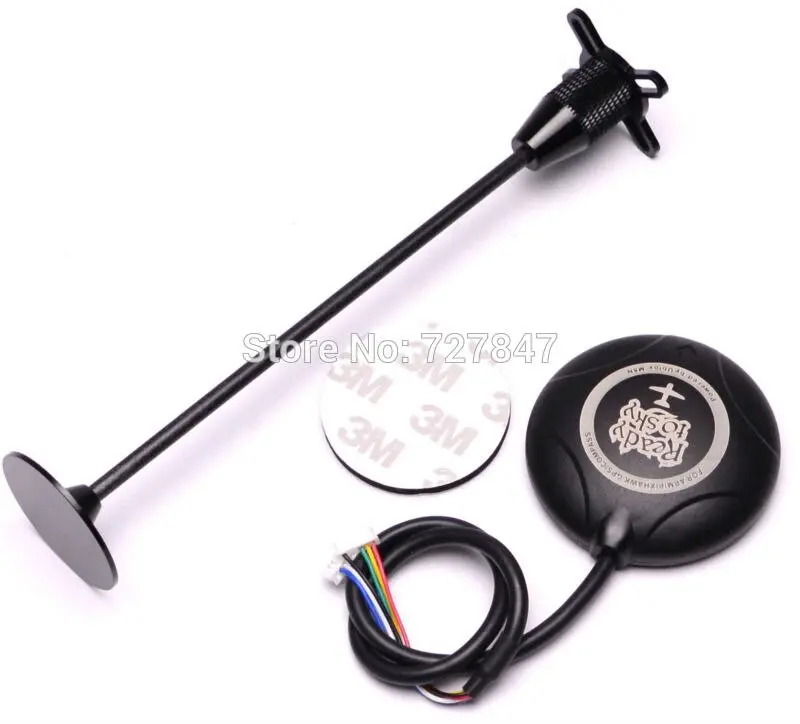

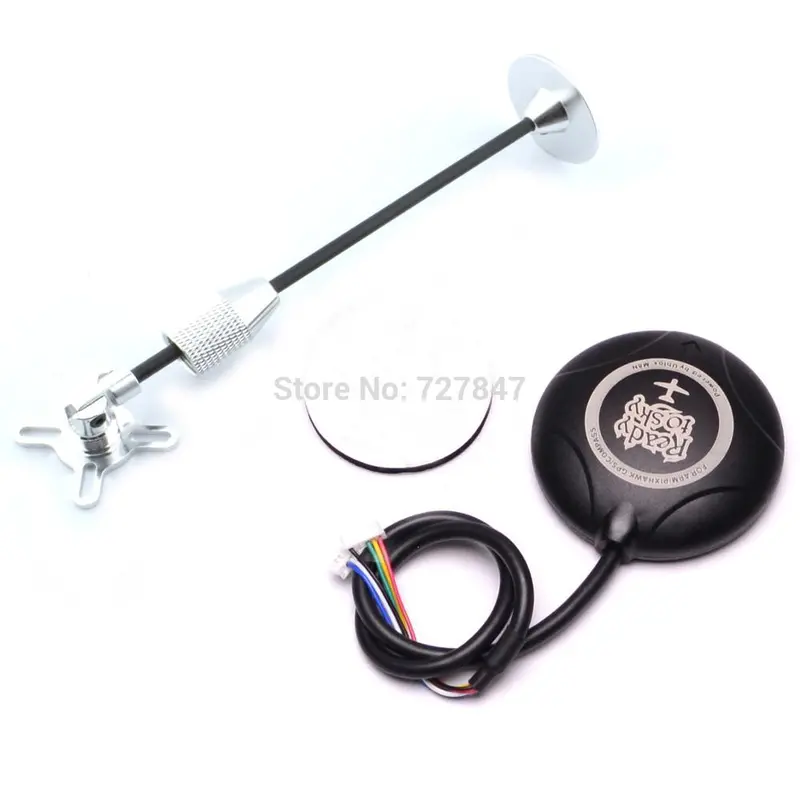

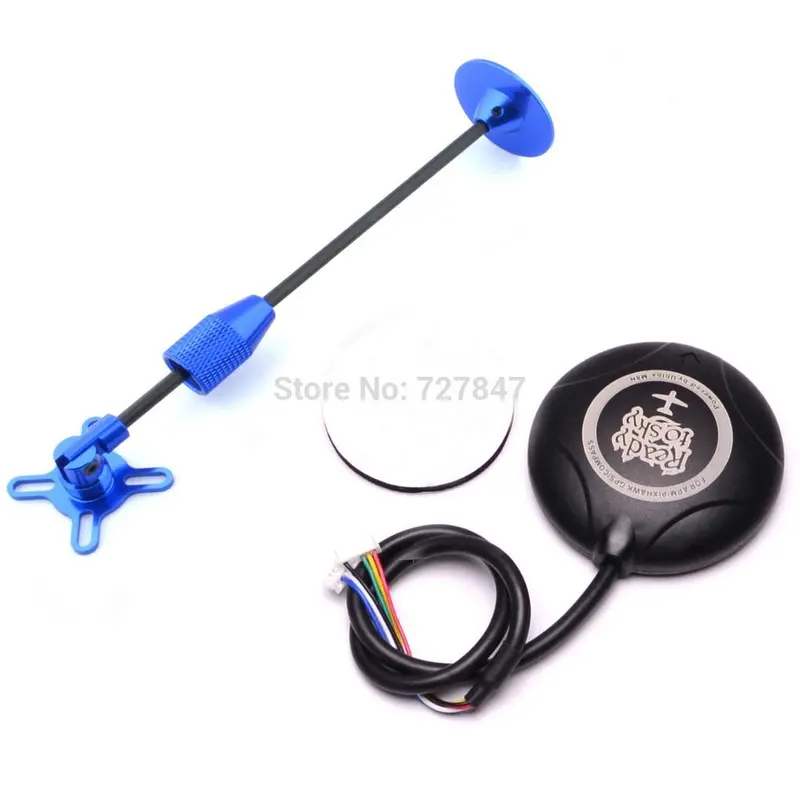

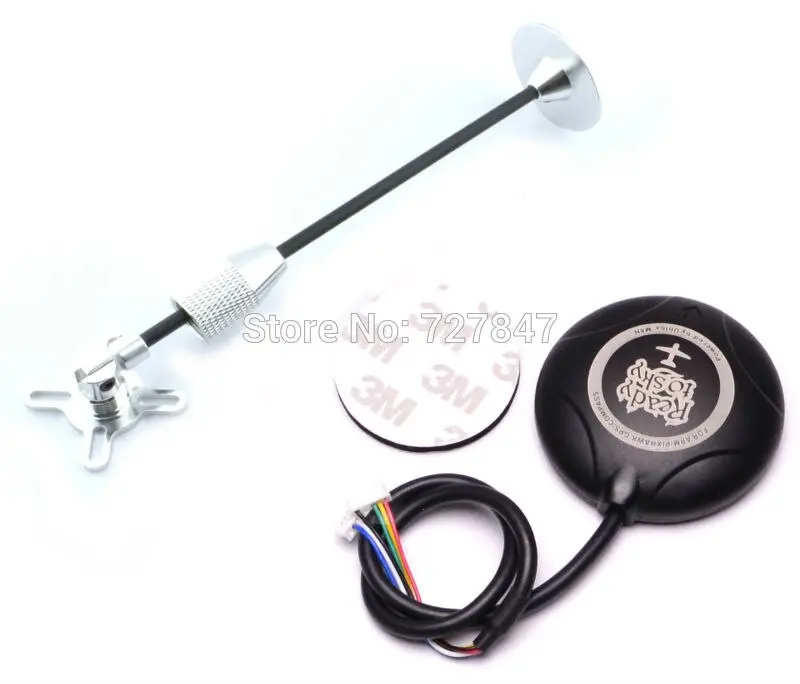

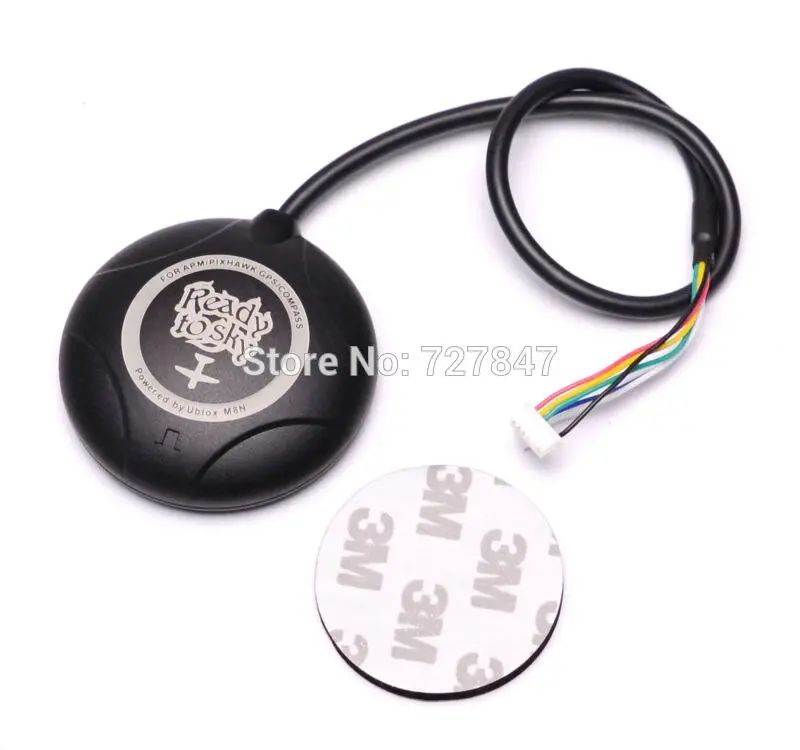

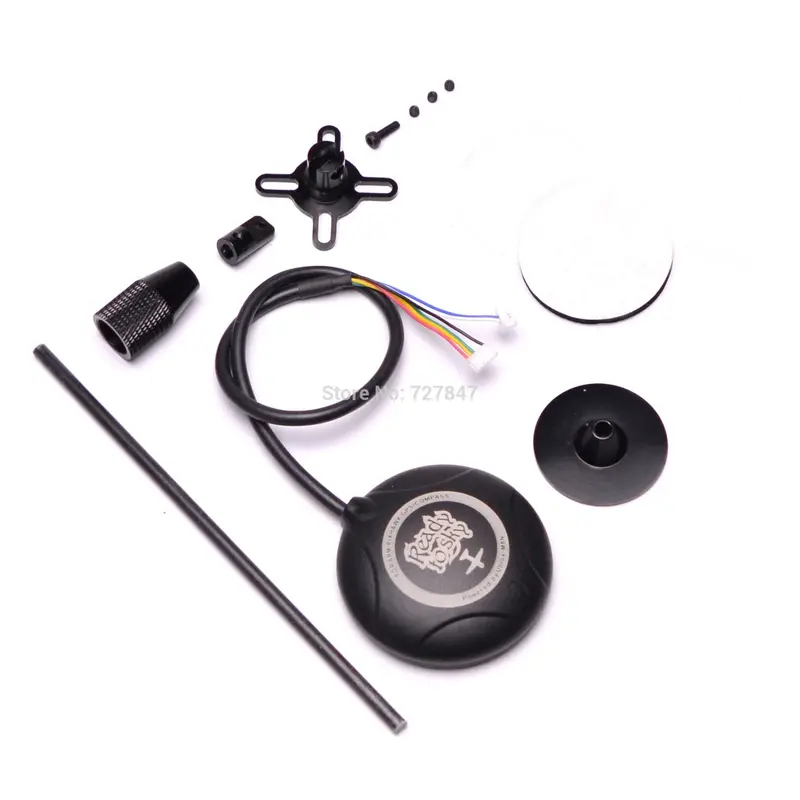

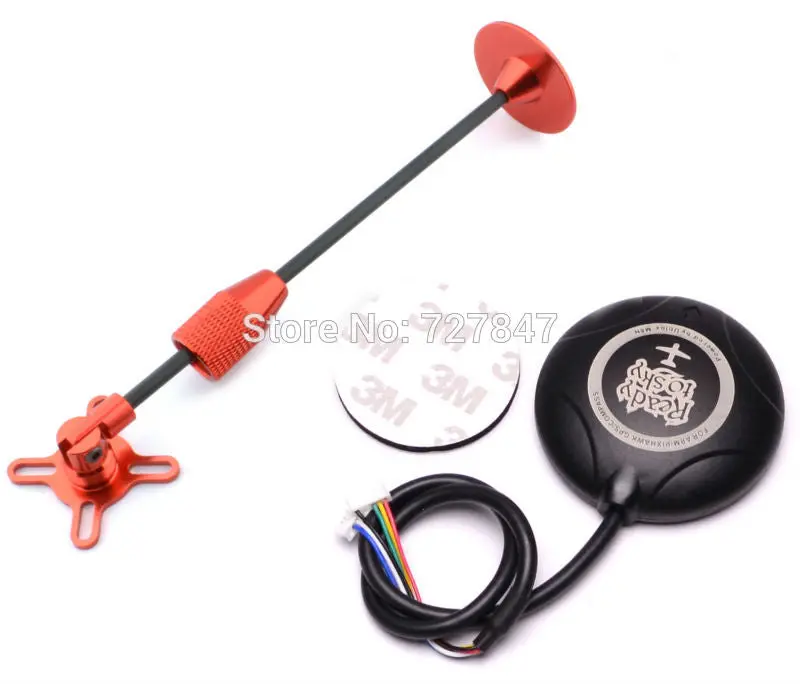

M8N GPS Module with Integrated Compass and Mounting Stand for Pixhawk, APM, and Compatible Autopilots

Description

A new generation GPS M8N,with low power consumption and high precision, the ultimate accuracy is 0.6 meters, actually almost 0.9 meters, greater than the previous generation  7N 1.4-1.6 meters accuracy,support GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 protocol and mode or more.   GPS Chip parameters:  Receiver type 72-channel u-blox M8 engine  GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1  SBAS L1 C/A: WAAS, EGNOS, MSAS  Galileo-ready E1B/C (M8N)  Nav. update rate1 Single GNSS: up to 18 HZ  Concurrent GNSS: up to 10 Hz  Position accuracy2 2.0 m CEP  Sensitivity2 Tracking & Nav: –167 dBm  Cold starts: –148 dBm  Hot starts: –156 dBm  Assistance AssistNow GNSS Online  AssistNow GNSS Offline (up to 35 days)3  AssistNow Autonomous (up to 6 days)  OMA SUPL & 3GPP compliant  Oscillator TCXO (M8N/Q),  Crystal (M8M)  RTC crystal Built-In  Noise figure On-chip LNA (M8M). Extra LNA for  lowest noise figure ( M8N/Q)  Anti jamming Active CW detection and removal. Extra  onboard SAW band pass filter (M8N/Q)  Supported antennas Active and passive  Odometer Travelled distance  Data-logger For position, velocity, and time ( M8N)   Operating temp. –40° C to 85° C  Storage temp. –40° C to 85° C (M8N/Q)  –40° C to 105° C (-M8M)  RoHS compliant (lead-free)  Qualification according to ISO 16750  Manufactured and fully tested in ISO/TS 16949 certified production sites  Uses  M8 chips qualified according to AEC-Q100   Supply voltage 1.65 V to 3.6 V (M8M)  2.7 V to 3.6 V (M8N/Q)  Power consumption4 23 mA @ 3.0 V (continuous)  5 mA @ 3.0 V Power Save Mode  (1 Hz, GPS mode only)  Backup Supply 1.4 to 3.6 V       – 1 x M8N /  6M GPS Module with translucent Shell ( M8N or 6M GPS send as your choice)   – 1 x GPS Holder  ( send by your choice)     We left a connector for APM  extra,If you need used for APM, you can install the connector by yourself or leave us a message ,we will change for you . Original connector is for Pixhawk flight control board my friend!     Note:  The M8N GPS  firmware  is fixed , so it is no  need to revise firmware after you recieved .  if you mind,  please do not buy.
