M8N GPS Module with Built-in Compass – BN-880 Mini GNSS Receiver for Pixhawk, APM 2.6/2.8, and PX4 Flight Controllers

Description

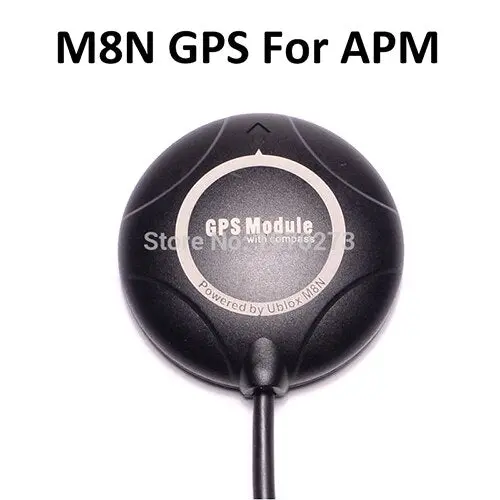

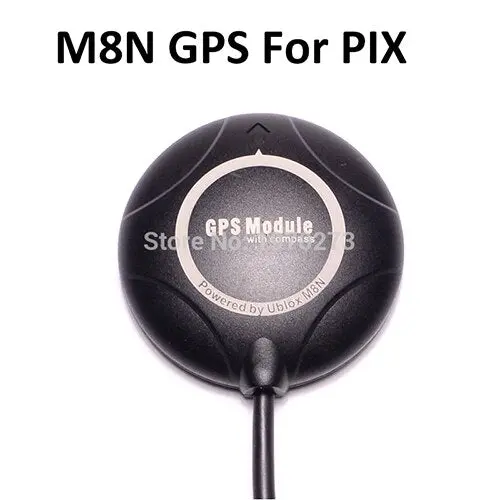

      M8N GPS Module:   GPS Chip parameters:  Receiver type 72-channel M8 engine  GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1  SBAS L1 C/A: WAAS, EGNOS, MSAS  Galileo-ready E1B/C (M8N)  Nav. update rate1 Single GNSS: up to 18 HZ  Concurrent GNSS: up to 10 Hz  Position accuracy2 2.0 m CEP  Acquisition2 Cold starts: 26 s  Aided starts: 2 s  Reacquisition: 1.5 s  Sensitivity2 Tracking & Nav: –167 dBm  Cold starts: –148 dBm  Hot starts: –156 dBm  Assistance AssistNow GNSS Online  AssistNow GNSS Offline (up to 35 days)3  AssistNow Autonomous (up to 6 days)  OMA SUPL & 3GPP compliant  Oscillator TCXO (M8N/Q),  Crystal (M8M)  RTC crystal Built-In  Noise figure On-chip LNA (M8M). Extra LNA for  lowest noise figure (M8N/Q)  Anti jamming Active CW detection and removal. Extra  onboard SAW band pass filter (M8N/Q)  Supported antennas Active and passive  Odometer Travelled distance  Data-logger For position, velocity, and time (M8N)   Operating temp. –40° C to 85° C  Storage temp. –40° C to 85° C (M8N/Q)  –40° C to 105° C (M8M)  RoHS compliant (lead-free)  Qualification according to ISO 16750  Manufactured and fully tested in ISO/TS 16949 certified production sites  Uses M8 chips qualified according to AEC-Q100   Supply voltage 1.65 V to 3.6 V (M8M)  2.7 V to 3.6 V (M8N/Q)  Power consumption4 23 mA @ 3.0 V (continuous)  5 mA @ 3.0 V Power Save Mode  (1 Hz, GPS mode only)  Backup Supply 1.4 to 3.6 V     Timepulse Configurable 0.25 Hz to 10 MHz

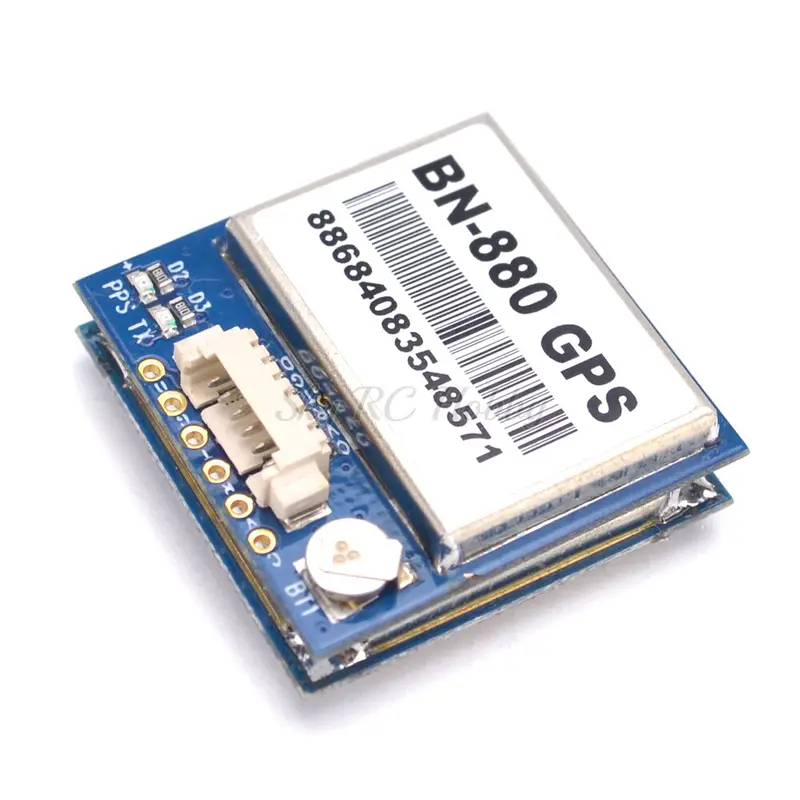

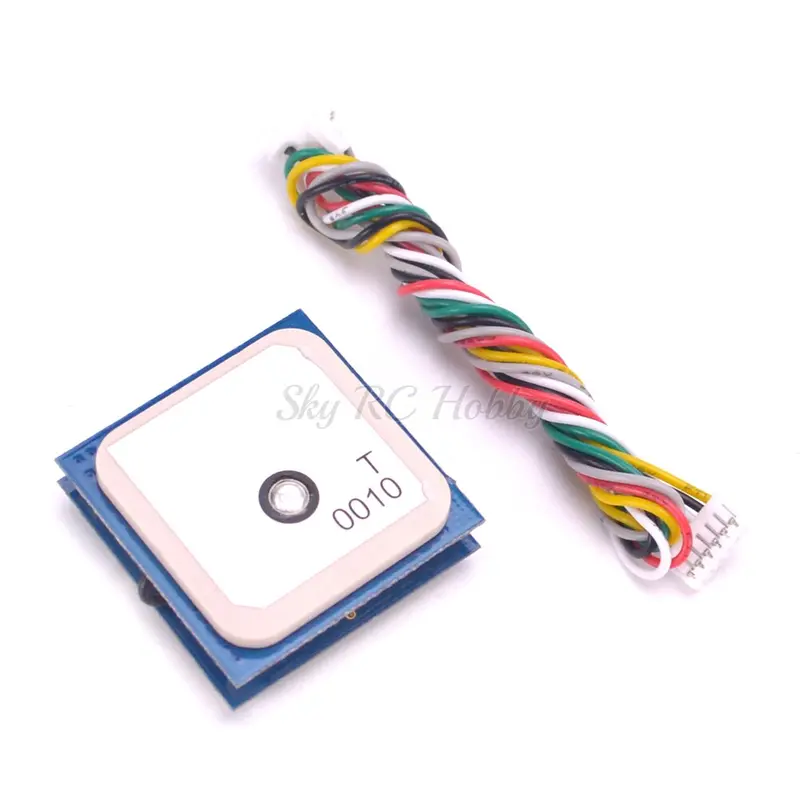

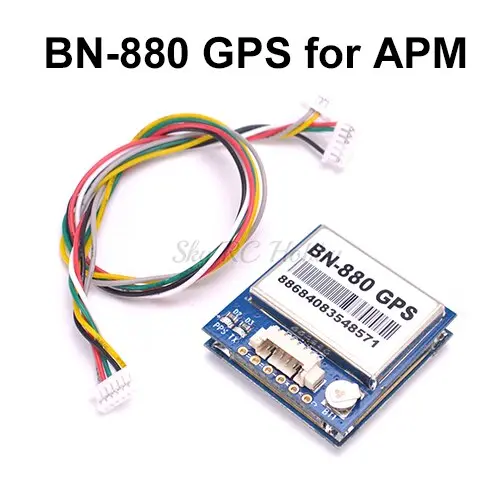

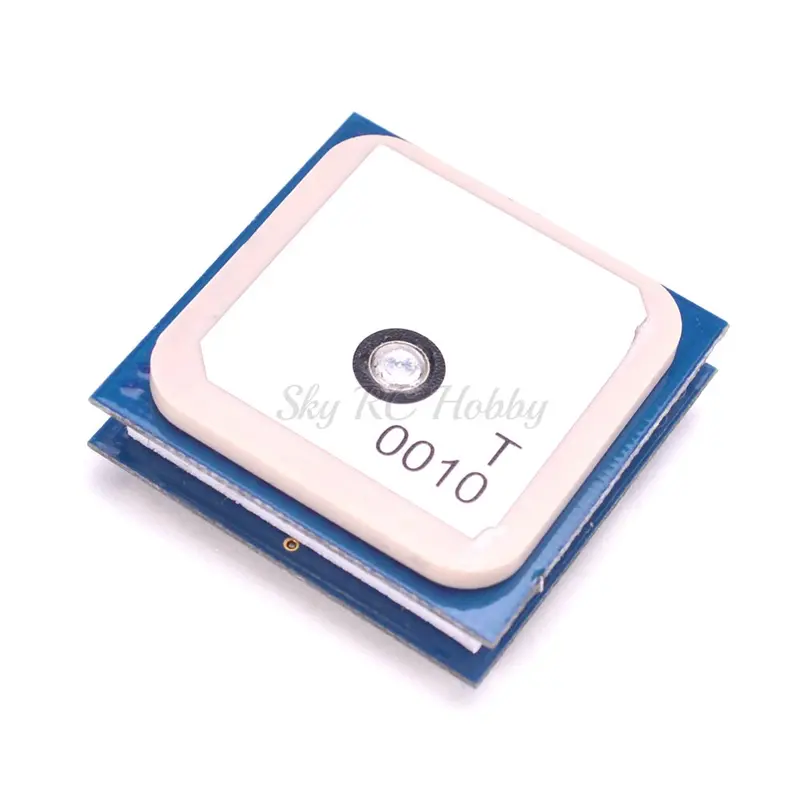

BN-880 GPS Description:

Model:BN-880  Power Supply: DC Voltage 2.8V~6.0V,Typical:3.3V or 5.0V Consumption: Capture 50mA@5V Receiving Format: GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS Receiving Channel: 72 Searching Channel Receiving Sensitivity: Trace -167dBm                                     Capture-148dBm Positioning Time: Cold Start:avg26s                              Warm Start:avg25s                              Hot Start:avg3s Level Positioning Precison: 2m At Open Wind Output Frequency: 1Hz-10Hz,Default 1Hz Speed Precison: 0.1 m/s (Without Aid) Acceleration Precison: 0.1 m/s (Without Aid) Dynamic Characteristics: Max Height:18000m                                          Max Speed:5153m/s                                          Max Acceleration:4G UART Interface:UART Port: TXDA and RXDA                           Support Rate: 4800bps to 115200bps,Default 38400dps Working Temperature: -40-+85 Storage Temperature: -40-+85 Size: 28mm x 28mm x 10mm Weight: 10g The Module’s Pins: SDA,GND,TX,RX,VCC,SCL     Features:   GPS Module,Dual Module Compass With electronic compass IC HMC5883L 1.25mm spacing between the 6pins patch seat   Note:Can not use for flight control with SCM,but it is suitable for Open source flight controller.         Package included:   1 x M8N / BN-880 GPS Module with Shell      Note: 1.Apm connector or Pixhawk connector , send it as your choice .   2.The firmware of GPS is fixed , do not need to revise it; You can use it directly after receiving the GPS.
