Description
Overview:
The Lumenier AXII is known to be the most versatile and highest performing antenna line for FPV today. Lumenier has been able to improve on the best and make it even better!
Improved Features:
Significantly Improved ran&ge with a Higher Gain (2.2dBic Gain)
Wider Bandwidth (5.3-6.2GHz)
Cleaner Signal And Better Rejection to Interference
More Durable – Improved Injection Molded Housing
Virtually Perfect Axial Ratio
While almost every aspect of the AXII 2 was improved upon, the size and weight managed to stay the same. The AXII 2 is still one of the smallest and lightest circular polarized antennas on the market, perfect for both lightweight racing builds or freestyle quads.
The AXII 2 comes in many connector types such as SMA, MMCX, U.FL, Stubby SMA, and Long SMA. engineering has giv en this antenna a virtually perfect 1.0 Axial ratio resulting in a true circularity. On top of that, the AXII 2 has an amazing max gain of 2.2dBic, a true upgrade over the original AXII.
Sup&er Tough
Antennas take a lot of abuse, especially when put onto a quad. The AXII 2’s robust antenna housing is made out of injected molded polycarbonate, significantly improving durability compared to the original AXII housing. The flexible 45mm long RG178 cable allows for complete freedom in placement.
Note: When installing, secure the antenna via the SMA connector, do not the cap.

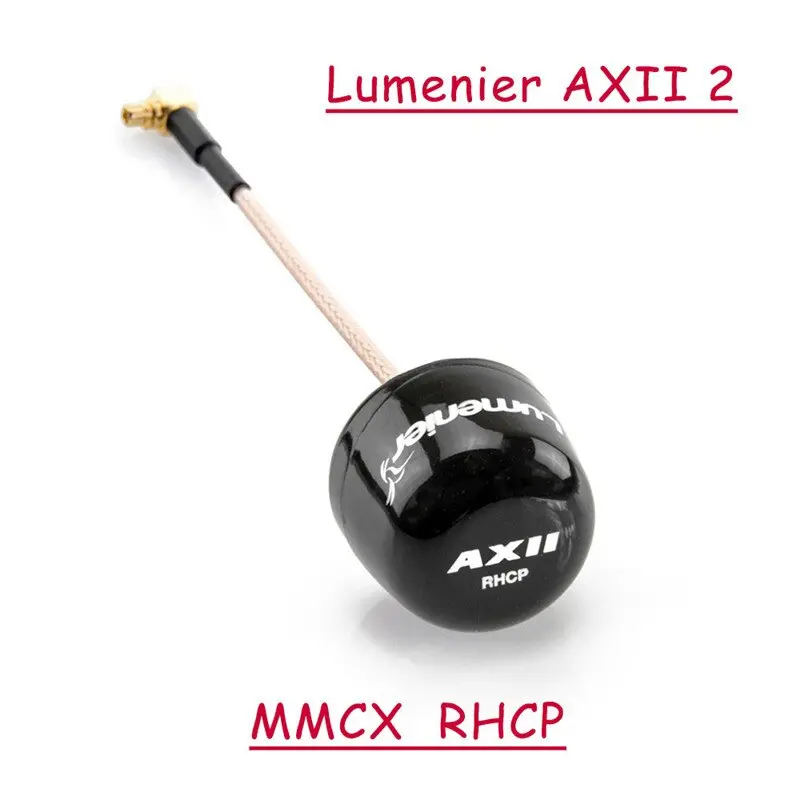

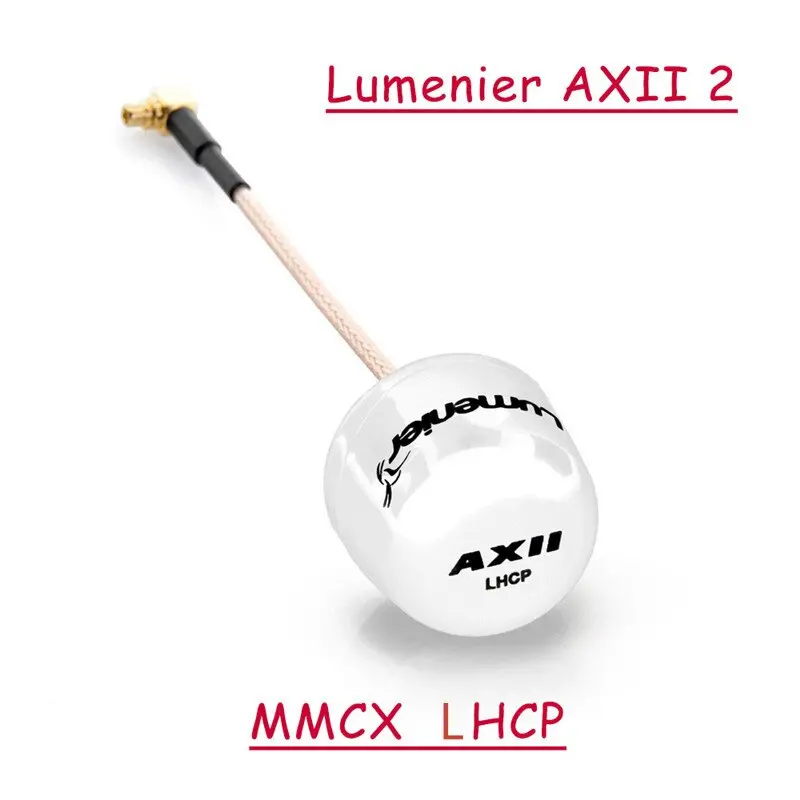

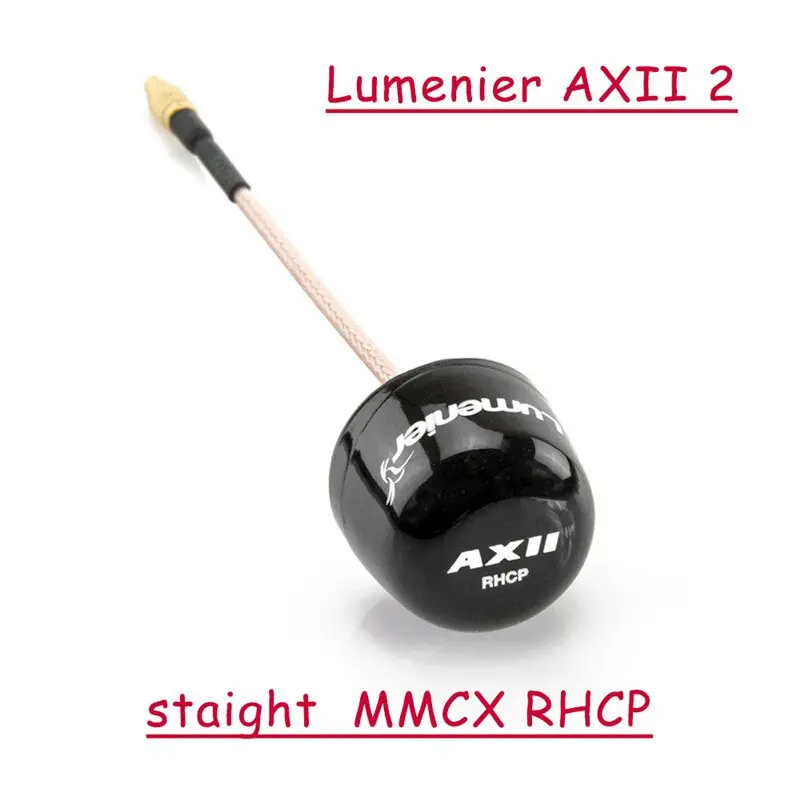

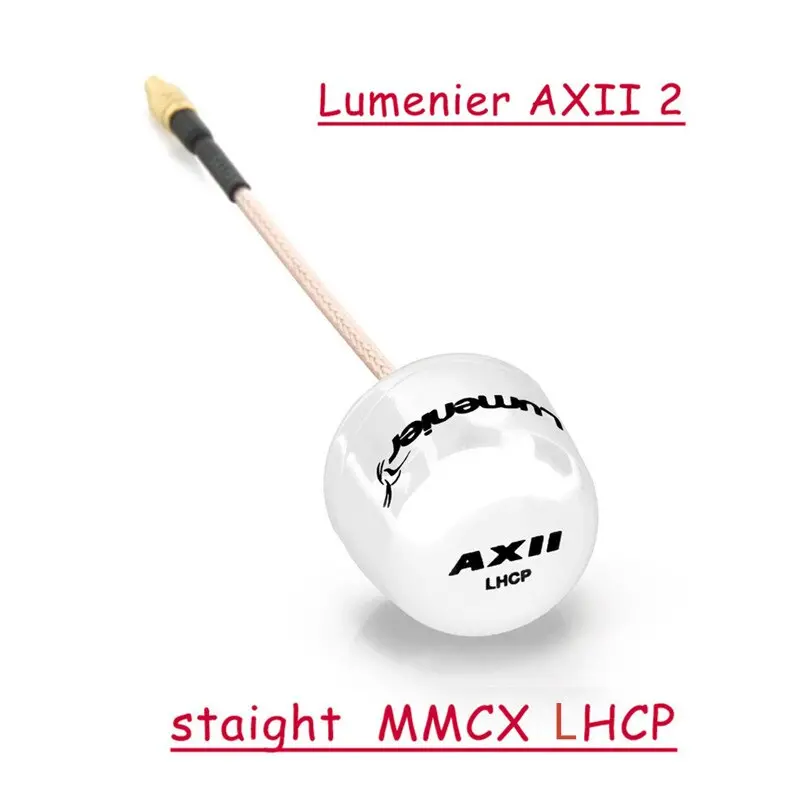

MMCX/Straight MMCX Connector
Brand Name: Lumenier
Item Name: AXII
Polarization(optional): Right Hand Circular (RHCP), Left Hand Circular (LHCP)
Connector: MMCX, Straight MMCX (optional)
Gain: 2.2dbic
Axial ratio: 1.0 (near perfect)
Bandwidth: 5.3GHz-6.2GHz
Radiation Efficiency: 98%
SWR: <=1.5:1
Weight: 3g
Size: 78mm x 17.5mm
Cable: Flexible RG178
Works great as both a transmitting or receiving antenna
Compatible with other styles of 5.8GHz RHCP antennas
Package Included:
1x Lumenier AXII 2 MMCX/Straight MMCX 5.8GHz Antenna

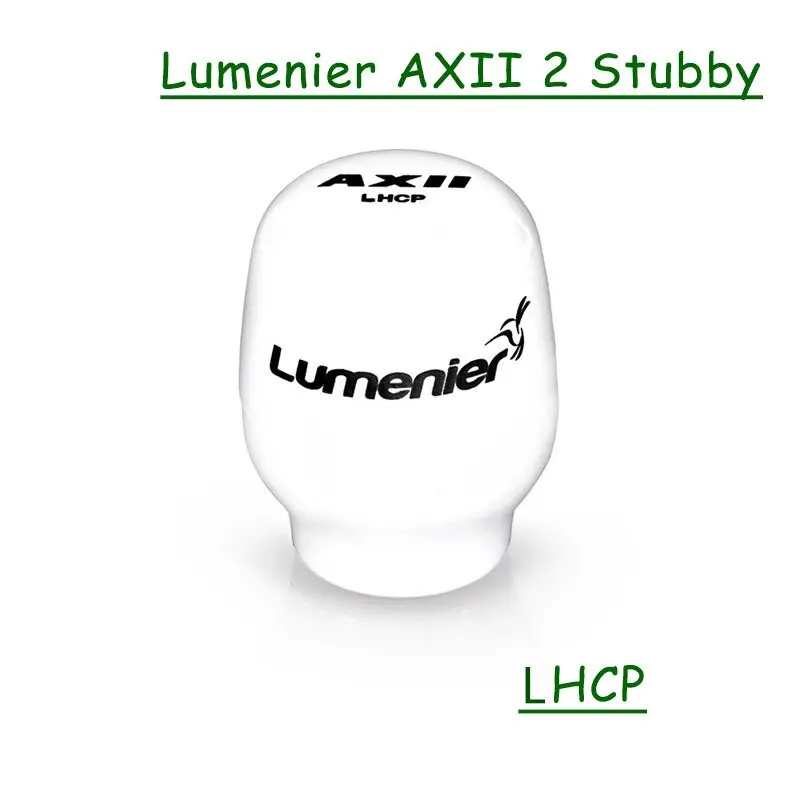

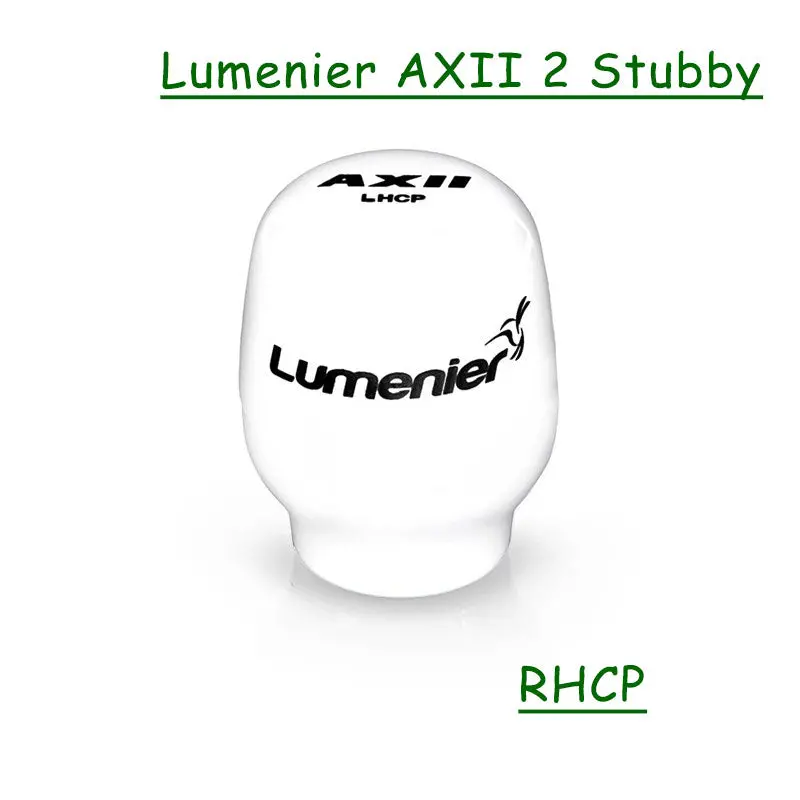

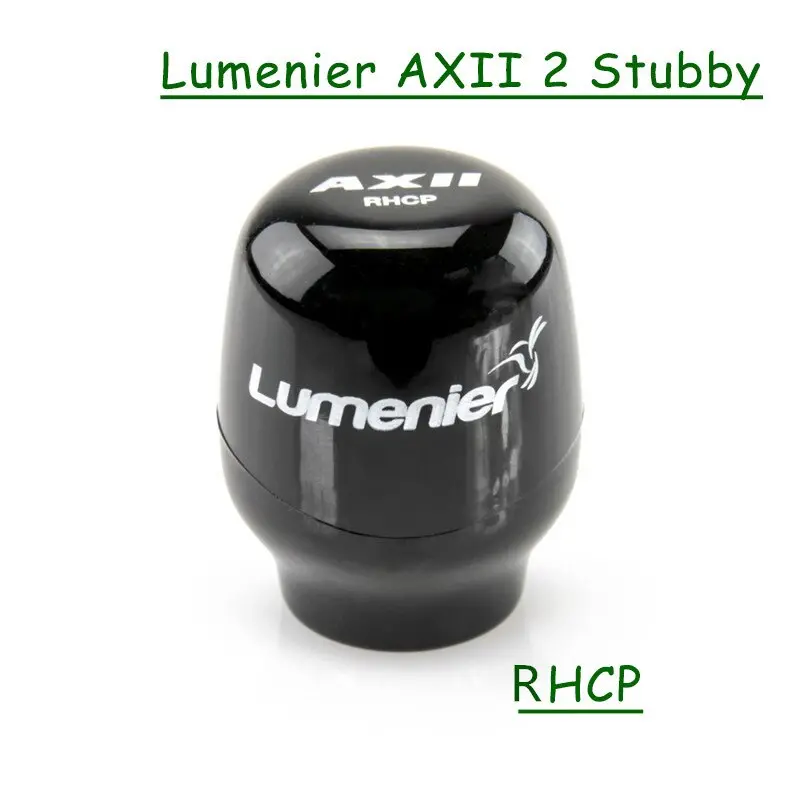

SMA Connector
SWR: <=1.5:1
Weight: 4.8g
Size: 22.1mm x 17.5mm
Cable: None
Connector: SMA
Works great as both a transmitting or receiving antenna
Compatible with other styles of 5.8GHz RHCP/LHCP antennas
Package Included:
1x Lumenier AXII 2 Stubby 5.8GHz Antenna
U.FL Connector
SWR: <=1.5:1
Weight: 2.4g
Size: 77mm x 17mm
Cable: Flexible RG178
Connector: U.FL
Works great as both a transmitting or receiving antenna
Compatible with other styles of 5.8GHz RHCP/LHCP antennas
Package Included:
1x Lumenier AXII 2 U.FL 5.8GHz Antenna

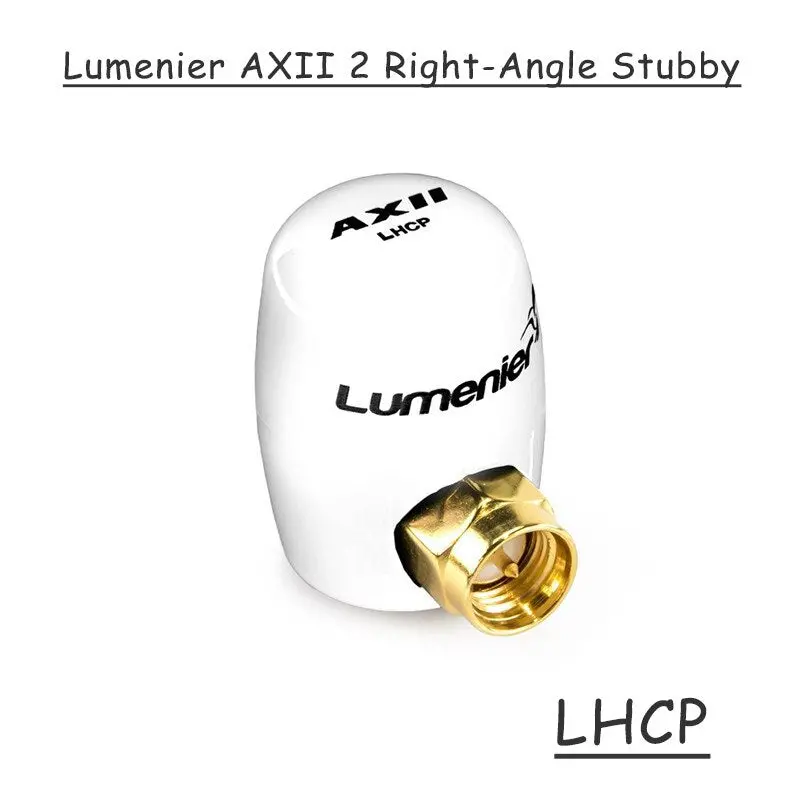

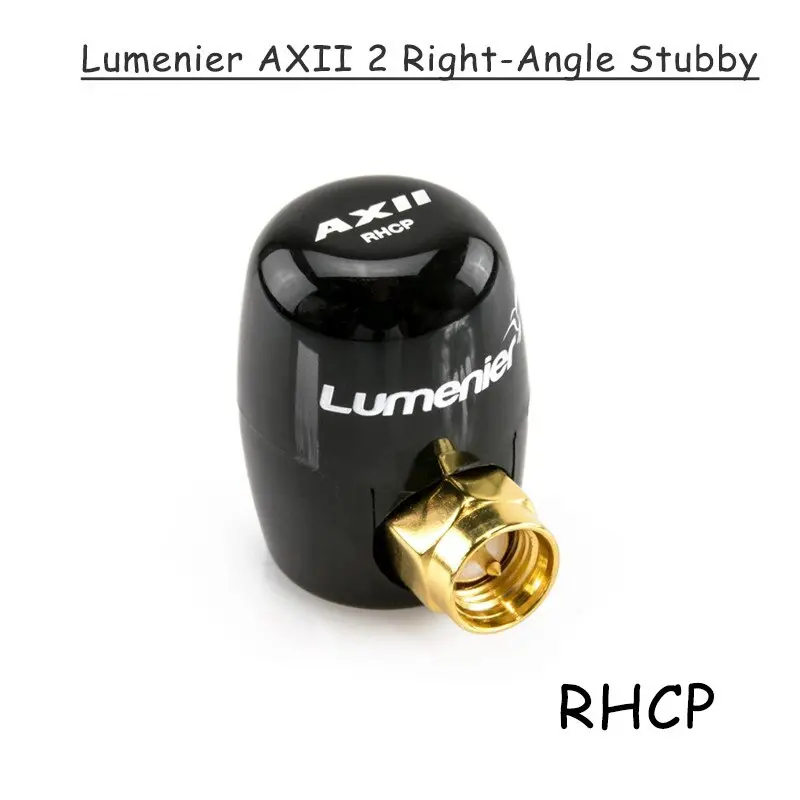

Right-Angle SMA Connector
SWR: <=1.5:1
Weight: 6.7g
Size: 23.6mm x 17.5mm
Cable: None
Connector: Right-Angle SMA
Works great as both a transmitting or receiving antenna
Compatible with other styles of 5.8GHz RHCP/LHCP antennas
Package Included:
1x Lumenier AXII 2 Right-Angle Stubby 5.8GHz Antenna

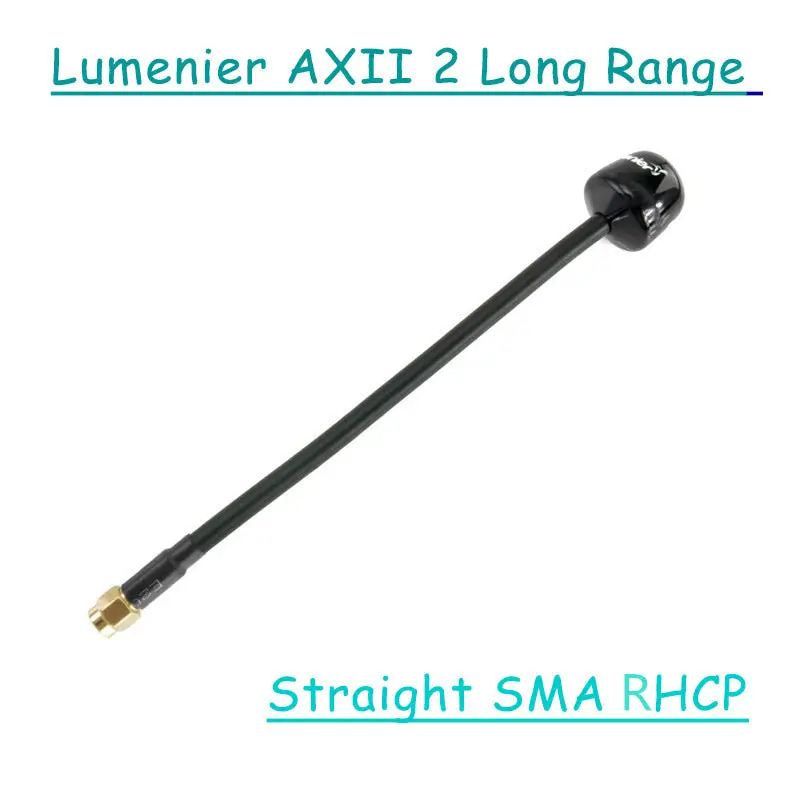

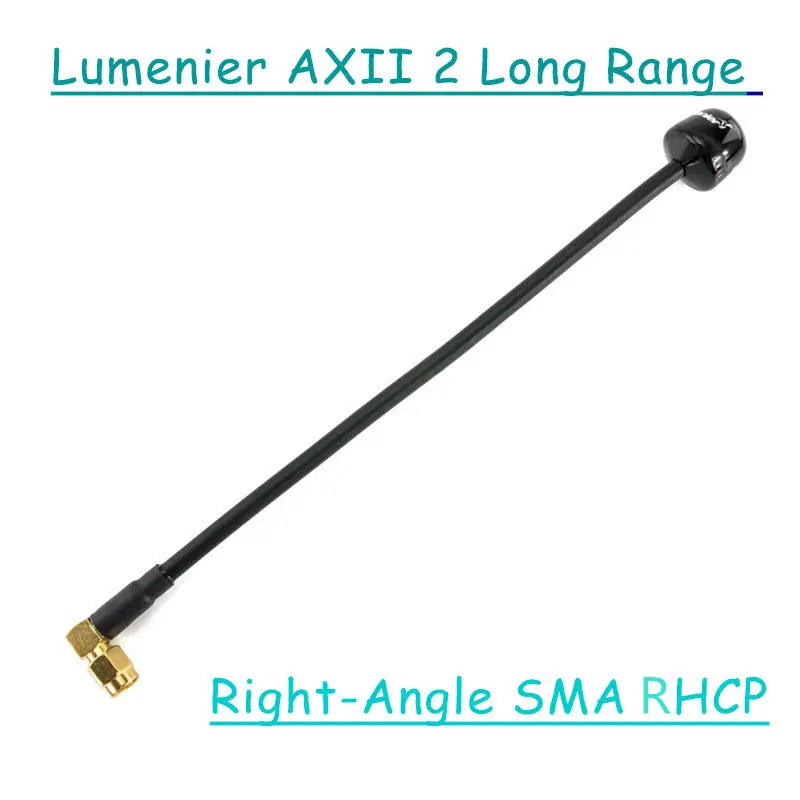

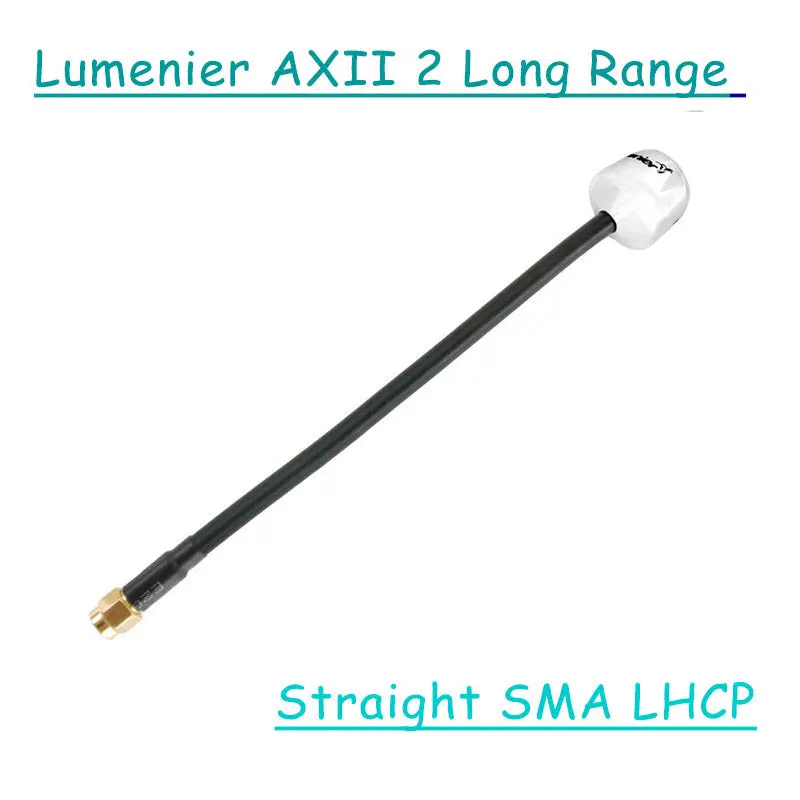

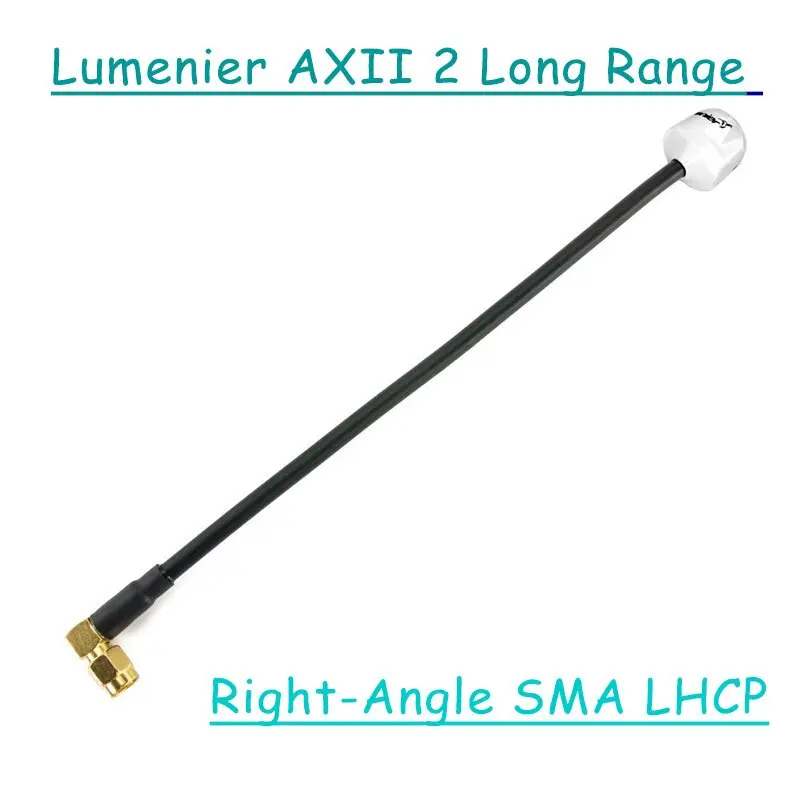

Straight SMA/ Right-Angle SMA Connector
SWR: <=1.5:1
Weight: 10.8g
Size: 125mm x 17.5mm
Cable: Semi-rigid RG402
Works great as both a transmitting or receiving antenna
Compatible with other styles of 5.8GHz RHCP/LHCP antennas
Package Included:
1x Lumenier AXII 2 Long ran&ge 5.8GHz Antenna

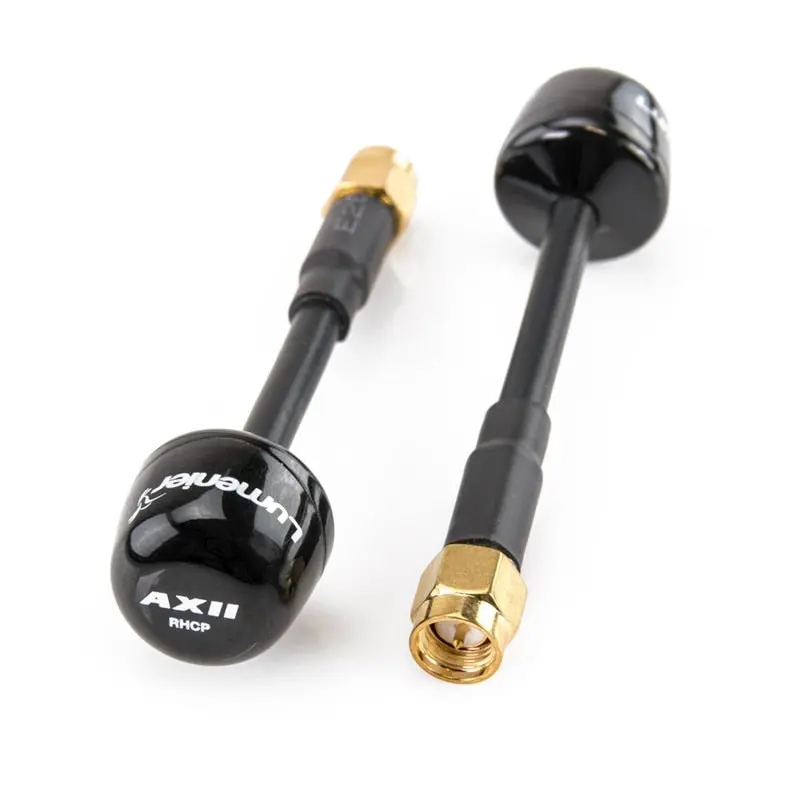

02 SMA Connector
SWR: <=1.5:1
Weight: 7.8g
Size: 73mm x 17.5mm
Cable: Semi-rigid RG402
Connector: SMA
Works great as both a transmitting or receiving antenna
Compatible with other styles of 5.8GHz RHCP/LHCP antennas
Package Included:
2x Lumenier AXII 2 5.8GHz Antennas(RHCP or LHCP)
