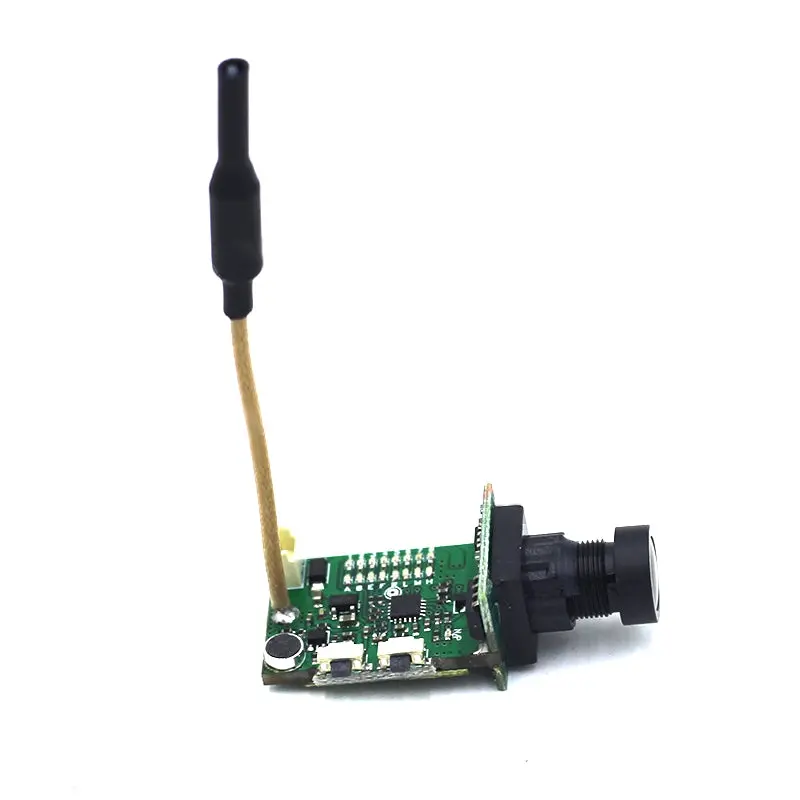

LS-F200KT 5.8GHz 40-Channel 800TVL All-in-One FPV Camera & Transmitter – Adjustable 25/200/600mW Output, 120° FOV

Description

LS-F200KT 5.8G 40CH 800TVL AIO FPV Camera Transmitter 25mW/200mW/600mW VTX 120 Degree FOV
Features: Integrates 800TVL camera, 5.8G 40CH VTX and 3dBi whip antenna Wide angle of view – 120-degree FOV and 150-degree DFOV NTSC / PAL switchable, 25mW / 200mW / 600mW switchable Includes RaceBand, Band R for professional competition   Specifications: Image sensor: 1/3 inch CMOS Horizontal resolution: 800TVL Lens: 150-degree M8 Angle of view: 120-degree FOV, 150-degree FOV Min. illumination: 0.1 lux TV system: NTSC / PAL switchable Audio carrier: yes Output impedance: 50 ohm Output signal strength: 13 + / – 1dBm, 22 + / – 1dBm, 27 + / – 1dBm Number of channels: 40 ( including RaceBand, Band R ) Antenna: 5.8G 3dBi Power supply: 5 + / – 0.5V DC Output power: 25mW / 200mW / 600mW switchable
Frequency Band A 5865 5845 5825 5805 5785 5765 5745 5725 Band B 5733 5752 5771 5790 5809 5828 5847 5866 Band E 5705 5685 5665 5645 5885 5905 5925 5945 Band F 5740 5760 5780 5800 5820 5840 5860 5880 Band R 5658 5695 5732 5769 5806 5843 5880 5917
Recommanded Battery :
3.7V 820mAh : Click Here
3.7V 50mAh : Click Here
Package Included
1 x 5.8G 40CH 800TVL FPV Camera
