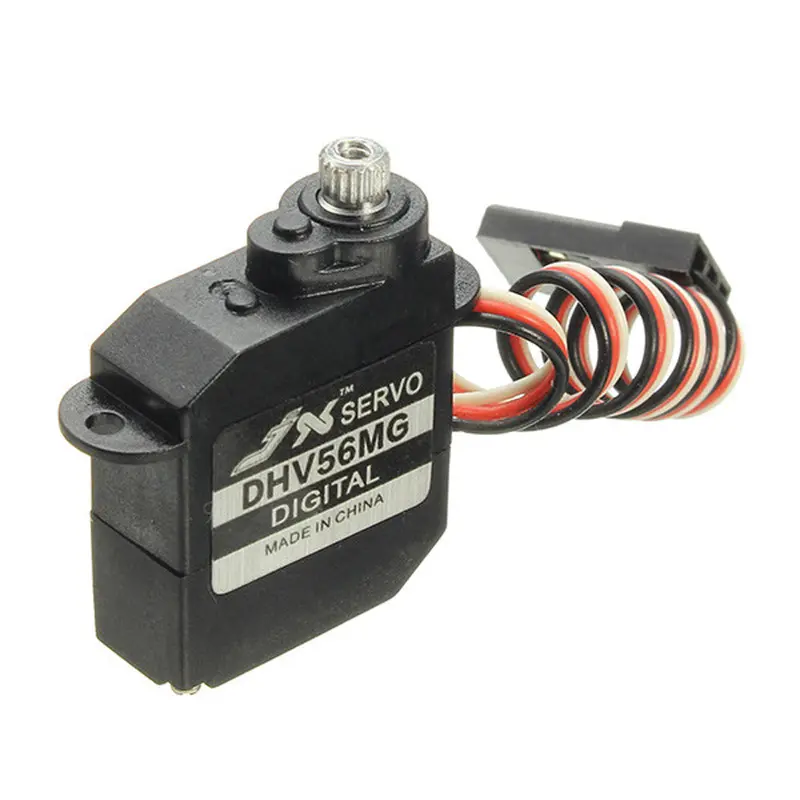

JX Servo DHV56MG 5.6g DS Digital Coreless MG Metal Gear HV Servo 1.2kg 0.10sec 2pcs
Description:
Brand:JX Servo
Item:DHV56MG Servo (high voltage version)
Weight: 5.6g
Dimension: 19.8×8.2×21.5mm
Stall torque: 0.85kg/cm (4.8V),1.05kg/cm (6V),1.2kg/cm (7.4V)
Operating speed: 0.14sec/60degree(4.8v),0.12sec/60degree(6V),0.1sec/60degree(7.4V)
Operating voltage: 4.8~7.4V DC
Servo lead: 150mm length
Servo plug: JR (Fits JR and Futaba)
| Weight(g) | 5.6 |
| A(mm) | 27 |
| B(mm) | 20 |
| C(mm) | 24 |
| D(mm) | 8.2 |
| E(mm) | 28 |
| F(mm) | 16 |
Features:
The JX D56MG servo is great for small gliders and DLGs or just about any other mini airplane using single cell LiPoly batteries (3.7V) and where the ruggedness of a metal gear train is required.
The coreless motor provides excellent holding power and precision at a great price.
Package Included:
2 x JX Servo DHV56MG 5.6g Coreless Servo 0.89kg 0.10sec
