Description

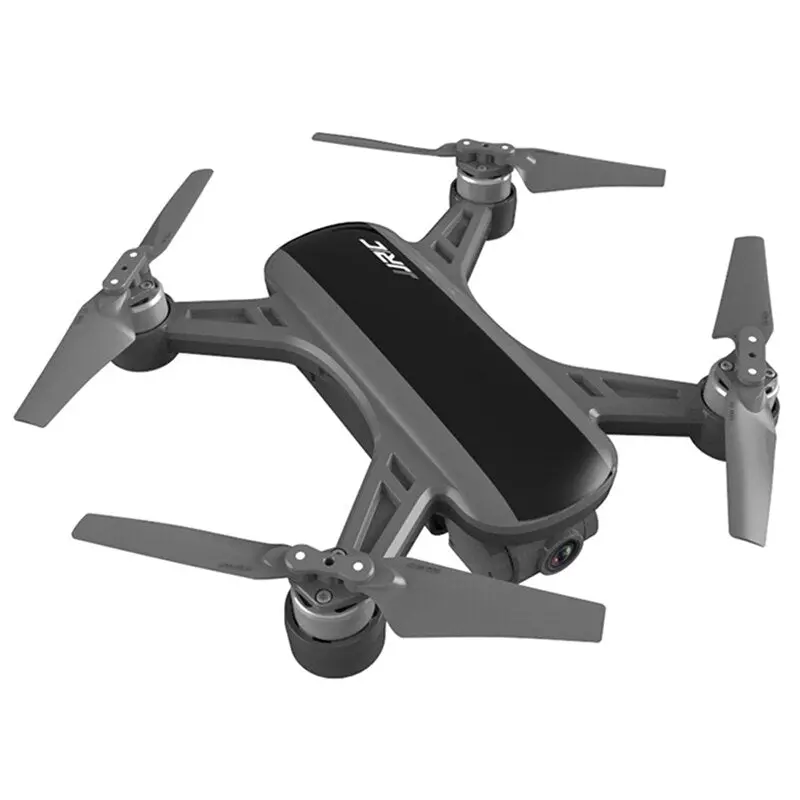

JJRC X9P Heron GPS 5G WiFi FPV With 4K HD Camera Optical Flow Positioning RC Drone Quadcopter RTF
Description:
| Item | Specification |
| JJRC X9P RC Quadcopter |
Brand Name: JJRC Item NO.: X9P Item Name: Heron Drone Wheelbase: 175mm Battery: 11.4V 1000mAh 3S Lipo Volumetric Energy Density: 11.4Wh Charging Time: About 90 Mins(Power adapter using DC 5V 2A) Max Power: 15W Battery Weight: 72g Battery Temperature: 0°C~40°C Flight time: 15 mins Control Range: 3000m Flight Speed: 20km/h Flight Level: 4500m Ascent Speed: 2m/s Descent Speed: 1.5m/s Temperature: 0°C~40°C Charger Voltage: 13.05V Charger Rated Power: 18W GPS Positoning: GPS/ GLONASS Dual-Mode Quadcopter Size: 148 x 145 x 60mm Quadcopter Weight: 258g Battery Size: 80 x 47 x 35.5mm Battery Weight: About 80g Color: Black, White (Optional) Hovering Position: Vertical: +/-0.5m, Horizontal: +/-1m Frequency Range: FCC: 5.150-5.250GHz CE: 5.150-5.250GHz Transmission Power: 5.2GHz FCC: ≤23dBm |
| Camera Gimbal: |
Camera: 4K Stabilizing System: Two-axis(Pitch and Flip) Pitch Angle: -90°C ~ 0°C Image Sensor: 1/2.7 inch Focusing Point: 0.5m to full HD(35mm eqiuvalent focal lenght) ISO Range: Video: 100-3200 Photo: 100-1600 Photo Shooting Mode: Single Shot/Gesture Shot Photo Size: 2560*1440(Main) 1280×720(Subcameras) Video Resolution: FHD:1920*1080(Main) 1280×720(Subcameras) Digital Zoom: Max 50x Support File Format: FAT32(≤32GB) Image Format: JPEG Video Format: MP4 Support SD Card: Micro SD Card(Up to 32GB Storage), Class 10 Memory Card, UHS-1 Memort Card Temperature: 0°C~40°C |
| Optical Flow Positioning System: |
Optical Flow Positioning System: Yes Operating Environment: Textured and rich sunlight(>15lux, normal indoor lighting) Speed Measurement Range: Flight speed, altitude, rich sunlight Altitude Measurement Range: 0.5~5meters |
| WIFI Mode: |
Frequency Range: 5GHz Control Range: 200m(distance) 150m(altitude) (anti-interference and anti-shading) Flight Speed: 10km/h Ascent Speed: 2m/s Descent Speed: 1m/s |
| Real-time Transmission |
APP: EMJOY-FLY Transmission Resolution: 720P/2K(Change) Transmission Range: 1000m Mobile Phone System: IOS 9.0 and above, Android 4.4 and above |
| Remote Controller: |
Frequency Range: 5GHz Control Range: FCC: 1200m CE: 1000m Transmitter Battery: 3.7V 2600mAh 1S 18650 Lipo Current: 1.5A Charging: Micro USB Max Power: 5W Volumetric Energy Density: 9.62Wh Effective Isotropic Radiated Power: FCC: ≤26dBm CE: ≤20dBm SRRC:≤20dBm Mobile Device Rack: Thickness 6.5~8.5mm Lenght: 80mm Mobile device bracket: 11mm(MaxThickness) 83.5mm(Max Length) Battery Weight: 60g Temperature: 0°C~50°C |
Features:
– GPS Positioning: Under GPS mode, when the aircraft receives the signal from satellites, it will position where it is.
– 4K HD Camera Gimbal, 5G WIFI FPV. It is equipped with 4K camera, 4K videos and photos, tuned amazingly to capture pictures and videos from the sky, also with two-axis brushless gimbal,helping the drone record vibration-free footages.
– Optical Flow Positioning: It captures image data with the drone’s bottom camera, then uses the optical flow to improve the smoothness of the control.
– Brushless Motor. It is equipped with the brushless motor, which makes your flight more powerful.
-FPV Real-time Transmission: Instantly see what drone camera records directly on your phone.
– Altitude Hold Mode: In altitude hold mode, the drone maintains a consistent altitude while allowing roll, pitch, and yaw to be controlled normally.
– One Key Takeoff /Landing. One press automatically taking off or landing, the drone will take off or go back to the position where it took off.
– One Key Return. One-key return function makes it easily to find the way home.
– One Key Following Mode. In the mode, the drone will fly following the player to capture the beautiful moment
– Point of Interesting Flight: Choose one point, then the drone will fly around the point in a circle.
-WayPoint Flying: Design your own flight route
-Gesture Shot for Photo and Video: It adopts the gesture recognition system to follow for capturing photo or video using gestures once recognized and identified.
– Tap to Fly. Choose one point, the drone will fly toward the aim straightly.
Function: Forward/backward, Turn left/right,Up/down, Camera, FPV, GPS, Altitude Hold Mode, Continuous Shooting, Headless Mode, One Key Automatic Return, One Key Follow, One Key Landing, One Key Taking Off, Optical Flow Positioning, Point of Interest
Package Included:
1 x JJRC X9P Quadcopter
1 x Remote Controller (Battery Included)
1 x 11.4V 1000mAh Li-ion Battery
1 x Balance Charger
1 x USB Charging Cable
2 x Spare Propeller
1 x L-type Hex Wrench
1 x User Manual
