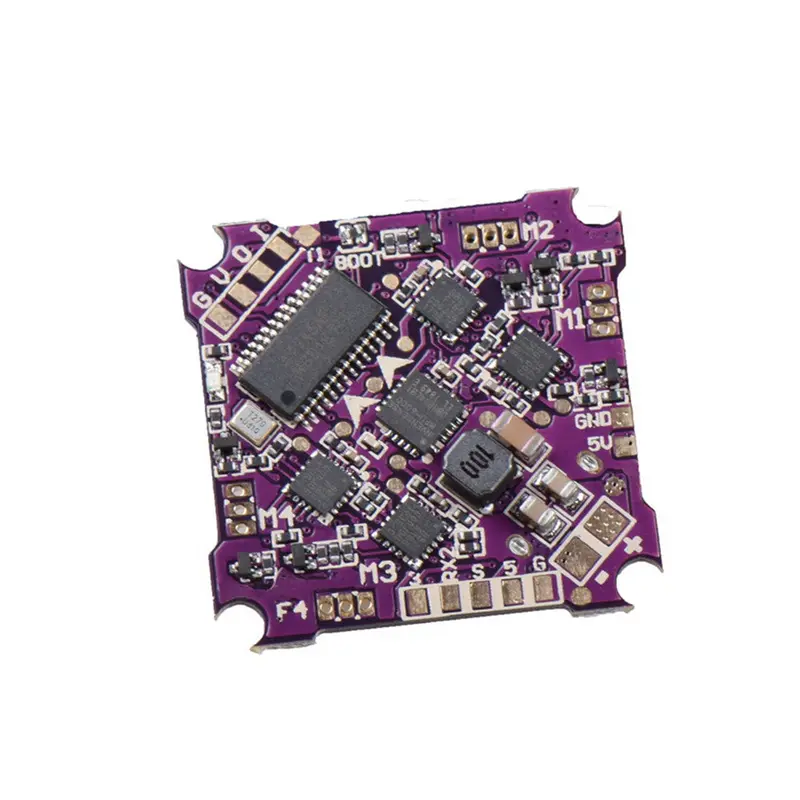

JHEMCU Play F4 All-in-One Flight Controller – Integrated OSD, 5A BLHeli_S ESC, BEC, and Support for 1S–2S Whoop Drones

Description

JHEMCU Play F4 Whoop Flight Controller AIO OSD BEC & Built-in 5A BL_S 1-2S 4in1 ESC for RC Drone
Specification:
Brand Name: JHEMCU
Model: Play F4 Whoop
Item Name: F4 Flight Controller Built-in 5A 4In1 ESC
Board Size: 28.5×28.5mm
Screw Hole Spacing: 24.5×24.5mm ( M3)
Board Weight: 3g
F4 Flight Controller
CPU: STM32F411CEU6
Sensor: MPU6000 Triaxial accelerometer/  Triaxial Gyroscope ( SPI Connection)
Input Voltage: 1-2S Lipo
BEC: 0.5A ( 1S ) ; 1.5A ( 2S )
Built-in OSD interface
– Support BLHeli Suite ESC programming
– Support Voltage Detection
– Support LED Strip
– Support Smart Audio OSD Control
– Support Buzzer
– Support Compatible PPM, SBUS, IBUS, DSM2/DSMX Receiver
5A ESC:
Input Voltage: 1-2S
Con. Current: 5A
Peak Current: 7A ( 2S)
Support BLHeliSuite Programmable
Factory Firmware: S_H_50_REV16_7.HEX
– Support Oneshot125, Multishot, DShot150, DShot300, DShot600, PWM
Package Included:
1x JHEMCU F4 Flight Controller Built-in ESC Module
1x Power Cable
4x 3P*1.25mm Plug Connector
