IRANGEX BM01 DSM2/DSMX Bind Module – Compact Satellite-Compatible Receiver Add-On

Description

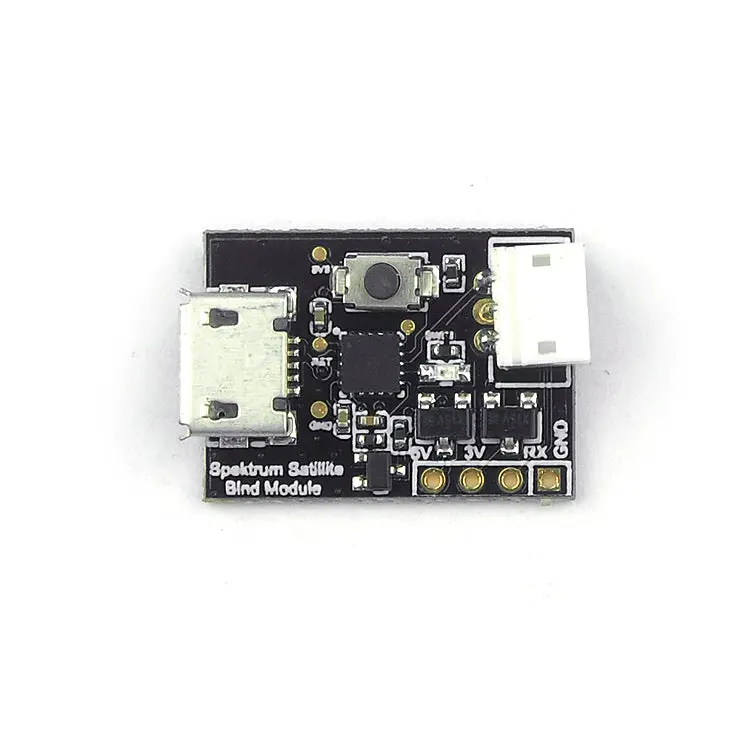

iRangeX BM01 Simple Tiny Bind Module for Spektrum DSM2 DSMX Satellite Receiver





Specification:
Brand name: iRangeX
Mode: BM01
Item name: Bind Module for Spektrum satellite DSM2/X receiver
Size: 21mm*14mm*6mm
Weight: 1.2g
Power Support: 5V usb input
Power Output: 3.3v or 5v
Interface: 1.5mm 3pin Standard Spectrum connector
4pin 2.54 solder pin
Features:
– Compatible Spektrum dsm2/dsmx satellite receiver
– 5V USB power, No additional power required
– Micro and Portable
– Plug usb getting to DSMX binding mode
– Holding the button and plug usb getting to DSM2 binding mode
LED MODE:
1. Flashing once + breathing once, DSMX 2048bit/11ms (default)
2. Flashing twice + breathing once, DSM2 2048bit/11ms (hold button when powered up)
Package Included:
1 x iRangeX BM01 Bind Module
