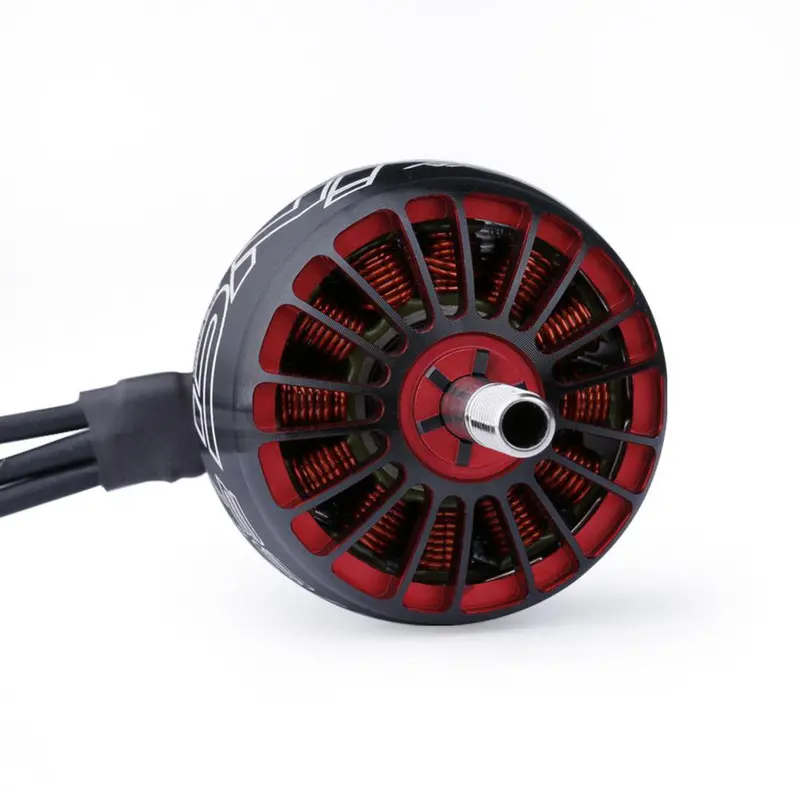

iFlight XING X2814 2814 1100KV Brushless Motor – 6S Long-Range Propulsion for X-Class & DC10 Frame Kits

Description

iFlight XING X2814 2814 1100KV 4S Brushless Motor for DC10 Long Range Frame Kit
Specification:
Brand Name: iFlight
Model: XING X2814
Item Name: 2814 1100KV 4S Brushless Motor
KV: 1100KV
Input Voltage: 4S Lipo
Material: Titanium Alloy
Configuration: 9N12P
Stator Diameter: 28mm
Stator Length: 14mm
Shaft Diameter: 5mm
Motor Dimension: 36x46mm ( DiaxLen)
Cable Length: 150mm
Quantity: One PC
Version: CW Screw Thread
Max. Con. Power: 816W (180S)
Idle Current: 51A@6V
Internal Resistance: 48.6mΩ
Max. Current: 51A (180S)
Application: Compatible with DC10 10 Inch Frame Kit
Pacakge Included:
1x iFlight XING 2814 1100KV Motor
1x bag of Screws
