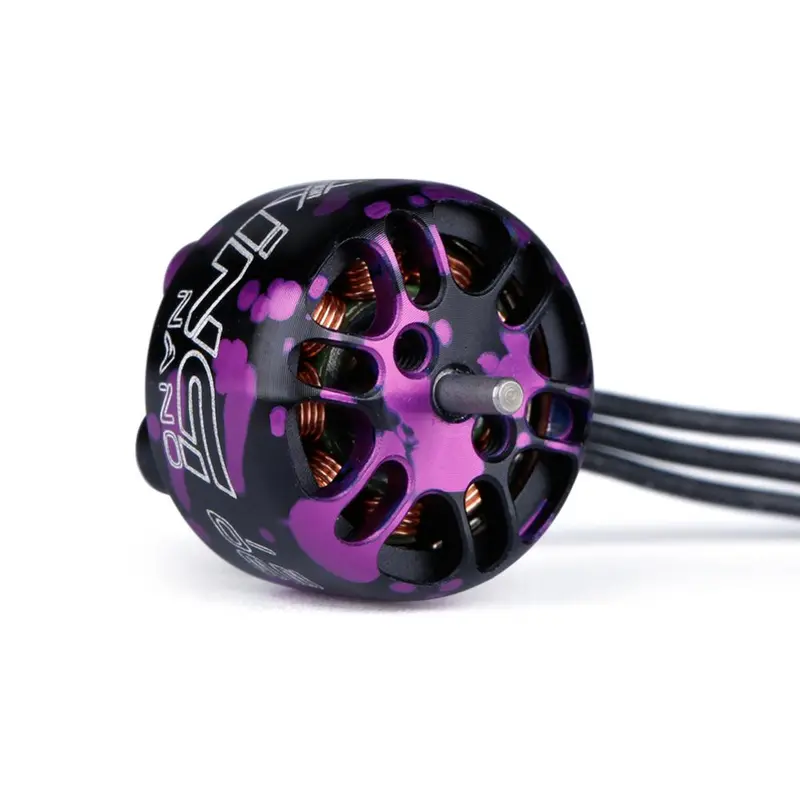

iFlight XING Nano X1206 Brushless Motor (1206, 4500–6500KV, CW Thread) for 2–4S FPV Drones

Description

PRODUCT DESCRIPTION

The new MOTOR XING NANO X1206 designed for micro drone change FPV in nowadays. Super light builds like these just got much nicer since we got SucceX whoop/Micro style all in in one (AIO) with iFlight new toothpick style frame you can build the ultralight microdrone.

Specifications:
Brand name:  iFlight
Item name: XING NANO 1206 Brushless Motor
Voltage: 2S-4S
KV Option: 4500KV/6500KV
Configuration: 12N14P
Bearing: NSK/5*2*2.5
Stator Diameter: 12mm
Stator Length: 6mm
Shaft Diameter: 1.5mm
No.of Cells(Lipo): 2-4S
Weight: 8.5g(with cable)
Motor mount hole: 9*9 φ2mm

Features:
– Unibody Bell
– New technology coating elliptical body
– 1206 brushless micromotors are customized for the 2-4S brushless micro drone.
– Shaft Diameter: 1.5mm, Weight: 8.7g
– Compatible with 2-4S lipo battery

Package included:
1 x XING NANO X1206 Motor
4 x M2*5 screws
2 x M2*7 screws
