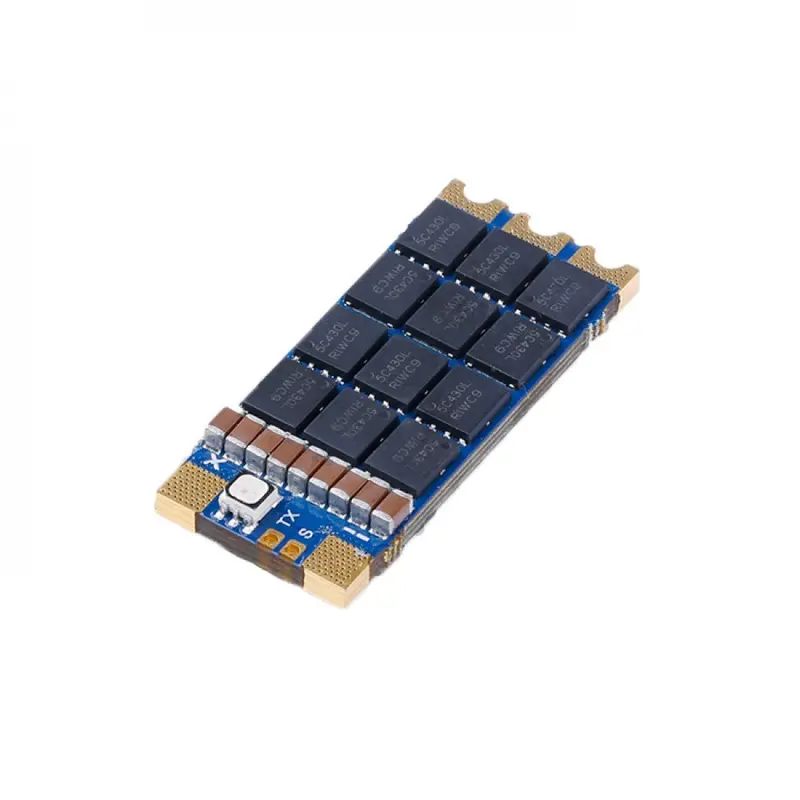

iFlight SucceX X80A 80A BLheli_32 2-8S DShot1200 ESC for X-Class RC Drone FPV Racing
Introduction:
– SucceX X80A 32bit BLHeli Dshot1200 Single ESC was designed to give your motors smooth power
with great stability and durability.
– The 32bit 48mHz STM32F051K66 MCU and total 240UF Low ESR capacitors
bring faster-responding speed and smoother flying experience. – The optional heatsink effectively pulls heat away from the MOSFET, protecting the critical parts of your ESC.40*17mm size,
rational layout design with high extended solder pads ensured easy fixes or adjustments.
Specification:
Dimension: 40*17mm Weight:8.3g without wire Supports 2-8S lipo input STM32F051K66 MCU, 48Mhz Runs BLHELI 32.X Firmware Capacitance: total 240UF Low ESR Telemetry noutput BEC: No Supports: DShot DShot150/300/600/1200/MultiShot/OneShot PWM Drive Target: iFlight-BL32-PRO
Support: – Current Sensor – Telemetry output – Motor Timing – Brake on Stop
Features: – 2-8S input (max 10S 50V) – 48mHz running speed integrated 3 in 1 STM32F051K66; – 80A 8 layers 4OZ copper PCB, better operating load capacity; – Total 420UF Low ESR capacitors, lower ripple and more stable; – Top grade NTMFS5C430NL MOSFET, stable and reliable; – 1 * 3528 LED for power- on display; – Rational layout, large soldering pad, countersinks and semicircle orifices enable each layer to be energized after power-on.
Package Included:
1x SucceX X80A ESC 1x 50V 470uf capacitor 1x Set of Power cables & ESC signal wires
